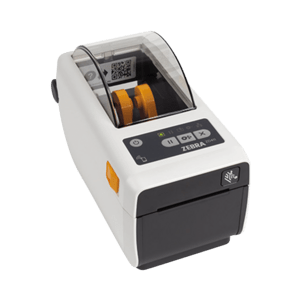

Zebra ZD411-HC healthcare desktop label printer, white, 203 dpi, USB + Ethernet (ZD4AH22-D0EE00EZ) – front view

ZD611 & ZD411 Healthcare Desktop Printers | Zebra

ZD411/ZD611 Automatic Media Calibration | Zebra

Zebra ZD411-HC (ZD4AH22-D0EE00EZ)

Name: Zebra ZD411-HC (ZD4AH22-D0EE00EZ)
Brand: ZEBRA
SKU: ettzd411hc
Availability: InStock

423,31 € +VAT

Product variants

Resolution (dpi)

203300

Wireless

NoneWi-Fi 6 + Bluetooth

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

Available: In Stock
Vendor: ZEBRA
Type: Desktop Printers
Barcode: ZD4AH22-D0EE00EZ
Collections: Desktop Label Printers , Healthcare & Laboratory Label Printers , Label Printers , Zebra ZD411

📄 Download Product Brochure (PDF)

ZEBRA

Zebra ZD411-HC (ZD4AH22-D0EE00EZ)

423,31 € +VAT

Description

Description

The Zebra ZD411-HC (ZD4AH22-D0EE00EZ) is a compact 2-inch direct thermal healthcare desktop label printer for hospitals, laboratories and pharmacies – specimen and prescription labels and patient wristbands. It prints at 203 dpi with a maximum print width of 56 mm and up to 152 mm/s, takes 127 mm label rolls and connects via USB, USB Host and Ethernet. With ZPL and EPL support, Link-OS and Zebra Print DNA it slots straight into existing Zebra fleets as a modern successor to the ZD410 and LP/TLP 2824 Plus.

📦 What's in the box – ZD4AH22-D0EE00EZ

✅ Zebra ZD411-HC printer – White, USB + Ethernet
✅ Power supply – medical-grade power supply, IEC 60601-1 certified
✅ Power cords (EU + UK) – EU (Schuko) and UK (type G) – both in the box
✅ USB cable – USB A-to-B, ready to connect to your PC
✅ Quick start guide + regulatory guide – drivers, utilities and manuals are a free download from Zebra
❌ Labels – NOT included – choose compatible Zebra labels below

✅ Ready to print out of the box: power supply, power cords and USB cable are included – just add labels.

💡 Useful extras: the Zebra P1117258-030 dispenser (peeler) kit or the Zebra P1117258-031 cutter kit – both field-installable; the Zebra P1080383-603 battery with the Zebra P1080383-602 battery base for cordless printing on carts; the Zebra P1112640-017C Wi-Fi + Bluetooth module for wireless printing; the Zebra P1112640-054 adapter kit for 38, 51 and 76 mm label cores; Zebra 105950-035 cleaning pens for the printhead.

Key Features

203 dpi (8 dots/mm) – sharp barcodes at up to 152 mm/s (6 ips)
Healthcare design – disinfectant-ready, UV-resistant white plastics, sealed buttons and an IEC 60601-1 medical-grade power supply
Direct thermal printing – no ribbon needed, simple and low-cost to run
Media from 15 to 60 mm wide, rolls up to 127 mm in diameter on 12.7 or 25.4 mm cores (38–76 mm with adapters), fanfold via the rear slot
Movable full-width black-mark sensor and multi-position gap sensor – labels, tags, receipt paper and wristbands
Wired network ready: USB 2.0, USB Host and 10/100 Ethernet; Wi-Fi + Bluetooth module can be added later
ZPL II and EPL 2 compatible – keep your existing label formats; Print DNA emulations for other printer languages
5 status icons and a 3-button interface, Print Touch (NFC) tap-to-pair and Bluetooth LE setup with the Zebra Printer Setup app
Field-installable options: dispenser (peeler), cutter, Ethernet or serial card, Wi-Fi + Bluetooth module and a battery for cart use
Print DNA with PrintSecure and Printer Profile Manager Enterprise for remote management; ENERGY STAR certified

Ideal Applications

Specimen collection and laboratory labels
Prescription and pharmacy labels
Patient ID wristbands
Lab and blood-bank management
Medical asset labelling
Patient records and charts

All ZD411-HC Versions

The highlighted row is the version you are currently viewing.

Part Number	Resolution	Interfaces	Wireless
ZD4AH22-D0EE00EZ (this version)	203 dpi	USB + Ethernet	–	Viewing
ZD4AH23-D0EE00EZ	300 dpi	USB + Ethernet	–	View product
ZD4AH22-D0EX02EZ	203 dpi	USB	Wi-Fi 6 + Bluetooth	View product

Technical Specifications

Part Number	ZD4AH22-D0EE00EZ
Model	Zebra ZD411-HC (ZD400 Series)
Printer Type	2-inch healthcare desktop label printer
Print Method	Direct thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 152 mm/s (6 in/s)
Max Print Width	56 mm (2.2 in)
Media Width	15–60 mm (0.585–2.36 in)
Label Length	6.35–991 mm (0.25–39 in)
Roll Diameter	Max. 127 mm (5 in) outer diameter
Core Size	12.7 mm (0.5 in) and 25.4 mm (1 in) standard; 38.1, 50.8 and 76.2 mm with optional adapters (P1112640-054)
Media Thickness	0.08–0.19 mm
Media Type	Roll-fed or fanfold; die-cut or continuous labels with or without black mark, tag stock, continuous receipt paper, wristbands
Sensors	Full-width movable reflective / black-mark sensor; multi-position transmissive / gap sensor
Interfaces	USB 2.0, USB Host, 10/100 Ethernet (factory-installed)
Wireless	Bluetooth Low Energy 5 for setup with the Zebra Printer Setup app only; optional Wi-Fi + Bluetooth module (P1112640-017C)
NFC	Print Touch (NFC) tag – tap to pair and open help pages
Memory	512 MB Flash, 256 MB SDRAM (64 MB Flash / 8 MB SDRAM user available)
Printer Languages	ZPL II, EPL 2, XML, ZBI, PDF Direct; Print DNA printer emulations; Link-OS
Fonts / Character Sets	16 resident expandable ZPL II bitmap fonts, 2 scalable ZPL fonts, 5 EPL2 fonts, native OpenType support, Unicode
Barcodes	1D: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13 (+2/+5), Plessey, Postnet, Standard / Industrial / Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code; 2D: Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF, Aztec
Display	5 status icons, 3-button user interface (no LCD)
Media Options	Tear-off (standard); field-installable dispenser / peeler with label-present sensor (P1117258-030) and cutter (P1117258-031)
Drivers & Software	Print DNA (PrintSecure, Printer Profile Manager Enterprise, Zebra Printer Setup app), ZebraDesigner Essentials (free), Windows drivers
Mobile Printing	Android, iOS, Windows
Power Supply	Auto-detecting 100–240 V AC, 50–60 Hz, IEC 60601-1 certified medical-grade power supply; ENERGY STAR, Efficiency Level VI; optional 2750 mAh battery
Healthcare Features	White healthcare colour scheme; disinfectant-ready, easy-to-clean plastics; sealed button interface; UV-resistant housing
Dimensions (W × D × H)	115 × 220 × 151 mm
Weight	1.0 kg
Color	White
Operating Temperature	4.4 °C to 41 °C
Storage Temperature	−40 °C to 60 °C
Humidity	10–90% non-condensing (operating)
Certifications	IEC 62368-1, EN 55032 Class B, EN 55035, EN 300 328, EN 301 893, FCC Class B, CE; RoHS, REACH
Warranty	24 months (Zebra ZD400 Series standard warranty)
In the Box	Zebra ZD411-HC printer (white), IEC 60601-1 medical-grade power supply, EU and UK power cords, USB cable, quick start guide, regulatory guide – labels NOT included

The Zebra ZD411-HC is part of Zebra's ZD400 Series of 2- and 4-inch desktop printers. Matching Zebra labels and accessories are listed on this page. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
