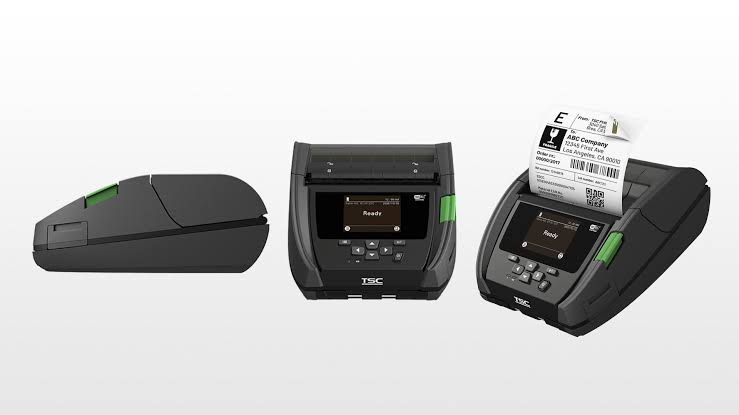

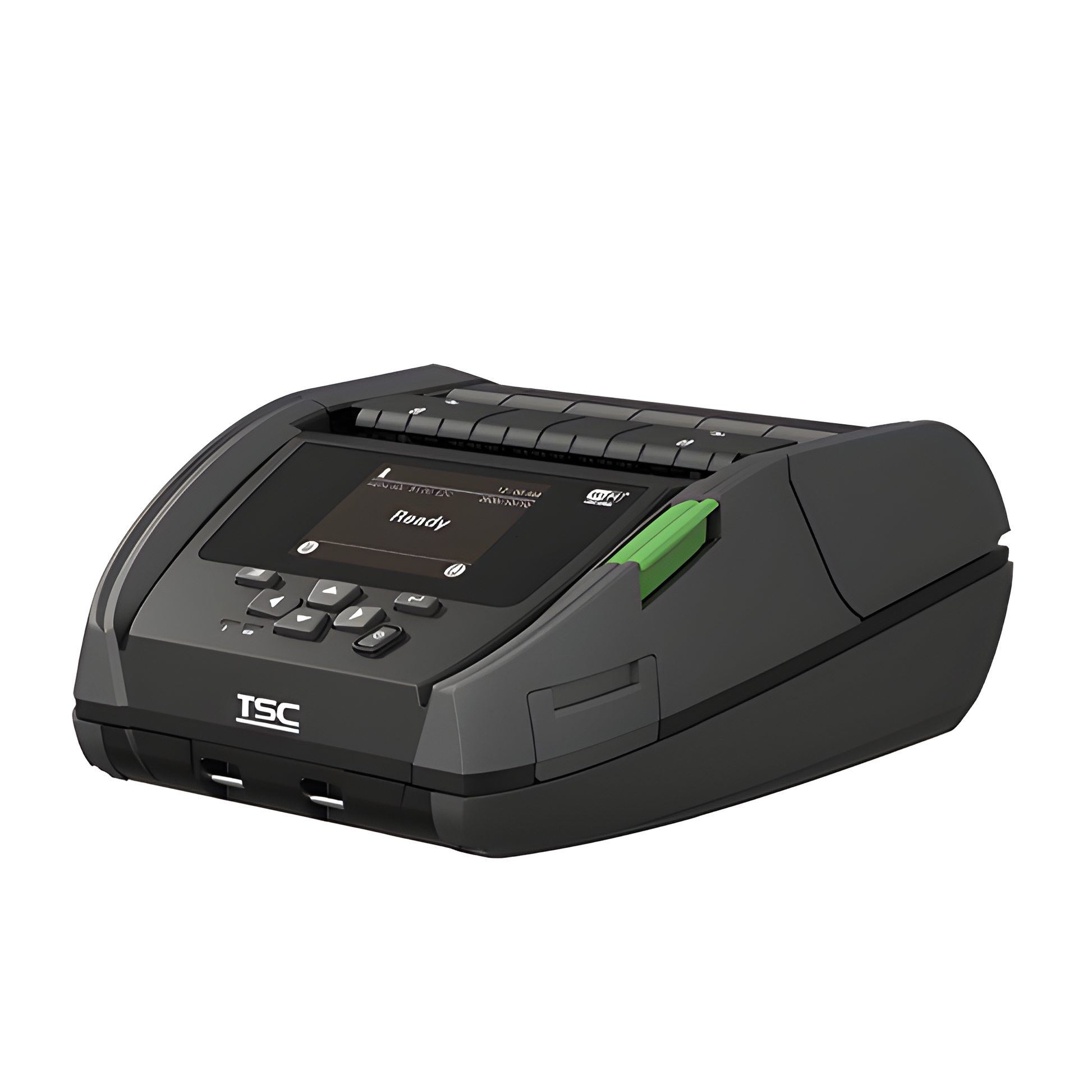

The TSC Alpha-40L is a rugged 4-inch mobile label printer for enterprise professionals on the move – built for shipping and receiving, direct store delivery, warehouse and manufacturing labelling and retail shelf-edge work. It prints sharp 203 dpi direct thermal labels, tags and receipts up to 104 mm wide at up to 127 mm/s, takes rolls up to 67 mm in diameter, and its 6200 mAh smart battery lasts a full shift. IP54 sealing, 1.8 m drops and MIL-STD-810G vibration ratings keep it working on forklifts and in delivery vans. This version, A40LR-A001-0002, connects via MFi Bluetooth 5.0, USB-C and NFC tap-to-pair and has a built-in UHF RFID encoder that encodes and prints RFID labels in one pass; battery, power adapter and belt clip are included.
📦 What's in the box – A40LR-A001-0002
- ✅ TSC Alpha-40L printer – Black, Bluetooth + USB-C + NFC, built-in UHF RFID encoder
- ✅ Battery – 6200 mAh, 7.4 V Li-ion smart battery – removable, with charge and health monitoring
- ✅ Power adapter (charger) – charges the battery inside the printer – with EU power cable
- ✅ Belt clip – for hands-free carrying
- ✅ Media core adaptors – for 19.1 mm (0.75") and 38.1 mm (1.5") label cores
- ✅ Quick start guide – drivers, utilities and manuals are a free download from TSC
- ❌ USB-C cable – NOT included – not needed for Bluetooth printing
- ❌ Labels / paper rolls – NOT included
- ❌ Protective case – NOT included – optional protective case with shoulder strap (2.5 m drop protection)
✅ Ready to print: the battery and a way to charge it are included – charge the printer, pair it with your smartphone, tablet or mobile computer and start printing. Only labels or paper rolls need to be ordered separately.
💡 Useful extras: a spare battery (TSC OP-P-SB-001-0001); an external battery charger (TSC OP-P-BC1-001-2001 (1-slot) or TSC OP-P-BC4-001-2001 (4-slot)); a docking cradle that charges the printer without removing the battery (TSC OP-P-DC1-001-2001 (1-slot) or TSC OP-P-DC4-001-2001 (4-slot)); the TSC OP-P-EC-002-0001 protective case with shoulder strap; the TSC SP-COM-0029 USB-A to USB-C cable for wired printing and set-up; the TSC OP-P-VM-002-0001 vehicle mount adaptor for forklifts and vans.
Key Features
- 4-inch print width – 104 mm print width on media from 50.8 to 112 mm wide: shipping and pallet labels, pick labels, shelf labels, tags and receipts.
- UHF RFID encoding – RAIN UHF (EPC Gen2 v2 / ISO 18000-63) encoder with fixed antenna, automatic RFID label calibration and overstrike of failed tags; works with labels from 15.9 mm in length.
- MFi Bluetooth 5.0 + NFC – Apple-certified Bluetooth for iOS and Android smartphones and mobile computers, NFC tap-to-pair and USB-C for set-up.

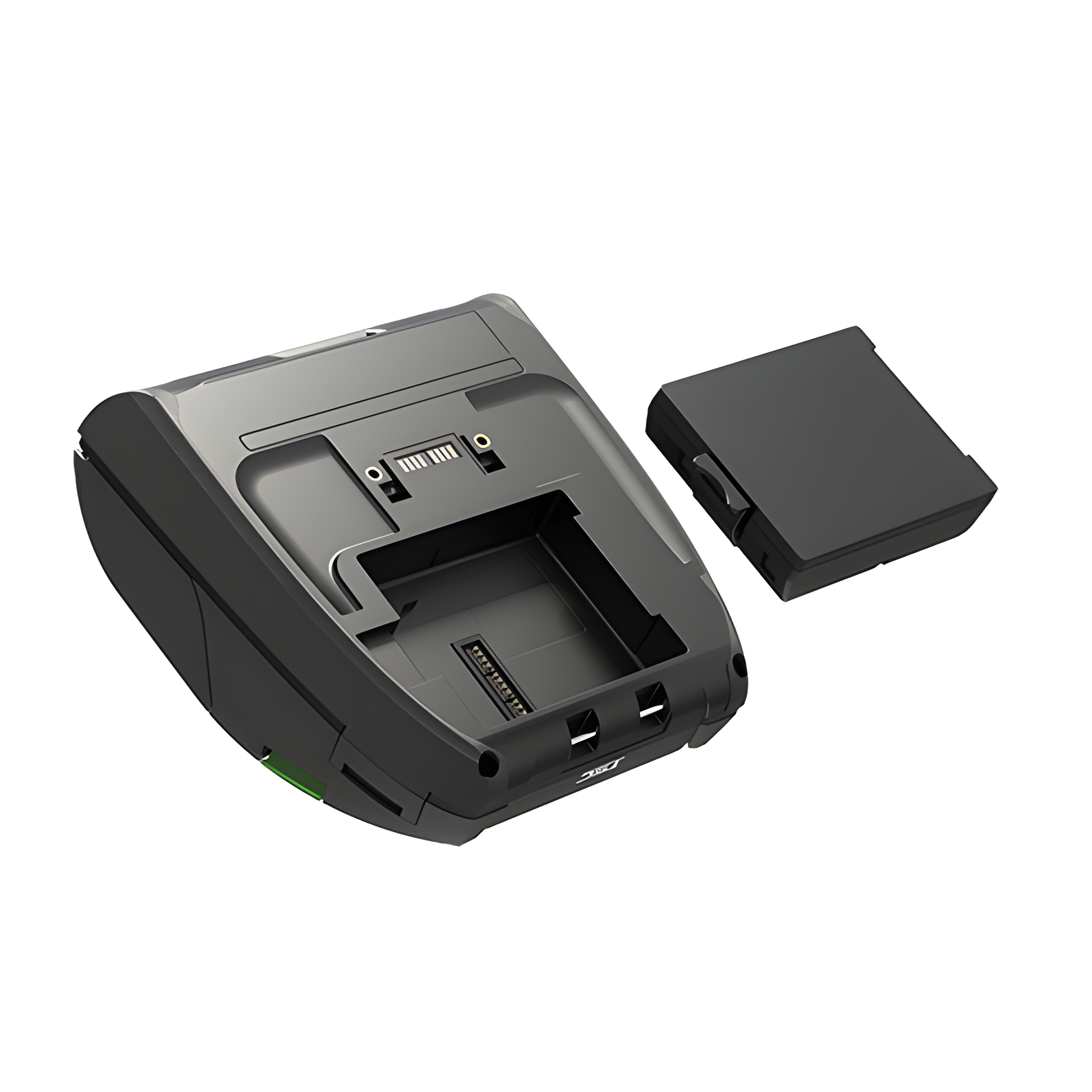

- Full-shift smart battery – 6200 mAh, 7.4 V Li-ion smart battery with charge-cycle and health monitoring in TSC Console and SOTI Connect; 1- and 4-slot battery chargers and docking cradles are available.
- Rugged for the road – IP54 dust and water resistance, 1.8 m drops (2.5 m with the protective case), 1 m tumbles and MIL-STD-810G drop and vehicle-vibration compliance.

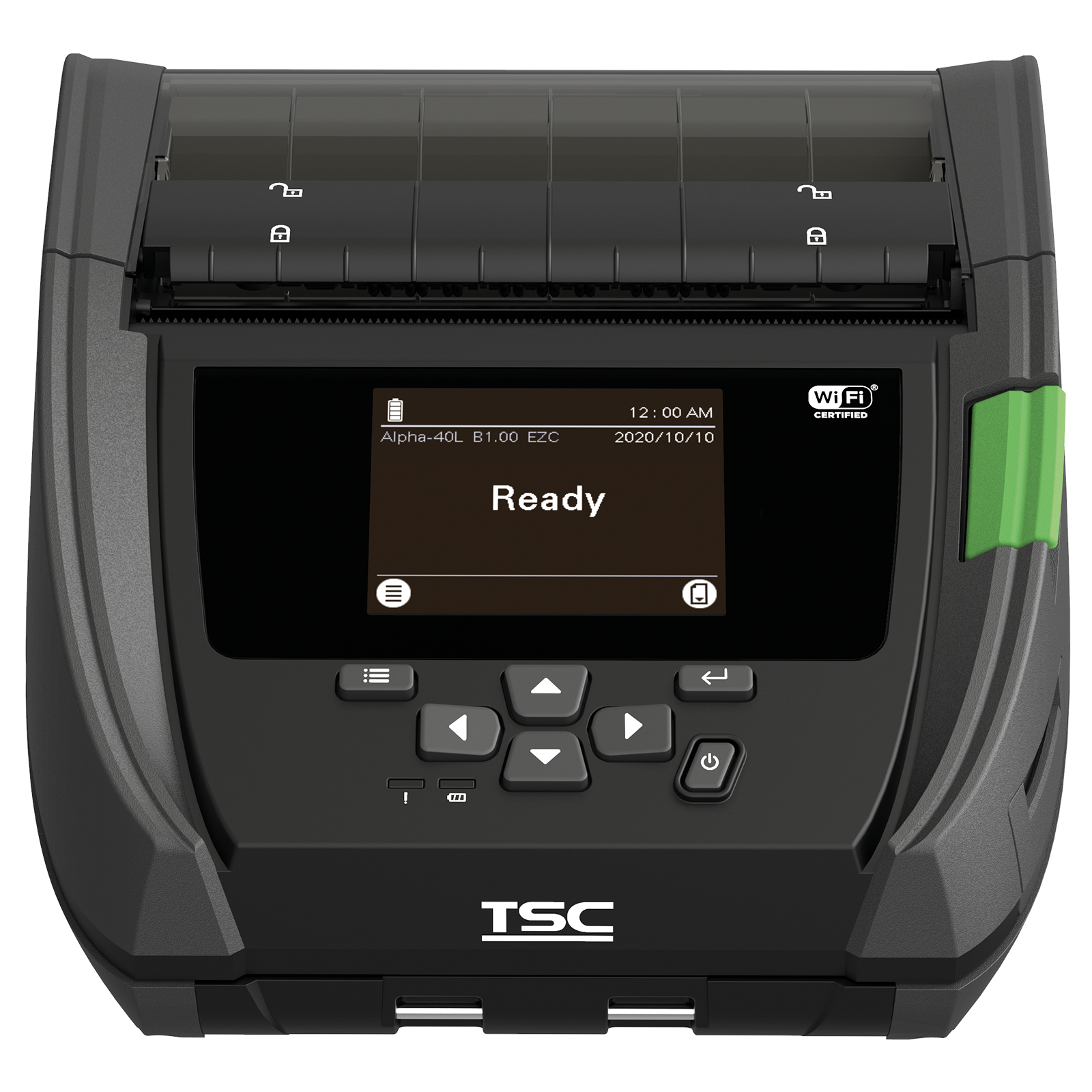

- Colour display, easy loading – 2.3-inch colour LCD with 7 buttons, drop-in media loading and TSC Sense Care print-head and battery monitoring.
- Easy integration – TSPL-EZC with EPL2, ZPL2 and CPCL emulation or ESC/POS, SDKs for Android, iOS and Windows, an OPOS driver and the TSC Mobile Utility app.
- Vehicle-ready – vehicle mount adaptor for RAM® mounts and 12–24 V / 12–60 V vehicle power options for forklifts and vans.
Ideal Applications

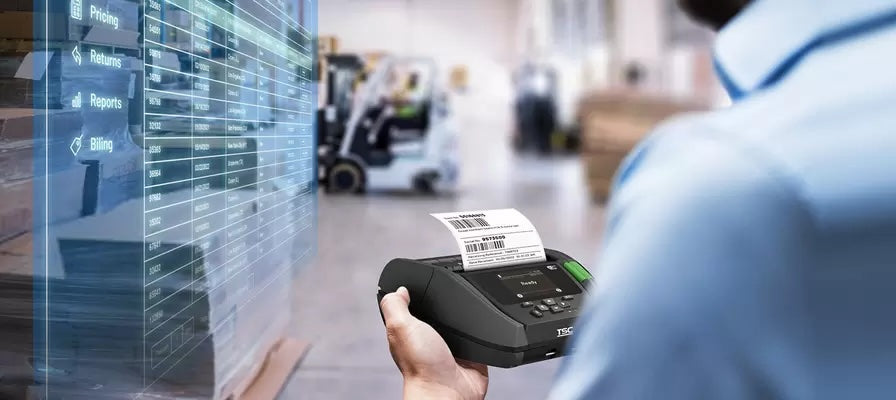

- Shipping, receiving and cross-docking labels
- Direct store delivery, proof of delivery and route sales
- Warehouse picking, pallet and inventory labels from forklifts
- Retail shelf labelling and supermarket re-labelling
- Manufacturing – raw material, work-in-progress and asset labels
- RFID tagging of assets, returnable containers and retail goods
All TSC Alpha-40L Versions
The highlighted row is the version you are currently viewing.
| Part Number | Connectivity | Media | RFID | |
|---|---|---|---|---|
| A40L-A001-0002 | Bluetooth + NFC | Standard | — | View product |
| A40L-A001-1002 | Wi-Fi + Bluetooth + NFC | Standard | — | View product |
| A40L-A001-0012 | Bluetooth + NFC | Linerless | — | View product |
| A40L-A001-1012 | Wi-Fi + Bluetooth + NFC | Linerless | — | View product |
| A40LR-A001-0002 (this version) | Bluetooth + NFC | Standard | UHF RFID | Viewing |
| A40LR-A001-1002 | Wi-Fi + Bluetooth + NFC | Standard | UHF RFID | View product |
Technical Specifications
| Part Number | A40LR-A001-0002 |
|---|---|
| Model | TSC Alpha-40L RFID |
| Printer Type | Mobile label and receipt printer, 4-inch |
| Print Method | Direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 127 mm/s (5 in/s) |
| Max Print Width | 104 mm (4.09 in); max. print length 2,794 mm |
| Media Width | 50.8–112 mm (2–4.4 in) with liner |
| Label Length | 15.9–2,794 mm (min. RFID tag pitch 15.9 mm) |
| Roll Diameter | Max. 67 mm (2.64 in) outer diameter |
| Core Size | 25.4 mm (1 in); 19.1 mm (0.75 in) and 38.1 mm (1.5 in) with the included adaptors |
| Paper Thickness | 0.06–0.16 mm |
| Media Types | UHF RFID labels and tags, die-cut labels, black-mark media, receipt paper, fanfold, continuous (outside wound) |
| Sensors | Reflective (black mark), transmissive (gap), head-open |
| Media Options | Tear-off; RFID encoding with overstrike of failed tags |
| Interfaces | USB 2.0 Type-C (communication only) |
| Wireless | Apple MFi Bluetooth 5.0 |
| NFC | Passive NFC tag – tap-to-pair |
| RFID | RAIN UHF passive, EPC Gen2 v2 / ISO 18000-63, 865–928 MHz (global), fixed-position antenna, automatic RFID calibration, good / overstruck tag counters |
| Printer Languages | TSPL-EZC (EPL2, ZPL2, CPCL emulation) or ESC/POS; RFID: TSPL, ZPL2 |
| Fonts / Character Sets | 8 alphanumeric bitmap fonts; Monotype CG Triumvirate Bold Condensed scalable font |
| Barcodes | 1D: Code 128 (UCC, subsets A/B/C), EAN-128, Interleaved 2 of 5, Standard / Industrial 2 of 5, Code 39, Code 93, EAN-13, EAN-8, UPC-A, UPC-E, EAN/UPC add-on, Codabar, Postnet, MSI, Plessey, China Post, ITF-14, EAN-14, Code 11, Telepen, Planet, Code 49, Deutsche Post Identcode / Leitcode, LOGMARS; 2D: Codablock F, GS1 DataBar, GS1 DataMatrix, MaxiCode, Aztec, PDF417, MicroPDF417, QR Code, TLC39 |
| Memory | 128 MB SDRAM, 128 MB Flash, microSD slot (up to 32 GB); 32-bit RISC CPU; real-time clock |
| Display | 2.3-inch colour LCD (320 × 240), 7 buttons, 2 status LEDs |
| Drivers & Software | TSC Console, SOTI Connect, OPOS driver, SDKs for Windows, Windows Mobile (CE), Android and iOS; TSC Mobile Utility app |
| Mobile Printing | Android, iOS (MFi certified), Windows |
| Battery | 6200 mAh, 7.4 V Li-ion smart battery, removable (included); spare battery OP-P-SB-001-0001 |
| Charging | In-printer with the supplied power adapter; 1-slot / 4-slot battery chargers (OP-P-BC1-001 / OP-P-BC4-001); 1-slot / 4-slot docking cradles (OP-P-DC1-001 / OP-P-DC4-001); 12–24 V and 12–60 V vehicle power adapters |
| Environmental Sealing | IP54 without case (paper path excluded) |
| Drop Specification | 1.8 m (2.5 m with protective case); 1.0 m tumble; MIL-STD-810G drop and vehicle vibration |
| Dimensions (W × D × H) | 160 × 79 × 191 mm |
| Weight | 1,025 g (with battery) |
| Color | Black |
| Operating Temperature | −20 °C to 50 °C, 10–90% non-condensing (charging 0–40 °C) |
| Storage Temperature | −30 °C to 70 °C, 10–90% non-condensing |
| Warranty | 24 months (battery 12 months; print head 25 km or 12 months, platen 50 km or 12 months) |
| In the Box | TSC Alpha-40L printer (Bluetooth + USB-C + NFC, UHF RFID encoder, black), 6200 mAh 7.4 V Li-ion smart battery, power adapter with EU power cable, belt clip, media core adaptors (19.1 / 38.1 mm), quick start guide – USB-C cable, labels and protective case NOT included (order separately) |
Which version should you choose? Bluetooth versions (…-0002) pair directly with a smartphone or handheld, Wi-Fi + Bluetooth versions (…-1002) also print over the network. Choose A40L-A001-0012 / -1012 for linerless labels and A40LR-A001-0002 / -1002 for UHF RFID encoding. Prefer a lighter 3-inch model? See the TSC Alpha-30L. Compare other models in our Mobile Label Printers collection or contact our team for volume pricing.
Available Versions
| Part Number | Wireless | RFID | Linerless | Price | ||
|---|---|---|---|---|---|---|
 |
A40L-A001-0002 | Bluetooth | No | No | 872,24 €+VATIn Stock | |
 |
A40L-A001-0012 | Bluetooth | No | Yes | 913,19 €+VATIn Stock | |
 |
A40L-A001-1002 | Wi-Fi + Bluetooth | No | No | 970,52 €+VATIn Stock | |
 |
A40L-A001-1012 | Wi-Fi + Bluetooth | No | Yes | 1.011,47 €+VATIn Stock | |
 |
A40LR-A001-0002Viewing | Bluetooth | Yes | No | 1.453,73 €+VATIn Stock | |
 |
A40LR-A001-1002 | Wi-Fi + Bluetooth | Yes | No | 1.695,33 €+VATOut of Stock | View |
No matching products.
Accessories
| Product | Price | ||
|---|---|---|---|
 |
TSC spare batteryOP-P-SB-001-0001 | 173,65 €+VATIn Stock | |
 |
TSC power supplySP-A30L-0034 | 28,38 €+VATOut of Stock | View |
 |
TSC power supply, UKSP-A30L-0037 | 27,03 €+VATOut of Stock | View |
 |
TSC battery charging stationOP-P-BC1-001-2001 | 114,12 €+VATOut of Stock | View |
 |
TSC battery charging station, 4 slotsOP-P-BC4-001-2001 | 367,13 €+VATOut of Stock | View |
 |
TSC charging stationOP-P-DC1-001-2001 | 208,37 €+VATIn Stock | |
 |
TSC charging station, 4 slotsOP-P-DC4-001-2001 | 461,40 €+VATIn Stock | |
 |
TSC battery charging stationOP-P-BC1-001-3001 | 114,12 €+VATOut of Stock | View |
| TSC battery charging station, 4 slotsOP-P-BC4-001-3001 | 367,13 €+VATOut of Stock | View | |
 |
TSC protective caseOP-P-EC-002-0001 | 73,95 €+VATIn Stock | |
| TSC shoulder strapOP-P-SS-001-0001 | 9,72 €+VATOut of Stock | View | |
 |
TSC belt clipOP-P-BCP-001-0001 | 7,05 €+VATOut of Stock | View |
 |
TSC vehicle mountOP-P-VM-002-0001 | 46,94 €+VATIn Stock | |
| TSC connection cable, USBSP-COM-0029 | 7,67 €+VATOut of Stock | View | |
 |
TSC Platen RollerSP-A40L-0002 | 14,19 €+VATOut of Stock | View |
 |
TSC Print HeadsPH-A40L-0001 | 128,99 €+VATIn Stock | |
 |
Cleaning Kits36-0000010-00LF | 24,38 €+VATIn Stock |
No matching products.
Compatible Labels
| Product | Size (W × H) | Material | Labels / roll | Core | Price | ||
|---|---|---|---|---|---|---|---|
 |
Tsc W: 102 mm38-T102102-14LF | 102 × 102 mm | Thermal Paper | 140 | 19 mm | 3,05 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D3005281-T | 101.6 × 152.4 mm | Thermal Paper | 110 | 19 mm | 7,99 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D3013759 | 76.2 × 50.8 mm | Thermal Paper | 96 | 19 mm | 3,67 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D3007842-T | 50.8 × 25.4 mm | Thermal Paper | 430 | 19 mm | 3,70 €+VATIn Stock | |
 |
Zebra PolyPro 4000D3003347 | 50.8 × 25.4 mm | Synthetic | 340 | 19 mm | 8,54 €+VATIn Stock | |
 |
Zebra Z-Select 2000D3003074 | 101.6 × 152.4 mm | Thermal Paper | 105 | 19 mm | 10,29 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D3008731-T | 76.2 × 50.8 mm | Thermal Paper | 300 | 19 mm | 6,37 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D3012910-T | 50.8 × 25.4 mm | Thermal Paper | 353 | 19 mm | 3,12 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D3008870-T | 101.6 × 50.8 mm | Thermal Paper | 300 | 19 mm | 7,98 €+VATIn Stock | |
 |
Zebra Z-Select 2000D Removable3004840-T | 76.2 × 44.45 mm | Thermal Paper | 350 | 19 mm | 11,37 €+VATIn Stock | |
 |
Zebra Z-Select 2000D3003071 | 101.6 × 101.6 mm | Thermal Paper | 150 | 19 mm | 10,29 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D3012913-T | 101.6 × 152.4 mm | Thermal Paper | 85 | 19 mm | 6,19 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D3008871-T | 101.6 × 101.6 mm | Thermal Paper | 150 | 19 mm | 7,98 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D3007589-T | 76.2 × 101.6 mm | Thermal Paper | 150 | 19 mm | 6,37 €+VATIn Stock | |
 |
Tsc W: 50 mm38-T050020-14LF | 50 × 20 mm | Thermal Paper | 650 | 19 mm | 2,20 €+VATOut of Stock | View |
 |
Tsc W: 55 mm38-T055070-14LF | 55 × 70 mm | Thermal Paper | 200 | 19 mm | 2,07 €+VATOut of Stock | View |
 |
Tsc W: 80 mm38-T080055-14LF | 80 × 55 mm | Thermal Paper | 250 | 19 mm | 2,45 €+VATOut of Stock | View |
 |
Tsc W: 90 mm38-T090036-14LF | 90 × 36 mm | Thermal Paper | 400 | 19 mm | 3,14 €+VATOut of Stock | View |
 |
Tsc W: 100 mm38-T100025-14LF | 100 × 25 mm | Thermal Paper | 550 | 19 mm | 4,69 €+VATOut of Stock | View |
 |
Tsc W: 50 mm38-T050035-14LF | 50 × 35 mm | Thermal Paper | 400 | 19 mm | 1,96 €+VATOut of Stock | View |
 |
Tsc W: 80 mm38-T080060-14LF | 80 × 60 mm | Thermal Paper | 240 | 19 mm | 2,65 €+VATOut of Stock | View |
 |
Tsc W: 100 mm38-T100100-14LF | 100 × 100 mm | Thermal Paper | 150 | 19 mm | 3,08 €+VATOut of Stock | View |
 |
Tsc W: 58 mm38-T058075-14LF | 58 × 75 mm | Thermal Paper | 180 | 19 mm | 2,04 €+VATOut of Stock | View |
 |
Tsc W: 80 mm38-T080120-14LF | 80 × 120 mm | Thermal Paper | 120 | 19 mm | 2,55 €+VATOut of Stock | View |
 |
Tsc W: 100 mm38-T100130-14LF | 100 × 130 mm | Thermal Paper | 110 | 19 mm | 3,11 €+VATOut of Stock | View |
 |
Tsc W: 50 mm38-T050050-14LF | 50 × 50 mm | Thermal Paper | 300 | 19 mm | 2,11 €+VATOut of Stock | View |
 |
Tsc W: 80 mm38-T080160-14LF | 80 × 160 mm | Thermal Paper | 90 | 19 mm | 2,31 €+VATOut of Stock | View |
 |
Tsc W: 104 mm38-T104074-14LF | 104 × 74 mm | Thermal Paper | 180 | 19 mm | 3,19 €+VATOut of Stock | View |
 |
Tsc W: 105 mm38-T105148-14LF | 105 × 148 mm | Thermal Paper | 100 | 19 mm | 3,04 €+VATOut of Stock | View |
 |
Tsc W: 100 mm38-T100050-14LF | 100 × 50 mm | Thermal Paper | 300 | 19 mm | 3,33 €+VATOut of Stock | View |
No matching products.
Compatible Receipt Rolls
| Product | Width | Length | Roll Ø | Core | Price | ||
|---|---|---|---|---|---|---|---|
 |
Zebra Z-Perform 1000D 60 Receipt3013286 | 80 mm | 15.54 m | 40 mm | 12.7 mm | 4,86 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D 80 Receipt3012973 | 80 mm | — | 40 mm | 12.7 mm | 3,63 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D 80 Receipt3013287 | 80 mm | 11.28 m | 40 mm | 12.7 mm | 3,86 €+VATIn Stock | |
 |
Zebra Z-Perform 1000D 60 Receipt3013689 | 58 mm | 15.54 m | 40 mm | 12.7 mm | 2,76 €+VATIn Stock |
