BIXOLON XD5-43IIt 4-inch thermal transfer desktop label printer, LCD, black (XD5-43IItOEWK/BEG) – front view

BIXOLON XD5-43IIt 4-inch thermal transfer desktop label printer, LCD, black (XD5-43IItOEWK/BEG) – angled view

BIXOLON XD5-43IIt 4-inch thermal transfer desktop label printer, LCD, black (XD5-43IItOEWK/BEG) – detail view

BIXOLON XD5-43IIt Desktop Label Printer (XD5-43IItOEWK/BEG)

Name: BIXOLON XD5-43IIt Desktop Label Printer (XD5-43IItOEWK/BEG)
Brand: BIXOLON
SKU: bixxd540ii-29
Availability: OutOfStock

427,23 € +VAT

Product variants

Resolution (dpi)

203300

Print Method

Direct thermalThermal transfer

Wireless

Bluetooth NoneWi-Fi

Wired Interfaces

USBUSB, RS232, Ethernet

Display

LCDNone

Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

Available: Out Of Stock
Vendor: BIXOLON
Type: Desktop Printers
Barcode: XD5-43IItOEWK/BEG
Collections: Desktop Label Printers , Label Printers

📄 Download Product Brochure (PDF)

BIXOLON

BIXOLON XD5-43IIt Desktop Label Printer (XD5-43IItOEWK/BEG)

427,23 € +VAT

Description

Description

The BIXOLON XD5-43IIt (XD5-43IItOEWK/BEG) is a robust 4-inch desktop label printer for thermal-transfer and direct-thermal printing at 300 dpi and up to 152 mm/s (6 ips). It runs 74 m ribbons on a 0.5" core as well as 300 m ribbons on a 1" core. It takes label rolls up to 127 mm on 1" or 1.5" cores, speaks ZPL II and EPL via BPL-Z™/BPL-E™ emulation and connects via USB, USB host, RS-232 and 10/100 Ethernet plus dual-band Wi-Fi (2.4/5 GHz), with a 200 × 100 pixel LCD and menu buttons for easy set-up. Power adapter, EU power cord and USB cable are included – ready to print. As the second generation of the XD5-40 Series it prints faster than its predecessor (up to 6 ips instead of 4 ips) and has 512 MB SDRAM + 512 MB Flash.

📦 What's in the box – XD5-43IItOEWK/BEG

✅ BIXOLON XD5-43IIt label printer – 300 dpi, USB, USB host, RS-232, Ethernet 10/100 + dual-band Wi-Fi, LCD
✅ Power supply – external AC/DC power adapter, 100–240 V AC
✅ Power cord – EU plug (Schuko)
✅ USB cable – USB A-to-B – connect and print straight away
✅ Ribbon holders and paper cores – 2 ribbon holders for 1" ribbons plus empty 0.5" and 1" paper cores for ribbon take-up
✅ Setup guide – quick start guide
✅ Drivers & label software – Windows/Mac/Linux drivers, Label Artist™-II and BarTender® UltraLite – free download from BIXOLON
❌ Thermal-transfer ribbon – NOT included – needed for thermal-transfer printing only – direct-thermal labels print without a ribbon
❌ Labels – NOT included – order labels to suit your application (see compatible labels below)
❌ Ethernet (LAN) cable – NOT included – use any standard RJ45 patch cable
❌ Serial (RS-232) cable – NOT included – only needed for a serial connection – e.g. the BIXOLON SER-KAB-9-9

✅ Ready to print: power adapter, power cord and USB cable are in the box – you only need labels (and a ribbon for thermal-transfer printing).

💡 Useful extras: the optional field-installable peeler and auto cutter (ask us for availability); ribbons with the ink on the OUTSIDE, e.g. the Zebra 2300 (02300BK11030) (110 mm × 300 m on a 1" core); the BIXOLON LES-400G external roll holder for large rolls; BIXOLON PCP-R200II/STD printhead cleaning pens.

Key Features

Thermal transfer and direct thermal at 300 dpi – up to 152 mm/s (6 ips), max. print width 105.7 mm
Flexible ribbon use: 74 m ribbons on a 0.5" core or 300 m ribbons on a 1" core, 33–110 mm wide, ink outside (wax, wax/resin, resin)
Media 15–118 mm wide, rolls up to 127 mm on 25.4–38.1 mm cores, fanfold; gap, black-mark, notch and continuous media with adjustable black-mark sensor
USB, USB host, RS-232, 10/100 Ethernet and dual-band Wi-Fi 802.11a/b/g/n (2.4/5 GHz) with Wi-Fi Direct and SoftAP
FSTN LCD (200 × 100 pixels) with intuitive menu buttons – settings and status at a glance
512 MB SDRAM and 512 MB Flash for fonts, graphics and formats; SLCS™, BPL-Z™ (ZPL II), BPL-E™ (EPL) and BPL-D™ (DPL) emulation as a drop-in replacement

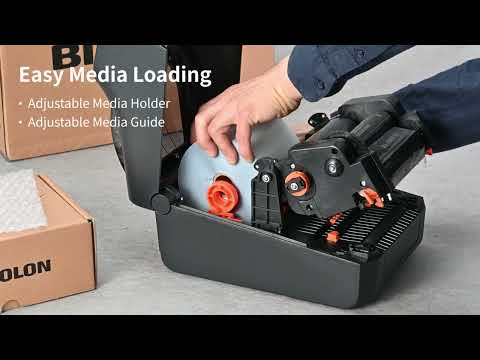

Clamshell design with adjustable media guide and holder; field-installable peeler and auto cutter
Label Artist™-II, Label Artist™ Web / Mobile, mPrint app and BarTender® UltraLite; Windows/Mac/Linux drivers, XPM™/XCM™ management and SDKs for Android, iOS, Windows, Linux, MAUI, Flutter and React Native
ENERGY STAR® certified, compact 210 × 284 × 188 mm footprint

Ideal Applications

Manufacturing – durable product, compliance and rating-plate labels
Chemicals – GHS/CLP and hazardous goods labels on synthetic media
Warehousing and logistics – pallet, shelf and asset labels
Retail – price tags and long-life shelf labels
Healthcare and laboratories – sample and specimen labels

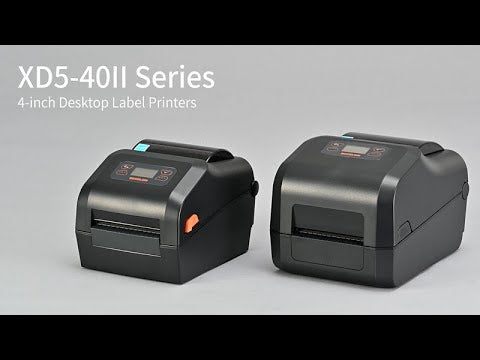

All XD5-40II Series Versions

The highlighted row is the version you are currently viewing.

Part Number	Model	Resolution	Interfaces	Wireless	Display
XD5-40IIdOEWK/BEG	XD5-40IId	203 dpi	USB, USB host, RS-232, Ethernet	Wi-Fi	LCD	View product
XD5-43IIdK/BEG	XD5-43IId	300 dpi	USB, USB host	—	—	View product
XD5-43IIdEK/BEG	XD5-43IId	300 dpi	USB, USB host, RS-232, Ethernet	—	—	View product
XD5-43IIdOEK/BEG	XD5-43IId	300 dpi	USB, USB host, RS-232, Ethernet	—	LCD	View product
XD5-43IIdEBK/BEG	XD5-43IId	300 dpi	USB, USB host, RS-232, Ethernet	Bluetooth	—	View product
XD5-43IIdOEBK/BEG	XD5-43IId	300 dpi	USB, USB host, RS-232, Ethernet	Bluetooth	LCD	View product
XD5-43IIdEWK/BEG	XD5-43IId	300 dpi	USB, USB host, RS-232, Ethernet	Wi-Fi	—	View product
XD5-43IIdOEWK/BEG	XD5-43IId	300 dpi	USB, USB host, RS-232, Ethernet	Wi-Fi	LCD	View product
XD5-40IItK/BEG	XD5-40IIt	203 dpi	USB, USB host	—	—	View product
XD5-40IItEK/BEG	XD5-40IIt	203 dpi	USB, USB host, RS-232, Ethernet	—	—	View product
XD5-40IItOEK/BEG	XD5-40IIt	203 dpi	USB, USB host, RS-232, Ethernet	—	LCD	View product
XD5-40IItEBK/BEG	XD5-40IIt	203 dpi	USB, USB host, RS-232, Ethernet	Bluetooth	—	View product
XD5-40IItOEBK/BEG	XD5-40IIt	203 dpi	USB, USB host, RS-232, Ethernet	Bluetooth	LCD	View product
XD5-40IItEWK/BEG	XD5-40IIt	203 dpi	USB, USB host, RS-232, Ethernet	Wi-Fi	—	View product
XD5-40IItOEWK/BEG	XD5-40IIt	203 dpi	USB, USB host, RS-232, Ethernet	Wi-Fi	LCD	View product
XD5-43IItK/BEG	XD5-43IIt	300 dpi	USB, USB host	—	—	View product
XD5-43IItEK/BEG	XD5-43IIt	300 dpi	USB, USB host, RS-232, Ethernet	—	—	View product
XD5-43IItOEK/BEG	XD5-43IIt	300 dpi	USB, USB host, RS-232, Ethernet	—	LCD	View product
XD5-43IItEBK/BEG	XD5-43IIt	300 dpi	USB, USB host, RS-232, Ethernet	Bluetooth	—	View product
XD5-43IItOEBK/BEG	XD5-43IIt	300 dpi	USB, USB host, RS-232, Ethernet	Bluetooth	LCD	View product
XD5-43IItEWK/BEG	XD5-43IIt	300 dpi	USB, USB host, RS-232, Ethernet	Wi-Fi	—	View product
XD5-43IItOEWK/BEG (this version)	XD5-43IIt	300 dpi	USB, USB host, RS-232, Ethernet	Wi-Fi	LCD	Viewing

Technical Specifications

Part Number	XD5-43IItOEWK/BEG
Model	BIXOLON XD5-43IIt (XD5-40II Series)
Printer Type	4-inch desktop thermal transfer label printer
Print Method	Thermal transfer and direct thermal
Resolution	300 dpi (12 dots/mm)
Print Speed	Up to 152 mm/s (6 ips)
Max Print Width	105.7 mm (4.16")
Max Print Length	1,000 mm (39.4")
Media Width	15–118 mm (0.59"–4.65"), incl. liner
Media Thickness	0.06–0.20 mm
Roll Diameter	Up to 127 mm (5") OD
Core Size	25.4–38.1 mm (1"–1.5")
Media Types	Gap (die-cut), black mark, notch, continuous, fanfold
Sensors	Transmissive gap sensor (fixed), reflective black-mark sensor (adjustable), head-open sensor, ribbon-end sensor
Ribbon	Wax, wax/resin, resin; ink OUTSIDE; width 33–110 mm; up to 300 m on 1" (25.4 mm) core, 74 m on 0.5" (12.7 mm) core
Interfaces	USB (Type B), USB host, RS-232 serial, Ethernet 10/100 Mbps
Wireless	Dual-band WLAN 802.11a/b/g/n (2.4/5 GHz), Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP; WEP40/104, WPA1/2 (PSK, EAP)
Memory	512 MB SDRAM, 512 MB Flash
Real-Time Clock	Optional
Printer Languages	SLCS™, BPL-Z™ (ZPL II compatible), BPL-E™ (EPL compatible), BPL-D™ (DPL compatible)
Fonts / Character Sets	Bitmap fonts (10 SLCS, 16 BPL-Z, 5 BPL-E, 9 BPL-D), scalable fonts (1 SLCS, 1 BPL-Z, 1 BPL-D), 23 code pages, Unicode (UTF-8, UTF-16LE/BE); downloadable TTF/TTE/FNT fonts, graphics, formats and logos
Barcodes	1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8/13, Industrial/Interleaved/Standard 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar, UPC-A/E, IMB, ISBT-128; 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39
Display	FSTN LCD, 200 × 100 pixels, with menu buttons
Media Options	Tear-off (standard); field-installable peeler and auto cutter (optional)
Options	Peeler, auto cutter, external paper supply, serial cable
Drivers & Software	Windows driver (Europlus / Seagull), Linux/Mac CUPS, virtual COM USB/Ethernet, OPOS/JPOS, SAP device driver, network auto installer; Label Artist™-II, Label Artist™ Web / Mobile, mPrint app, BarTender® UltraLite for BIXOLON; XPM™/XCM™ management (optional); Android/iOS/Windows/Linux, Xamarin, Web Print, MAUI, Flutter, React Native SDKs
Power Supply	External AC/DC power adapter, 100–240 V AC, 50/60 Hz; ENERGY STAR® certified
Dimensions (W × D × H)	210 × 284 × 188 mm
Weight	2.48 kg
Color	Black
Operating Temperature	0–41 °C
Storage Temperature	−40–60 °C
Humidity	Operating 10–80% RH, storage 5–95% RH (non-condensing)
Warranty	36 months
In the Box	BIXOLON XD5-43IIt printer (300 dpi, USB, USB host, RS-232, Ethernet 10/100 + dual-band Wi-Fi, LCD), external AC/DC power adapter (100–240 V AC), power cord (EU plug), USB cable, 2 ribbon holders + empty 0.5" and 1" paper cores, quick start guide; drivers and Label Artist-II / BarTender UltraLite software as free download – labels and ribbon NOT included

Looking for the first-generation model? See the BIXOLON XD5-43t (XD5-43tOEWK) from the XD5-40 Series. Need another resolution, interface or display? All XD5-40II Series versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
