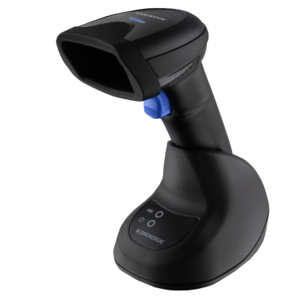

The Datalogic QuickScan QBT2500 is a cordless Bluetooth® 2D handheld barcode scanner with a 1 MP imager that reads 1D, 2D and Digimarc codes from paper labels and phone screens, with Datalogic's Green Spot good-read confirmation. A removable 3250 mAh battery lasts for approx. 115,000 reads per charge, and the scanner connects either through its BC2090 base station (USB, USB-C or RS-232) or directly to Bluetooth PCs, tablets and smartphones. It comes with a 5-year Datalogic warranty. This version, QBT2500-BK, is black and is supplied with the BC2090 Bluetooth base station – an interface cable is not included.
📦 What's in the box – QBT2500-BK
- ✅ Datalogic QuickScan QBT2500 scanner – black, 2D imager, Bluetooth 4.0
- ✅ Rechargeable battery – Li-ion, 3250 mAh, removable – charge fully before first use
- ✅ BC2090 Bluetooth base station – charges the scanner and sends its data to your PC or POS (USB, USB-C or RS-232, depending on the cable)
- ❌ Interface cable – NOT included – needed to connect the base to your PC or POS (order separately)
- ❌ Power supply – not included – not needed with USB (the base is powered by the host); for faster charging or RS-232 hosts without power on pin 9, add the 90ACC0287 power supply
⚠️ An interface cable is required: the BC2090 base connects to your PC or POS – and receives its power – through a Datalogic interface cable, which is not in the box. Order the Datalogic USB cable 90A052258 (straight, 2 m) (or the coiled USB cable 90A052285 or USB-C cable 90A052352), or choose the QBT2500-BK-BTK1 kit, which already includes the USB cable.
💡 Two ways to connect: place the scanner in the BC2090 base to link it – the base then works plug-and-play with your PC or POS (up to 50 m in open air). Alternatively, the scanner can pair directly with a Bluetooth-enabled PC, tablet or smartphone as a keyboard (HID) or serial port (SPP) by scanning the pairing barcode in the quick reference guide.
💡 The base doubles as a charging stand on the counter. Need a wall or desk holder, or a second battery for multi-shift use? Add the Datalogic holder HLD-Q040-BK or a spare battery RBP-QBT25-BK.
Key Features
- Cordless Bluetooth freedom – Bluetooth 4.0 Class 1 with up to 50 m range (open air, with the base), data encryption and scanner authentication; pairs with the BC2090 base or directly with PCs, tablets and smartphones (HID/SPP).
- All-day battery – removable 3250 mAh Li-ion pack for approx. 115,000 reads per charge; charges in the base or directly through the scanner's USB-C port.
- Reads 1D, 2D and Digimarc codes – omnidirectional reading of linear, 2D, postal, stacked and composite codes plus Digimarc digital watermarks, on paper labels and on phone screens.
- 1 MP high-performance imager – snappy reading with a wide depth of field: up to 51 cm on 13 mil EAN/UPC and down to 3 mil codes.
- Datalogic Green Spot and precision aiming – a sharp blue aiming pattern frames the code and a green light on the barcode confirms every good read, even in noisy environments.
- Motionix motion sensing – switches automatically between handheld and presentation reading modes.
- Easy integration – the BC2090 base offers USB, USB-C and RS-232 multi-interface; free Datalogic Aladdin configuration tool, OPOS/JavaPOS utilities and remote host download.
- Built to last – withstands repeated 1.5 m drops to concrete, IP52 sealed, trigger rated for 10 million actuations, with a 5-year (60-month) Datalogic warranty.
Ideal Applications
- Retail point of sale – check-out, line busting, loyalty cards and electronic coupons
- Shop floor and back office – price checks, shelf replenishment and goods receiving
- Commercial services – postal, banking, public administration and utilities
- Hospitality and transport – ticketing for events, concerts and travel
- Healthcare – laboratories, pharmacies and patient care; light manufacturing work-in-progress tracking
All QuickScan QBT2500 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Bluetooth Base | Cable | Works out of the box with | |
|---|---|---|---|---|
| QBT2500-BK (this version) | ✅ BC2090 | — (order separately) | PC or POS once a cable is added | Viewing |
| QBT2500-BK-BTK1 | ✅ BC2090 | USB, straight 2 m | PC or POS via USB | View product |
| QBT2500-BK-BTK+ | — | USB-C (charging) | Bluetooth PC, tablet or smartphone | View product |
Technical Specifications
| Part Number | QBT2500-BK |
|---|---|
| Model | Datalogic QuickScan QBT2500 (QuickScan 2500 series) |
| Scanner Type | Cordless handheld 2D area imager (Bluetooth) |
| Image Sensor | 1 MP (1280 × 800 pixels) |
| Light Source | Aiming: 468 nm blue LED; illumination: 617 nm red LED |
| Depth of Field (typical) | Code 39 5 mil: 0.5–25 cm; Code 39 10 mil: 0.5–38 cm; EAN/UPC 13 mil: 0.5–51 cm; Data Matrix 10 mil: 0.5–21.5 cm; PDF417 6.7 mil: 0.5–21 cm; QR Code 20 mil: 0–37 cm |
| Maximum Resolution | 1D: 3 mil (0.077 mm); PDF417: 3 mil; Data Matrix: 5 mil (0.127 mm); QR Code: 6.7 mil (0.17 mm) |
| Motion Tolerance | 30 IPS (76 cm/s) |
| Minimum Print Contrast | 15% |
| Reading Angles | Pitch ±65°, roll 360°, skew ±65° |
| 1D Symbologies | All standard 1D codes incl. GS1 DataBar linear codes (auto-discrimination) |
| 2D Symbologies | Aztec, China Han Xin, Data Matrix, MaxiCode, Micro QR, QR Code, DotCode |
| Postal Codes | Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet, Postnet, Royal Mail RM4SCC |
| Stacked / Composite Codes | PDF417, MicroPDF417, MacroPDF, GS1 DataBar stacked / expanded / composite, EAN/UPC composites |
| Digital Watermark | Digimarc Barcode |
| Wireless Communication | Bluetooth 4.0, Class 1, 2.4 GHz; profiles SPP and HID; data encryption and scanner authentication |
| Radio Range | Up to 50 m open air (measured with the BC2090 base); range with other Bluetooth hosts may vary |
| Host Interfaces | BC2090 base: USB, USB-C and RS-232 multi-interface (depends on the cable); direct Bluetooth to PC, tablet or smartphone: HID (keyboard) or SPP (serial) |
| Base Station | BC2090-BK base station/charger included |
| Battery | Removable Li-ion battery pack, 3.6 V, 3250 mAh (11.7 Wh); approx. 115,000 reads per charge |
| Charging Time | Scanner via USB-C: approx. 3 h (wall adapter or USB-C host), 5.5 h (USB-A host); in the BC2090 base: approx. 4 h (external power or USB-C host), 8 h (USB-A host) |
| Input Voltage | Scanner USB-C port: 5 V ±5%; BC2090 base: 4.5–14 VDC, approx. 45 mA at 5 V (base only) |
| Reading Indicators | Datalogic Green Spot, good-read LED, beeper (adjustable tone and volume) |
| Color | Black |
| Dimensions | Scanner: 15.9 × 6.8 × 10.7 cm |
| Weight | 206.5 g (battery included) |
| Environmental Sealing | IP52 |
| Drop Resistance | Repeated 1.5 m drops to concrete |
| Electrostatic Discharge | 16 kV (air discharge) |
| Ambient Light Immunity | 0–110,000 lux |
| Trigger Life | 10 million actuations |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 0–95% RH, non-condensing |
| Software & Management | Datalogic Aladdin configuration tool, OPOS / JavaPOS utilities, remote host download |
| Warranty | 60 months (5-year Datalogic factory warranty) |
| In the Box | QuickScan QBT2500 scanner, Li-ion battery pack (3.6 V, 3250 mAh, removable), BC2090 Bluetooth base station/charger – interface cable NOT included (order separately, e.g. USB cable 90A052258); no power supply (not needed with USB) |
Not sure which version you need? Choose QBT2500-BK-BTK1 for a ready-to-use USB setup at a checkout or desk, QBT2500-BK if you already have a compatible Datalogic cable or need an RS-232 connection, and QBT2500-BK-BTK+ to pair the scanner directly with a tablet, smartphone or Bluetooth-enabled PC. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
Available Versions
QBT2500-BK
Selected
Bluetooth 4.0, 2D imager, black
Includes: BC2090 Bluetooth base, 3250 mAh battery
Order separately: interface cable
handheld scanner, Bluetooth scanner, 2D, imager, Digimarc, multi-interface (RS232, KBW, USB), protection class: IP52, incl.: charging/transmitter cradle, order separately: interface cable, colour: black
171,28 €In Stock
QBT2500-BK-BTK+
Bluetooth 4.0, 2D imager, black
Includes: USB-C charging cable, 3250 mAh battery
Base not included – pairs directly via Bluetooth
handheld scanner, Bluetooth scanner, 2D, imager, Digimarc, multi-interface (RS232, KBW, USB), incl.: cable (USB-C), protection class: IP52, colour: black
QBT2500-BK-BTK1
Bluetooth 4.0, 2D imager, black
Includes: BC2090 Bluetooth base, USB cable (2 m), 3250 mAh battery
handheld scanner, Bluetooth scanner, 2D, imager, Digimarc, multi-interface (RS232, KBW, USB), protection class: IP52, incl.: cable (USB, straight, 2 m), charging/transmitter cradle, colour: black
