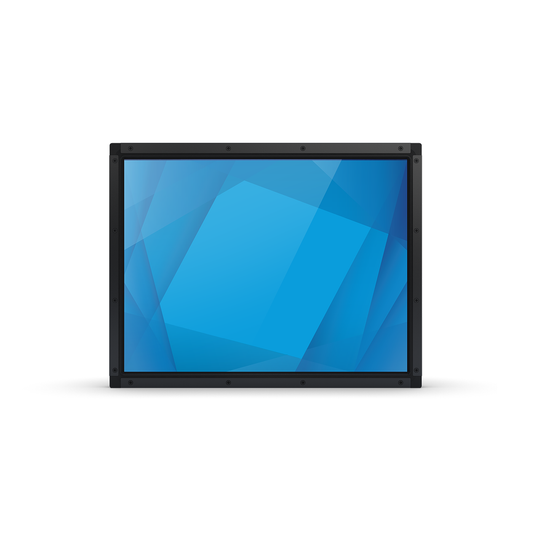

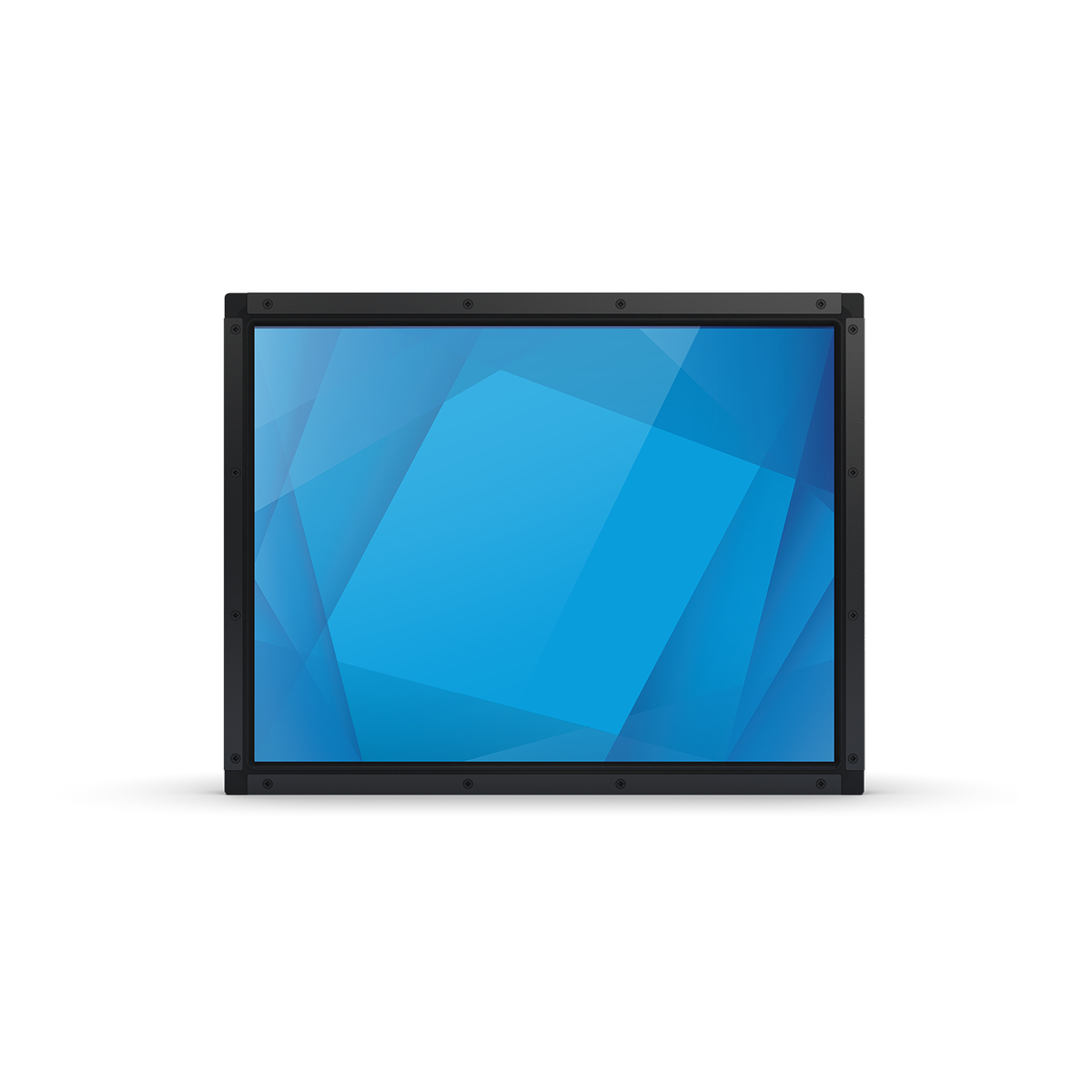

Elo 1598L 15" Open-Frame Touch Monitor, AccuTouch Resistive, XGA, 500 cd/m² (E126407)

The Elo 1598L is a 15" open-frame touch monitor from Elo's 90 Series, designed to be built into kiosks, machines, gaming cabinets and self-service terminals. A 500 cd/m² high-brightness 15" 4:3 panel and an extended 0–50 °C operating range make it suitable for bright, warm locations. It pairs a 15" 4:3 LCD panel (XGA, 1024 × 768) with Elo AccuTouch 5-wire resistive touch, operable with a finger, gloved hand or stylus. HDMI, VGA and DisplayPort inputs and a compact metal chassis with VESA 75 × 75 / 100 × 100 mm mounting make integration easy, backed by a 3-year Elo warranty. This version, E126407, is the AccuTouch resistive model with a bezel for side, front or rack mounting; HDMI, VGA and touch USB cables, a remote OSD keypad and mounting brackets are included, while the 12 V power supply is ordered separately.

Key Features

• AccuTouch 5-wire resistive touch – responds to a finger, gloved hand or stylus and is resistant to dust and liquids
• XGA 15" display (4:3) – 500 cd/m² LCD panel, 1500:1 contrast, 35 ms response time
• High-brightness panel – 500 cd/m² keeps content clearly readable in brightly lit locations, with an extended 0–50 °C operating range
• Three video inputs – HDMI, VGA and DisplayPort for easy connection to practically any PC, media player or Elo Backpack
• Built for integration – compact metal chassis, VESA 75 × 75 / 100 × 100 mm, included L-brackets and optional front- and rack-mount bezel kits
• Tamper-resistant controls – tethered remote OSD keypad with OSD and power lock-outs for public installations
• Sealed touchscreen – sealed to the bezel and the LCD to keep out dust and liquids
• Commercial-grade reliability – 50,000-hour MTBF and a 3-year Elo warranty, extendable to 4 or 5 years

Ideal Applications

• Industrial HMI and machine control panels
• Gaming, lottery and amusement machines
• Ticketing and vending terminals
• Medical and laboratory equipment
• Replacement units for existing kiosk fleets

Technical Specifications

Choosing the right version: The Elo 90 Series covers 10.1" to 27" in classic 4:3 / 5:4 and widescreen 16:9 formats. Choose TouchPro PCAP for multi-touch and a flush glass front, IntelliTouch for a pure glass surface with single touch, or AccuTouch resistive for operation with gloves and stylus; high-brightness and outdoor models are available for bright locations. Browse all Monitors to compare sizes and touch technologies, or contact us for volume pricing, project quotes and integration advice.
