| Part Number |
C31CJ52121 |
| Model |

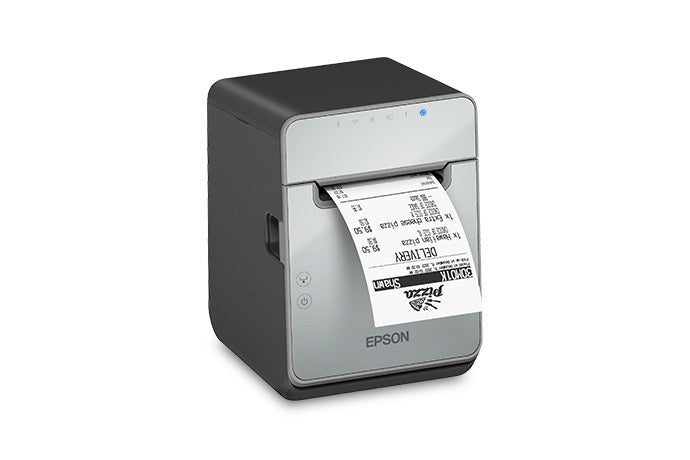

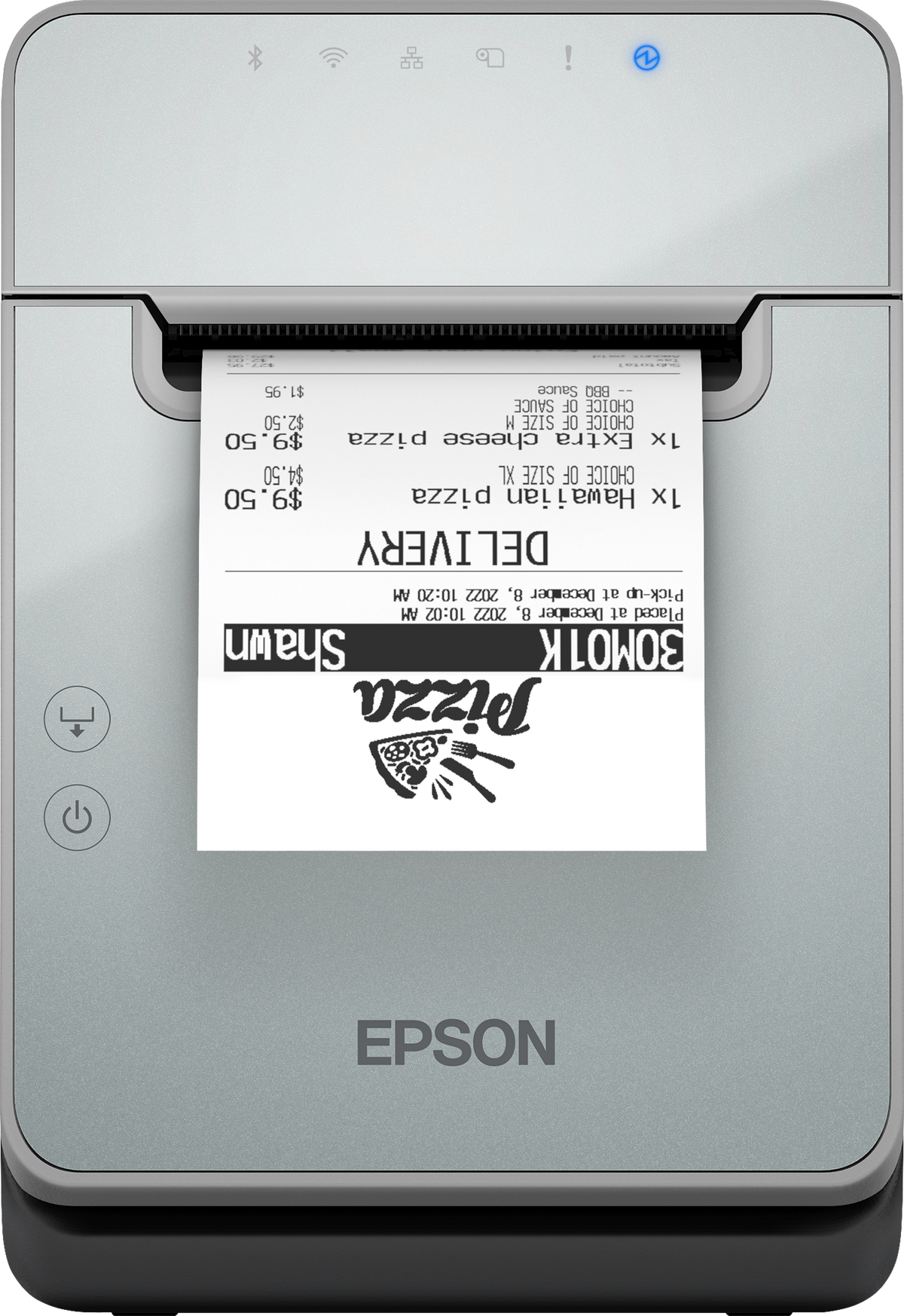

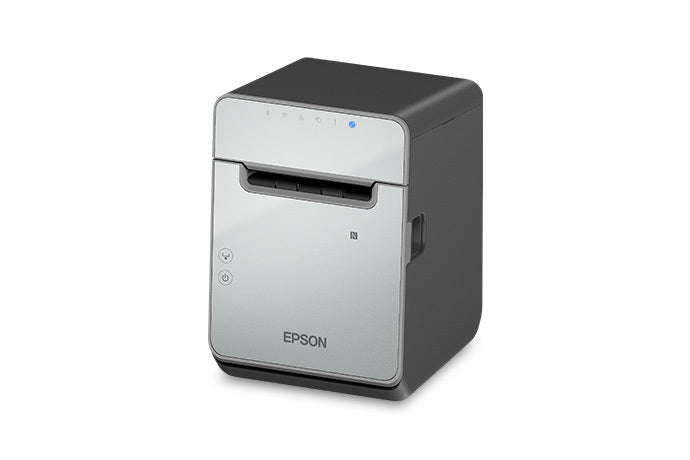

Epson TM-L100 (121) – USB + Ethernet + Bluetooth + tablet charge model |
| Printer Type |
Liner-free label and receipt printer (desktop, direct thermal) |
| Print Method |
Direct thermal line printing |
| Resolution |
203 × 203 dpi (8 dots/mm) |
| Print Speed |
Max. 170 mm/s (liner-free labels and receipt paper) |
| Media Type |
Liner-free labels (incl. thick and strong-adhesive liner-free media) and thermal receipt paper |
| Paper Width |
80 mm (79.5 ± 0.5 mm), 58 mm (57.5 ± 0.5 mm, factory default) or 40 mm (39.5 ± 0.5 mm, liner-free labels only); max. print width 72 mm |
| Characters per Line |
80 mm: 48 (Font A) / 64 (Font B), 42-column mode available; 58 mm: 35 / 46; 40 mm: 23 / 31 |
| Roll Diameter |
Max. 102 mm; core min. 18 mm (receipt paper) / 31.8 mm (liner-free labels) |
| Auto-cutter |
Auto-cutter (partial cut); back-feed to save media |
| Interfaces |
USB 2.0 Type-B, Ethernet 10/100Base-T/TX, Bluetooth 3.0 (EDR), USB Type-A device-charging port (tablet charge & sync, Lightning, 2.1 A), 2 × USB 2.0 Type-A host (peripherals / Wi-Fi dongle, 500 mA), drawer kick-out connector |
| Wireless |
Bluetooth 3.0 (EDR); optional Wi-Fi 2.4/5 GHz with the Epson OT-WL06 USB dongle |
| Drawer Kick-out |
Yes – drawer kick-out connector (RJ12) |
| Emulation / Command Set |
ESC/POS; Epson ePOS (ePOS-Print, ePOS-Device, Server Direct Print) |
| Fonts / Character Sets |
Font A 12 × 24, Font B 9 × 17 dots, special fonts; 95 alphanumeric, 18 international character sets, 128 × 43 graphic; built-in CJK fonts |
| Barcodes |
1D: UPC-A, UPC-E, EAN-13, EAN-8, Code 39, Code 93, Code 128, GS1-128, GS1 DataBar, ITF, Codabar; 2D: QR Code, PDF417 |
| Drivers & Software |
Epson ePOS SDK (iOS, Android, JavaScript), ePOS-Print / Server Direct Print, Epson printer drivers (Windows), TM-L100 Utility |
| Mobile Printing |
Bluetooth, iPad / iPhone via the USB-A charge & sync port (Lightning), or over the network – iOS, Android and Windows (Epson ePOS SDK) |
| Data Buffer |
4 KB |
| Sensors |
Label-taken (paper-taken) sensor, paper near-end sensor |
| Power Supply |
External Epson AC adapter PS-190 (included), 24 VDC, 1.8 A; AC 100–230 V, 50/60 Hz |
| Power Consumption |
Approx. 31.3 W operating; approx. 1.6 W standby |
| Dimensions (W × D × H) |
Upright: 140 × 148.5 × 207 mm; horizontal: 140 × 205 × 151 mm |
| Weight |
Approx. 1.9 kg |
| Color |
Epson Black |
| Installation |
Upright (vertical) or horizontal; wall-mounted with the optional OT-WH30 bracket (C32C881017) |
| Operating Temperature |
5 °C to 45 °C (thermal paper; liner-free labels per media specification) |
| Storage Temperature |
−10 °C to 50 °C |
| Humidity |
10–90% RH |
| Reliability |
MTBF 360,000 hours; MCBF 70,000,000 lines (receipt paper) / 35,000,000 lines (liner-free labels) |
| Print Head Life |
150 km (thermal paper) / 75 km (liner-free labels) |
| Warranty |
12 months (carry-in); extendable up to 5 years with Epson CoverPlus |
| Options |
Wall-hanging bracket OT-WH30 (C32C881017), external buzzer OT-BZ20 (C32C890634), Wi-Fi dongle OT-WL06 (C32C891323), customer displays DM-D30 / DM-D70 (USB) |
| In the Box |
Epson TM-L100 printer (USB + Ethernet + Bluetooth + tablet charge model, black), Epson PS-190 AC adapter (24 V DC) with EU (Schuko) power cord, 40 mm roll paper guide (58 mm guide factory-fitted), 4 rubber feet, fixing tape, cable clamp (wire saddle), user's manual – no interface cable included (not needed for Bluetooth; USB and Ethernet cables available separately); no paper roll included (order separately) |
