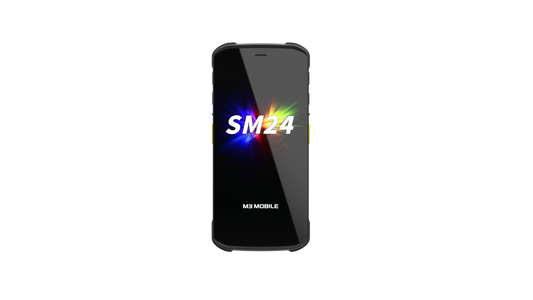

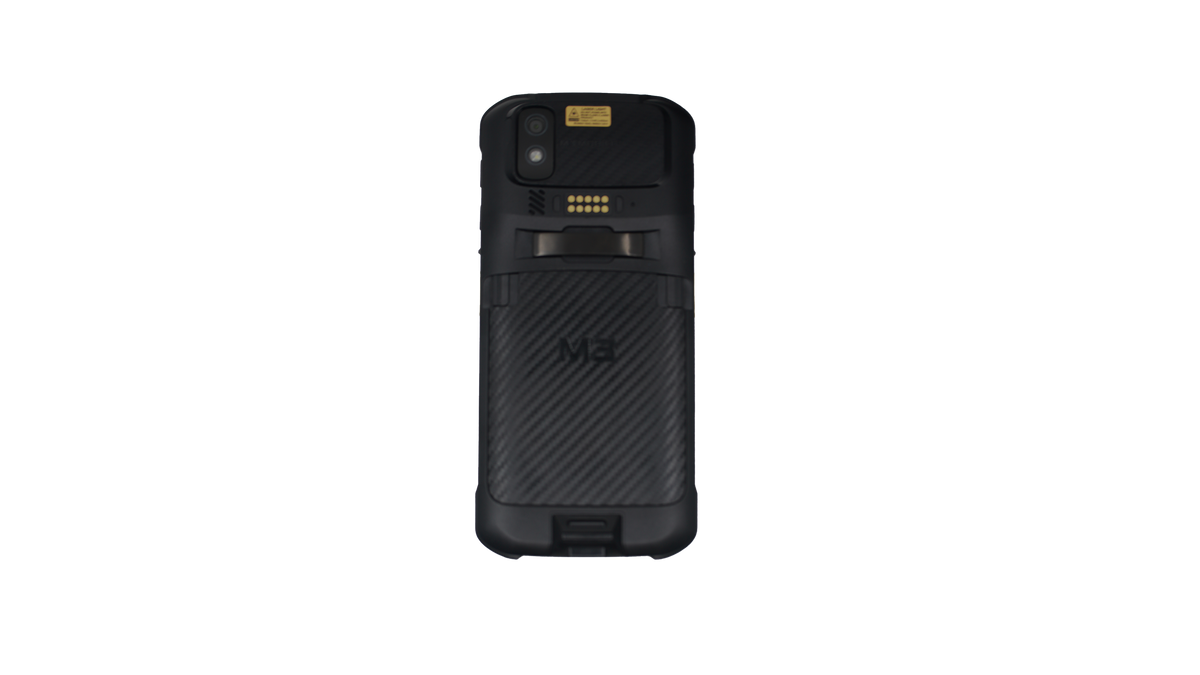

The M3 Mobile SM24 X is a rugged full-touch Android mobile computer in a slim smartphone format – built for retail, warehouse, logistics, delivery and field-service staff who scan all day. It offers the Qualcomm SM6225 (2.4 GHz octa-core), 8 GB RAM / 128 GB flash, a 6" HD+ Gorilla Glass 5 display, Wi-Fi 6E, Bluetooth 5.3, front-side NFC, a hot-swappable battery and IP67 sealing at an attractive price. This version, SM244E-W2CHSS-HF, adds 4G LTE mobile data and GPS. Configuration: the CM60E 2D imager, 8 GB RAM / 128 GB flash, Android 16 with GMS, standard 4000 mAh battery.
📦 What's in the box – SM244E-W2CHSS-HF
- ✅ M3 Mobile SM24 X – mobile computer, black, 6" HD+, CM60E, 8 GB / 128 GB
- ✅ Battery – standard 4000 mAh Li-ion, user-replaceable
- ✅ Google Mobile Services (GMS) – licensed and preinstalled – Google Play and Google apps ready to use
- ✅ Quick start guide – drivers, tools and user guides are a free download from M3 Mobile
- ❌ Charger / power supply – NOT included – needed to charge the SM24 X – via its USB-C port or a charging cradle (see the options below)
- ❌ Charging cradle – NOT included
- ❌ USB-C charging cable – NOT included
- ❌ Hand strap – NOT included
- ❌ SIM card – NOT included – Nano SIM slot + eSIM – SIM card / data plan from your mobile operator
⚠️ Please note: no charger, charging cable or cradle is included. To charge the SM24 X, please order separately: the M3 SMXX-PWSP-CEU fast-charging USB power adapter with USB cable – charges the SM24 X directly via USB-C; or the M3 SM2X-2CRD-C00 2-slot fast-charging cradle (terminal + spare battery) with a fast-charging power adapter such as M3 SMXX-PWSP-CEU.

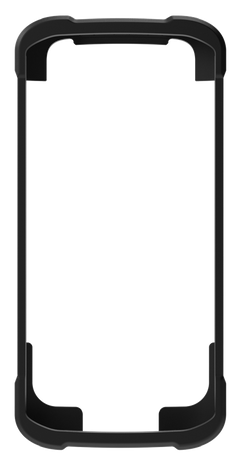

💡 Useful extras: a spare battery for hot-swapping (M3 SX2X-BATT-S40); the M3 SX2X-8CRD-C00 charging station for 4 terminals + 4 spare batteries (with the M3 SX2X-PWSP-8EU power supply); the M3 SX2X-TRIG-S00 trigger handle for scan-intensive work; the M3 SX2X-BOOT-01 protective boot for extra drop protection; a hand strap (M3 SX2X-STRP-S01, M3 SX2X-STRP-S10 or M3 SX2X-STRP-S50); the M3 SX2X-SCPR screen protector; a service plan with fast repair and battery replacement (M3 SM24-SPST-FB3 or M3 SM24-SPST-FB5).
Key Features
- Rugged yet slim – only 12.9 mm thin and 240 g light, IP67 dust and water protection, 1.5 m drops to concrete (1.8 m with protective boot) and 1000 tumbles at 1 m with boot.
- 4G LTE and GPS – nano SIM + eSIM, LTE mobile data with VoLTE plus GPS, GLONASS, Galileo and BeiDou for delivery, field service and work between sites; also Wi-Fi 6E and Bluetooth 5.3.
- CM60E 2D imager – fast, accurate 1D/2D reading at standard working distances, also from smartphone screens.
- 6" HD+ display – Corning Gorilla Glass 5 touchscreen, readable outdoors and usable with gloves; 5 programmable side keys.
- 4000 mAh battery with hot swap – change the battery without switching off; an extended 6000 mAh battery is available for longer shifts.
- Performance and long Android support – Qualcomm SM6225, octa-core 2.4 GHz, 8 GB RAM / 128 GB flash (microSD up to 2 TB), Android 16 with GMS and planned upgrades up to Android 18, 16 MP auto-focus rear camera and 8 MP front camera.
- Cost-optimised, single scanner – one standard CM60E 2D imager and an energy-saving HD+ display keep purchase and running costs low – ideal for budget-focused warehouse and retail roll-outs; USB-C and POGO contacts for charging and accessories.
- Shared SM24/SM25 accessories – 2-slot fast-charging cradle, 4-terminal charging station, trigger handle, protective boot, hand straps and screen protector fit both models.
Ideal Applications
- Warehouse picking, receiving, put-away and inventory
- Retail stock and price checks, click and collect and mobile POS
- Parcel, courier and last-mile delivery with proof of delivery
- Field service, maintenance and asset tracking
- Transport, logistics and yard management
- Manufacturing and spare-parts stores
All SM24 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Model | Connectivity | |
|---|---|---|---|
| SM240E-W2CHSS-HF | SM24 W | Wi-Fi only | View product |
| SM244E-W2CHSS-HF (this version) | SM24 X | 4G LTE + GPS | Viewing |
Technical Specifications
| Part Number | SM244E-W2CHSS-HF |
|---|---|
| Model | M3 Mobile SM24 X – 4G LTE model of the SM24 rugged full-touch series |
| Operating System | Android 16 with Google Mobile Services (GMS); planned upgrades to Android 17 and 18 (pending feasibility); M3 StartUp for GMS and service control |
| Processor | Qualcomm SM6225, octa-core 2.4 GHz |
| Memory (RAM / Flash) | 8 GB RAM / 128 GB Flash |
| Expansion | microSD, user-accessible (up to 2 TB) |
| Display | 6" HD+ (720 × 1440), LED backlight, Corning Gorilla Glass 5 |
| Touch Panel | Capacitive – finger and gloved finger |
| Buttons | 5 programmable side scan keys, power button |
| Scan Engine | CM60E 1D/2D imager (standard range) |
| Rear Camera | 16 MP auto-focus (PDAF) |
| Front Camera | 8 MP |
| Wi-Fi | Wi-Fi 6E – IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/ax, 2×2 MU-MIMO; WPA3; fast roaming (802.11r, OKC, CCKM) |
| Bluetooth | Bluetooth 5.3 with BLE |
| NFC | Front-side (display-side) NFC – ISO 14443 A/B, FeliCa, ISO 15693, 13.56 MHz |
| Mobile Data (WWAN) | 4G LTE B1/2/3/4/5/7/8/20/28/38/39/40/41; 3G B1/2/3/4/5/8; 2G 850/900/1800/1900 MHz |
| SIM | 1 nano SIM + 1 eSIM (dual SIM) |
| GPS/GNSS | GPS, GLONASS, Galileo, BeiDou, QZSS – dual-band |
| Voice & Audio | Speaker, two microphones with noise cancellation, speakerphone, vibration; Bluetooth headset support; voice calls via mobile network |
| Ports | USB-C; POGO contacts for cradles and accessories |
| Sensors | Light sensor, proximity sensor, accelerometer, gyroscope, magnetometer (eCompass) |
| Notifications | Audible tone, multi-colour LEDs, vibration |
| Battery | 4000 mAh / 3.85 V Li-ion smart battery (SX2X-BATT-S40); hot-swappable; optional 6000 mAh extended battery |
| Charging | Via USB-C (e.g. SMXX-PWSP-CEU fast-charging adapter with cable) or in the SM2X-2CRD-C00 / SX2X-8CRD-C00 cradles – not included |
| Form Factor | Full-touch rugged mobile computer (smartphone format) |
| Dimensions | 77 × 167 × 12.9 mm (W × H × D) |
| Weight | 240 g |
| Drop Spec | 1.5 m to concrete (1.8 m with boot) across the operating temperature range per MIL-STD-810H |
| Tumble Spec | 1,000 tumbles at 0.5 m (without boot); 1,000 tumbles at 1 m (with boot) |
| Sealing | IP67 |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −30 °C to 70 °C |
| Humidity | 5–95% RH non-condensing |
| Software & Management | M3 SPEEDPACK incl. StartUp (mass configuration via barcodes / PC); MDM support (e.g. SOTI) |
| Colour | Black |
| Warranty | 12 months (M3 Mobile 1-year hardware warranty); 3- and 5-year M3 service packages available |
| In the Box | M3 Mobile SM24 X mobile computer (SM244E-W2CHSS-HF), 4000 mAh Li-ion battery (SX2X-BATT-S40), Google Mobile Services (GMS) licence preinstalled, quick start guide – charger / USB power adapter, USB-C cable, charging cradle, hand strap and SIM card NOT included (order separately) |
The SM24 comes as the Wi-Fi model SM24 W and the 4G LTE model SM24 X, both with the CM60E 2D imager. Working on-site only? The M3 Mobile SM24 W (SM240E-W2CHSS-HF) is the more affordable Wi-Fi-only sister model. For a Full HD+ display, 5G and the SE5500 Smart Focus scanner choose the M3 Mobile SM25; the flagship model is the M3 Mobile SM30. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Available Versions
SM240E-W2CHSS-HF
SM24 W
Wi-Fi only
CM60E standard range
8 GB / 128 GB
Android 16 (GMS)
Standard 4000 mAh battery
Charger not included
portable data collection device, 2D, imager, 15.2 cm (6''), Touchscreen, resolution: 720x1440 pixels, speaker, Camera (16 MP, auto-focus), front camera (8 MP), hot swappable, vibration, connection: USB-C, Bluetooth (Class 5.3), Wi-Fi (Wi-Fi 6E), NFC, Micro SD-Slot, Qualcomm Octa Core, 2.4 GHz, RAM: 8 GB, Flash: 128 GB, OS: Android (16), incl.: Google Mobile Services, 4000 mAh, removable battery, protection class: IP67, MIL-STD 810H, colour: black
SM244E-W2CHSS-HF
Selected
SM24 X
4G LTE + GPS
CM60E standard range
8 GB / 128 GB
Android 16 (GMS)
Standard 4000 mAh battery
Charger not included
portable data collection device, 2D, imager, 15.2 cm (6''), Touchscreen, resolution: 720x1440 pixels, GPS, speaker, Camera (16 MP, auto-focus), front camera (8 MP), hot swappable, vibration, connection: USB-C, Bluetooth (Class 5.3), Wi-Fi (Wi-Fi 6E), SIM, eSIM, 4G (LTE), NFC, Micro SD-Slot, Qualcomm Octa Core, 2.4 GHz, RAM: 8 GB, Flash: 128 GB, OS: Android (16), incl.: Google Mobile Services, 4000 mAh, removable battery, protection class: IP67, MIL-STD 810H, colour: black
