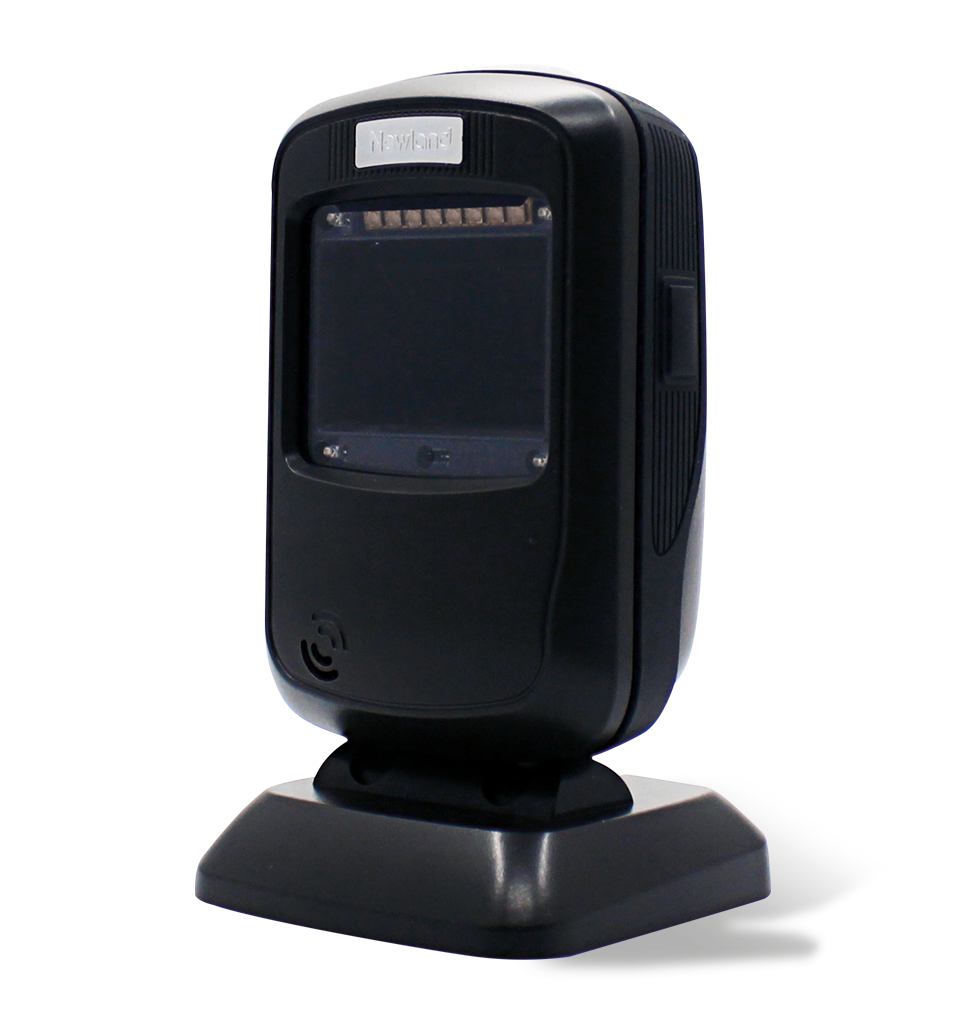

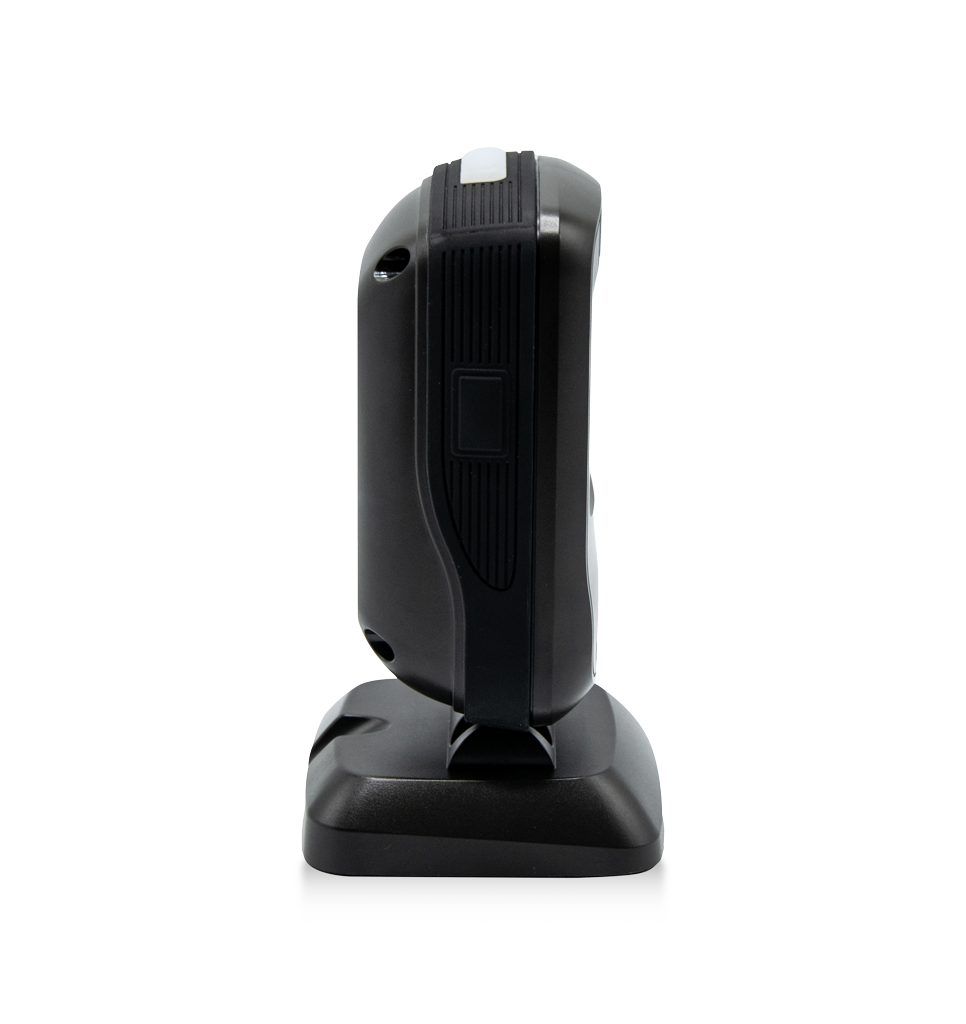

The Newland FR40 Koi is a premium corded presentation scanner for checkout counters and service desks – and the first presentation scanner on the market with a megapixel camera. Its 1280 × 800 sensor reads all major 1D and 2D barcodes, including dense and complex codes, on paper labels and products as well as on phone screens. An infrared sensor wakes the scanner the instant a code is presented, and its soft illumination, angled at 10°, is comfortable for customers and staff alike. With IP52 sealing, a 1.2 m drop rating and a 5-year (60-month) Newland warranty, it is built for years of daily use. This version, NLS-FR4080-27, is the RS-232 kit: it is supplied with a 2 m RS-232 cable – a 5 V power supply is not included and must be ordered separately.
📦 What's in the box – NLS-FR4080-27
- ✅ Newland FR40 Koi presentation scanner – black, with integrated base – stands directly on the counter; USB and RS-232 (depending on the cable)
- ✅ RS-232 cable – straight, 2 m, 9-pin serial connector with power jack
- ❌ Power supply – required for RS-232 – not included, please order separately (see note below)
⚠️ Please note: a power supply is not included. In RS-232 mode the FR40 Koi needs a separate 5 V power supply, which plugs into the power jack of the RS-232 cable – please order one together with your scanner (our team will be happy to help). Prefer a complete set? The NLS-FR4080-28 kit includes both the RS-232 cable and the power supply. Connecting to a USB port instead? Then no power supply is needed – simply choose the NLS-FR4080-20 version with USB cable.
💡 No separate stand needed – the FR40 Koi stands on its own integrated base. The interface cable is detachable, so you can switch between USB and RS-232 later simply by changing the cable (see the compatible Newland cables in the accessories).
Key Features
- First presentation scanner with a megapixel camera – the 1280 × 800 CMOS sensor reads all major 1D and 2D codes (QR Code, Data Matrix, Aztec, PDF417 and more) quickly and accurately, including dense and complex codes; GS1 ready.
- Paper and phone screens – reads codes from labels, receipts and products as well as from smartphone displays: mobile tickets, e-coupons, loyalty cards and payment QR codes.
- Infrared trigger – the built-in IR sensor detects a presented item instantly and starts scanning automatically (sense mode), for a fast, hands-free checkout flow.
- Two scan modes at the push of a button – a switch on the scanner toggles between Normal mode and High Motion Tolerance mode for fast-moving items (up to 2.5 m/s); a red or green LED shows which mode is active.
- Comfortable illumination – the scan window is angled at 10° and the soft white illumination does not dazzle customers or staff; facing outwards, it does not draw unnecessary attention.
- Built to last – IP52 sealing against dust and water, withstands multiple 1.2 m drops to concrete, ±14 kV ESD protection and a 5-year warranty.
- Dual interface: USB and RS-232 – the interface is determined by the detachable cable: USB HID keyboard, USB CDC (virtual COM), HID-POS and IBM SurePOS, or RS-232; JPOS/OPOS drivers and the EasySet configuration tool are available.
Ideal Applications

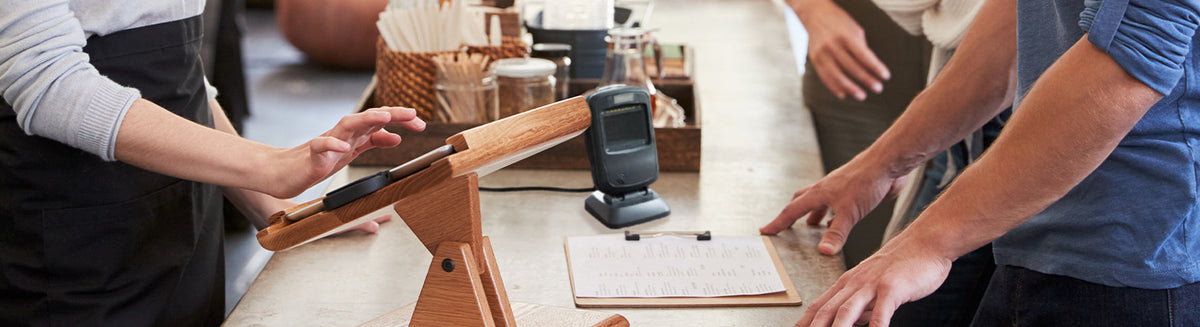

- Retail checkouts and POS counters – products, receipts, loyalty cards and mobile coupons
- Pharmacies – dense 2D codes on medicine packs and prescriptions
- Ticket verification – event, cinema and travel tickets on paper or phone screens
- Hospitality – hotels, restaurants and cafés: vouchers, booking codes and order codes
- Postal and parcel counters – shipping labels and pick-up codes
All FR4080 Koi Versions
The highlighted row is the version you are currently viewing.
| Part Number | Cable | Power Supply | |
|---|---|---|---|
| NLS-FR4080-20 | ✅ USB, 2 m | Not needed (USB-powered) | View product |
| NLS-FR4080-27 (this version) | ✅ RS-232, 2 m | ❌ Not included (required) | Viewing |
| NLS-FR4080-28 | ✅ RS-232, 2 m | ✅ Included (EU/UK/US plugs) | View product |
Technical Specifications
| Part Number | NLS-FR4080-27 |
|---|---|
| Model | Newland FR40 Koi (FR4080) |
| Scanner Type | Corded presentation (hands-free) 2D area imager with integrated base – reads 1D and 2D barcodes on paper, labels and phone screens |
| Image Sensor | 1280 × 800 CMOS (megapixel) |
| Illumination | White LED, soft illumination; scan window angled at 10° |
| Scan Modes | Sense mode with infrared (IR) sensor (default), level, continuous, pulse; switch for Normal / High Motion Tolerance mode |
| Depth of Field | EAN-13 13 mil: 10–210 mm; QR Code 15 mil: 10–180 mm |
| Field of View | 51° horizontal, 32° vertical |
| Scan Angles | Roll 360°, pitch ±50°, skew ±45° |
| Motion Tolerance | 2.5 m/s |
| Minimum Print Contrast | 25% |
| 1D Symbologies | All major 1D symbologies, incl. EAN-13, EAN-8, UPC-A, UPC-E, ISBN, ISSN, Code 128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 DataBar, MSI-Plessey, Plessey |
| 2D Symbologies | All major 2D symbologies, incl. QR Code, Micro QR, Data Matrix, Aztec, PDF417 |
| GS1 | GS1 Ready |
| Host Interface | USB (HID keyboard, USB CDC virtual COM, HID-POS, IBM SurePOS) and RS-232 – the interface is determined by the detachable cable; JPOS/OPOS drivers available |
| User Indicators | Beeper, good-read LED; red/green LED for the active scan mode |
| Color | Black |
| Dimensions (W × D × H) | 83 × 81 × 148 mm |
| Weight | 293 g |
| Power | 5 VDC ± 5%; 219 mA operating (typical), 1041 mW – RS-232 requires a 5 V power supply (not included) |
| Environmental Sealing | IP52 |
| Drop | 1.2 m (multiple drops to concrete, one per side) |
| Electrostatic Discharge | ±14 kV (air discharge), ±8 kV (direct discharge) |
| Operating Temperature | −20 °C to 60 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 5–95% RH, non-condensing |
| Software | Newland EasySet configuration tool |
| Certifications | FCC Part 15 Class B, CE EMC Class B, RoHS |
| Warranty | 60 months (5 years) |
| In the Box | FR40 Koi presentation scanner (black, integrated base), RS-232 cable (straight, 2 m, 9-pin, with power jack) – 5 V power supply NOT included (required for RS-232, order separately); no stand needed (integrated base) |
Not sure which version to choose? All three versions are the same FR40 Koi scanner – they differ only in the supplied cable and power: NLS-FR4080-20 with USB cable for PCs and POS systems (powered via USB), NLS-FR4080-27 with RS-232 cable (the required power supply is not included) and NLS-FR4080-28 with RS-232 cable and power supply – the complete set for a serial connection. Compare other hands-free models in our Presentation Barcode Scanners collection or contact our team for volume pricing and integration advice.
