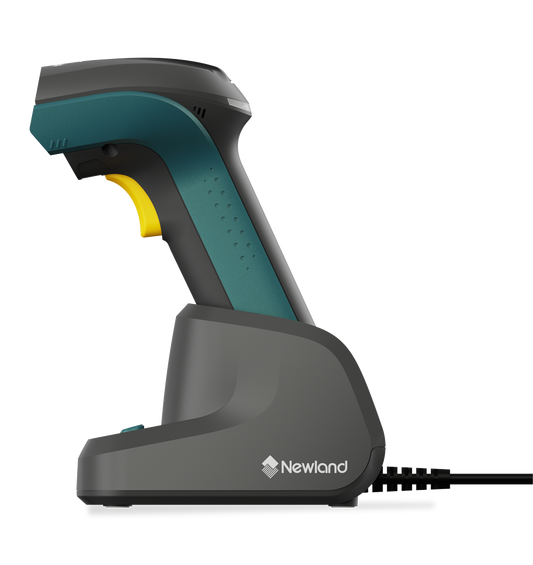

The Newland NVH220 Lophius is an industrial 2D handheld scanner built for direct part marking (DPM): it reads laser-etched and dot-peened Data Matrix codes as well as ordinary printed 1D and 2D barcodes. AI-powered decoding locates and reconstructs damaged, distorted or poorly marked codes, even on reflective and curved surfaces, a versatile multi-light illumination system adapts to every material, and IP64 sealing with 1.8 m drop resistance makes it ready for the production floor and the warehouse. This version, NLS-NVH220B-V2-XD, is the NVH220 Lophius AI Bluetooth kit (second generation, V2): it is supplied with a 2900 mAh battery, a charging and communication cradle, a 2 m USB cable and a 5 V power supply – ready to use, with a USB, RS-232 or Ethernet connection to the host.
📦 What's in the box – NLS-NVH220B-V2-XD
- ✅ Newland NVH220 Lophius AI scanner – cordless 2D/DPM imager with AI decoding – Bluetooth 5.0
- ✅ Rechargeable battery – Li-ion, 2900 mAh – at least 17 hours of continuous operation or up to 60,000 scans per charge; charges in approx. 3 hours
- ✅ Charging and communication cradle – Newland CD220 – charges the scanner, receives its scans via Bluetooth 5.0 and passes them to the host over USB, RS-232 or Ethernet
- ✅ USB cable – straight, 2 m – connects the cradle to a USB port on your PC or host
- ✅ 5 V power supply – 5 V / 3 A – powers the cradle; required for RS-232 and Ethernet connections
💡 How it connects: scan the pairing code on the cradle (or press its Pair button) to link the scanner. Scans are then sent via Bluetooth 5.0 to the cradle, which passes them to your PC, PLC or MES over USB, RS-232 or Ethernet (TCP/IP, Modbus TCP, PROFINET, MELSEC/SLMP). Range: up to 150 m in line of sight. RS-232 and Ethernet need the included power supply.
💡 To connect the cradle to your network, add the Newland CBL-0275E Ethernet cable (3 m). To keep the scanner within reach on a wall or machine, add the Newland NLS-STD-WM001 wall mount clip.
Key Features
- Reads DPM codes – decodes direct part marks such as laser-etched and dot-peened Data Matrix codes on metal, plastic and other materials, as well as printed 1D and 2D barcodes.
- AI-powered decoding – Newland's AI barcode detection locates and reconstructs damaged, distorted or poorly marked codes, even on reflective and curved surfaces; intelligent learning adjusts brightness and light source to each scene.
- Built for industry – IP64 sealing against dust and splashing water and resistance to repeated 1.8 m drops; beep, LED and vibration feedback confirm every read.
- Megapixel imager with laser aimer – 1280 × 800 sensor, 650 nm crosshair laser aimer, direct red and blue LEDs and diffuse white light, switchable with the auto-learning button on top of the scanner.
- Bluetooth 5.0 with up to 150 m range – a low-latency, interference-resistant link to the charging and communication cradle (line of sight).
- Battery for a full shift – 2900 mAh for at least 17 hours of continuous operation or up to 60,000 scans per charge; recharges in approx. 3 hours.
- Industrial connectivity – the cradle connects to the host via USB, RS-232 or Ethernet and supports TCP/IP, Modbus TCP, PROFINET and MELSEC/SLMP for PLC and MES integration. 3-year warranty, extendable to 5 years.
Ideal Applications
- Automotive and metalworking – laser-etched and dot-peened DPM codes for part traceability
- Electronics manufacturing – Data Matrix codes on components and circuit boards
- Production lines and work-in-process tracking – integration with PLC and MES systems
- Warehousing and logistics – goods receiving, picking and inventory
- Transportation and maintenance – identification of assets and spare parts
All NVH220 Lophius Versions
The highlighted row is the version you are currently viewing.
| Part Number | Generation | Connection | In the Box | |
|---|---|---|---|---|
| NLS-NVH220-V2-XD | Lophius AI (V2) | Corded (USB / RS-232 / Ethernet) | USB cable + power supply | View product |
| NLS-NVH220B-V2-XD (this version) | Lophius AI (V2) | Bluetooth 5.0 (cradle: USB / RS-232 / Ethernet) | Cradle + USB cable + power supply | Viewing |
| NLS-NVH220-BT | 1st generation (discontinued) | Bluetooth 5.0 (docking station: USB / RS-232) | Docking station + USB cable | View product |
Technical Specifications
| Part Number | NLS-NVH220B-V2-XD |
|---|---|
| Model | Newland NVH220 Lophius AI Bluetooth (Lophius II, V2) |
| Scanner Type | Cordless industrial handheld 2D area imager with AI decoding – reads DPM, 1D and 2D codes |
| Connectivity | Cordless – Bluetooth 5.0 to the included charging and communication cradle |
| Image Sensor | 1280 × 800 CMOS (megapixel) |
| Light Source | Aiming: 650 nm crosshair laser; illumination: direct red & blue LEDs, diffuse white LED |
| Maximum Resolution | 1D: ≥ 1.25 mil; 2D: ≥ 2.82 mil |
| Depth of Field (typical) | EAN-13 13 mil: 15–220 mm; Code 39 5 mil: 0–160 mm; Code 39 20 mil: 65–350 mm; QR 10 mil: 0–160 mm; QR 20 mil: 0–225 mm |
| Field of View | Horizontal 33°, vertical 22° |
| Reading Angles | Roll 360°, pitch ±50°, skew ±50° |
| Minimum Print Contrast | 15% |
| 1D Symbologies | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39, AIM 128, GS1 Composite, GS1-128 (UCC/EAN-128), ISBT 128, Code 11, MSI-Plessey, Plessey |
| 2D Symbologies | QR Code, Micro QR, PDF417, Data Matrix (incl. DPM marks), Aztec; OCR optional |
| Wireless Communication | Bluetooth 5.0 |
| Radio Range | Up to 150 m (line of sight) |
| Base Station | Newland CD220 charging and communication cradle – included |
| Host Interfaces | Cradle to host: USB, RS-232, Ethernet; protocols TCP/IP, Modbus TCP, PROFINET, MELSEC/SLMP (RS-232 and Ethernet require the included power supply) |
| Battery | Li-ion, 2900 mAh |
| Operating Time | ≥ 17 hours of continuous operation or up to 60,000 scans per charge |
| Charging Time | Approx. 3 hours |
| Reading Indicators | Beeper, LED, vibration |
| Color | Black |
| Dimensions | Scanner: 68 × 86 × 180 mm; cradle: 103 × 127 × 123 mm (W × D × H) |
| Weight | Scanner: 218 g (with battery); cradle: 217 g |
| Current Draw | 370 mA operating, 90 mA standby (1,400 mW typical) |
| Operating Temperature | −20 °C to 50 °C (charging: 0 °C to 45 °C) |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 5–95% RH, non-condensing |
| Electrostatic Discharge | ±16 kV (air discharge), ±8 kV (direct discharge) |
| Drop Resistance | 1.8 m |
| Environmental Sealing | IP64 (IP42 when docked in the cradle) |
| Software & Management | Newland EasySet configuration tool |
| Certifications | CE, CCC, FCC, RoHS 2.0, IEC 62471, IEC 60825, ISO 16750 |
| Warranty | 36 months (extendable to 5 years) |
| In the Box | NVH220 Lophius AI Bluetooth scanner with Li-ion battery (2900 mAh), CD220 charging and communication cradle (USB / RS-232 / Ethernet), USB cable (straight, 2 m), 5 V / 3 A power supply |
Not sure which version you need? For a fixed workstation, the corded NLS-NVH220-V2-XD connects via USB, RS-232 or Ethernet and comes with a 5-year warranty. To move freely around the production line or warehouse, choose the Bluetooth NLS-NVH220B-V2-XD with charging and communication cradle and up to 150 m range. The first-generation NLS-NVH220-BT has been discontinued by Newland and is succeeded by the NLS-NVH220B-V2-XD. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
Available Versions
NLS-NVH220-BT
Wired Interfaces
USB, RS232
Form Factor
Cordless (Bluetooth)
Bluetooth scanner, industry, 2D, imager (high density), vibration, connection: USB, RS232, Bluetooth, PS/2, incl.: cable (USB), power supply unit (EU, UK, US), charging/transmitter cradle (presentation), battery, protection class: IP64, colour: black, orange
NLS-NVH220-V2-XD
Wired Interfaces
USB, RS232, Ethernet
Form Factor
Corded
handheld scanner, industry, warehouse, 2D, imager, DPM, vibration, connection: multi-interface (RS232, USB, Ethernet), incl.: cable (USB, 2 m, straight), power supply unit, IP64
NLS-NVH220B-V2-XD
Selected
Wired Interfaces
USB, RS232, Ethernet
Form Factor
Cordless (Bluetooth)
Bluetooth scanner, industry, warehouse, 2D, imager, DPM, vibration, connection: Bluetooth (Class 5.0), multi-interface (RS232, USB, Ethernet), incl.: cable (USB, 2 m, straight), power supply unit, charging cradle, battery, 2900 mAh, IP64
455,54 €In Stock
