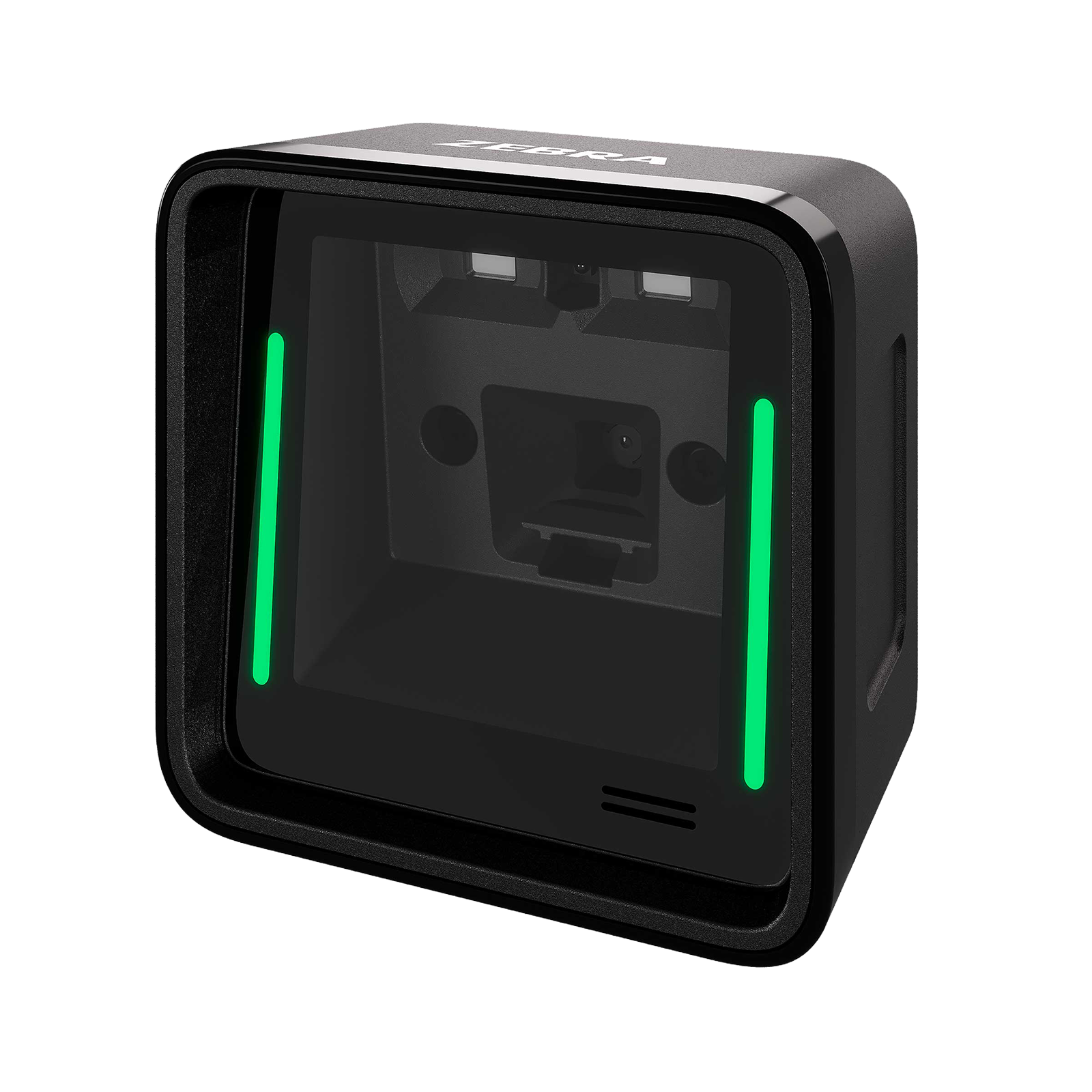

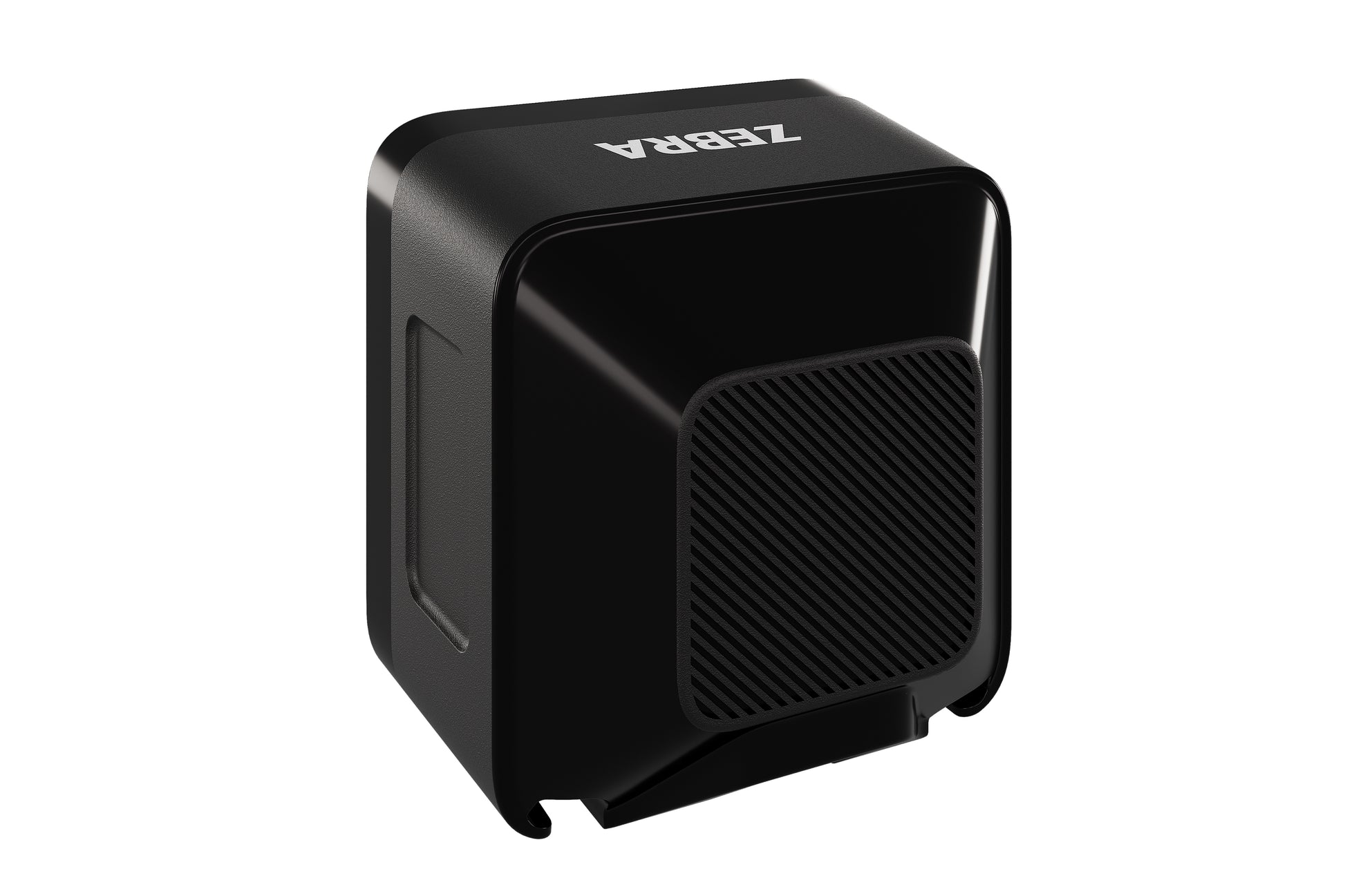

Zebra SP20 Presentation Scanner (SP2002-SR4UR700SGW)

The Zebra SP20 is a compact, budget-friendly single-plane presentation (hands-free) scanner for POS counters, quick-service restaurants, convenience stores and specialty retailers. Its 1-megapixel imager with a wide 62° × 41° field of view reads 1D, 2D, Digimarc and GS1 Digital Link barcodes – on labels and on phone screens – as items approach the window, bright green guide lines show where to scan, and Zebra's Simple Setup Experience gets it running in under five minutes. The scanner is backed by a 3-year (36-month) Zebra warranty. This version, SP2002-SR4UR700SGW, is the complete USB kit with the adjustable stand and an angled 2.1 m USB cable – ready to plug in and scan.

Key Features

• Fits the tightest counters – at just 7.5 × 7.5 × 5.7 cm and 110 g, the low-profile SP20 leaves valuable counter space free for product displays and impulse items.
• Large field of view, no sweet spot – the 62° × 41° field of view (up to 80% larger than competitive models, according to Zebra) captures barcodes as they approach the window, so items don't need to be positioned carefully.
• Clear visual guides – bright green indicator lines on the scan window show customers and staff exactly where to present a barcode – easy even for first-time users.
• Reads every barcode, every time – Zebra scanning technology reads damaged, poorly printed and low-contrast barcodes as well as mobile coupons and Digimarc barcodes.
• Ready for GS1 Digital Link – the wide field of view captures both the 1D UPC/EAN code and the 2D Digital Link code on the pack; 123Scan configures GS1 Digital Link in less than a minute.
• Operational in five minutes – scan the QR code on the scanner with your phone and Zebra's Simple Setup Experience guides you through a tailored setup with a few yes/no questions.
• Flexible mounting – adjustable stand (−14° to +30°), L bracket, flange bracket and a universal ¼″-20 thread for third-party mounts; with dimensions similar to competitive products, the SP20 is a drop-in replacement for existing installations.
• Eye-friendly illumination – recessed deep red LEDs are gentle on the eyes and switch off automatically between scans, so they don't distract at busy checkouts.
• USB or RS232 – the scanner is powered over the USB cable, no power supply needed; for an RS232 (TTL) connection use the RS232 cable CBL-R20755-01 and, if your POS port does not supply power, the 5 V power supply PWR-WUA5V4W04C.
• Built for busy counters – IP52 sealing and elevated electronics protect against dust and everyday spills, and the scanner withstands multiple 1.5 m drops to concrete.
• Zebra DNA management tools at no cost – 123Scan, Scanner SDK, Scanner Management Service (SMS), firmware updates without losing settings and Remote Diagnostics; 3-year Zebra warranty.

Ideal Applications

• Quick-service restaurants (QSRs) and cafés – a compact scanner for crowded order counters
• Convenience stores and small grocery stores – fast hands-free checkout of paper and mobile barcodes
• Small and specialty retailers – reliable scanning without added cost or complexity
• Kiosks and self-service stations – stand, L-bracket, flange-bracket or ¼″-20 mounting
• Check-in, admissions and ticketing – reading e-tickets and QR codes from phone screens
• Mobile couponing and loyalty programmes

All SP20 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? The USB kit SP2002-SR4UR700SGW has everything in one box – scanner, adjustable stand and USB cable. Choose SP2002-SR400000SGW (scanner with stand) if you already have a cable or need an RS232 connection, or the scanner-only SP2002-SR00004ZZWW if you will mount it on a wall, in a kiosk or on a bracket. Compare other hands-free models in our Presentation Barcode Scanners collection or contact our team for volume pricing.
