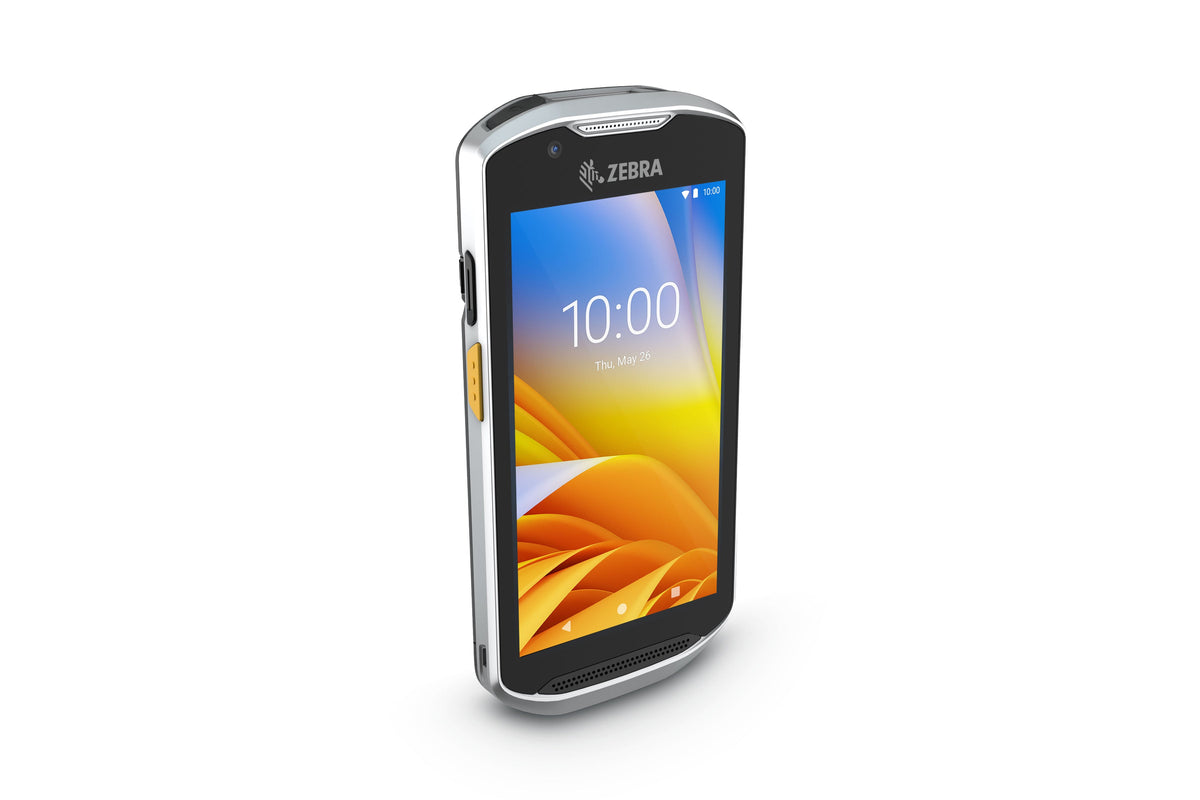

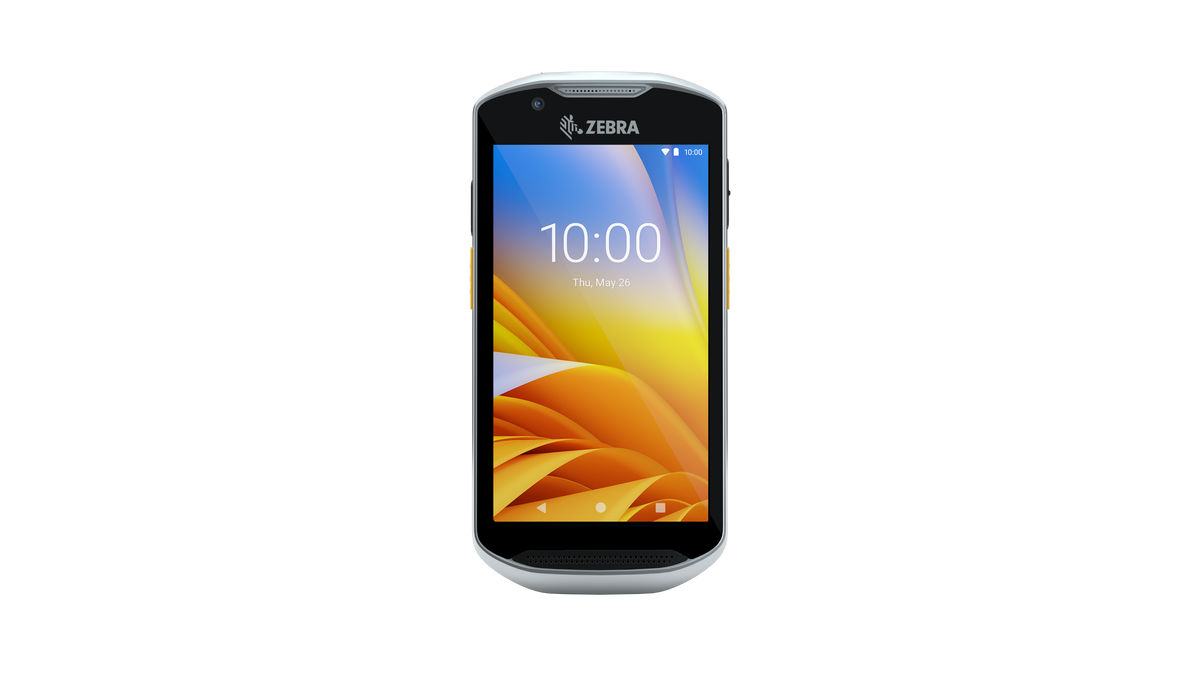

The Zebra TC52x is a rugged, smartphone-style Android mobile computer for retail, warehousing, hospitality, healthcare support and field operations. It combines a 5" Full HD touchscreen, the SE4720 1D/2D imager with a large scanning sweet spot, Qualcomm Snapdragon 660 performance, Wi-Fi with 2x2 MU-MIMO, Bluetooth and NFC with IP65/IP68 sealing in a slim 249 g design. This version, TC520K-1XFMU6P-A6, is the Wi-Fi-only model with 4 GB RAM / 32 GB Flash, Android with Google Mobile Services and a 4150 mAh PowerPrecision+ battery.
📦 What's in the box – TC520K-1XFMU6P-A6
- ✅ Zebra TC52x – mobile computer, black, Wi-Fi, Bluetooth, NFC, SE4720, 4 GB / 32 GB
- ✅ Battery – standard 4150 mAh Li-ion, user-replaceable (PowerPrecision+)
- ✅ Google Mobile Services (GMS) – licensed and preinstalled – Google Play and Google apps ready to use
- ✅ Regulatory guide – printed safety and regulatory information; user guides are a free download from Zebra
- ❌ Charger / power supply – NOT included – needed to charge the battery – see the options below
- ❌ Charging cradle – NOT included
- ❌ Hand strap – NOT included
⚠️ Please note: no charger, charging cable or cradle is included. To charge the TC52x, please order separately: the Zebra CBL-TC51-USB1-01 snap-on USB charging cable plus the Zebra PWR-WUA5V12W0EU USB power adapter; or the Zebra CRD-TC51-1SCU-01 single-slot charging cradle kit (power supply and DC cable included) plus the Zebra 50-16000-220R mains cord.
💡 Useful extras: a spare battery for hot-swapping (Zebra BTRY-TC51-43MA1-01); the Zebra BTRY-TC5X-BTBCN4MA-01 battery with BLE beacon, so lost devices can be found even when switched off; multi-slot charging cradles for teams (Zebra CRD-TC51-5SCHG-01, Zebra CRD-TC51-5SETH-01 or Zebra CRD-TC51-5SC4B-01); the Zebra SAC-TC51-4SCHG-01 4-slot spare battery charger; the Zebra SG-TC5X-EXO1-01 protective boot for extra drop protection; the Zebra TRG-TC5X-ELEC1-02 trigger handle for scan-intensive work (requires the Zebra SG-TC5X-EXONHS-01 protective boot); the Zebra SG-TC51-HLSTR1-01 holster; the Zebra KT-TC51-SCRNP1-01 tempered-glass screen protector; the Zebra CRD-TC5X-1SNWS-01 Workstation Connect cradle to turn the device into a desktop workstation or POS station; the Zebra ADP-RFD90-TC5X-0R adapter for mounting the device on an RFD90 UHF RFID sled; a service plan with fast repair and battery replacement (Zebra OneCare Essential 3 years (Z1AE-TC52XX-3C00) or Zebra OneCare Essential 5 years (Z1AE-TC52XX-5C00)).
Key Features
- Rugged, yet smartphone-slim – unibody design with sealed battery compartment, IP65/IP68, multiple 1.2 m drops to tile over concrete (1.8 m with rugged boot) and 500 tumbles; Corning Gorilla Glass on display and scan window.
- 5" Full HD display – 1920 × 1080 pixels, outdoor-readable, works when wet, with gloves or a stylus.
- Point-and-shoot scanning – SE4720 1D/2D imager with a sweet spot up to 60 cm and easy capture of large codes at close range; dual scan buttons and SimulScan.
- Fast Wi-Fi – 802.11ac with 2x2 MU-MIMO for more range and speed at lower power, Bluetooth with BLE and NFC (payment-ready).
- Snapdragon 660 platform – octa-core 2.45 GHz processor, 4 GB RAM and fast 32 GB UFS Flash, microSD up to 256 GB; upgradeable to Android 14.
- Full-shift power – 4150 mAh PowerPrecision+ battery with fast charging, two-minute warm swap and battery health metrics.
- Find misplaced devices – integrated Bluetooth beacon and Zebra Device Tracker support; optional BLE battery locates devices even when switched off.
- Clear voice and cameras – three microphones with noise cancellation, front speaker, HD Voice, dedicated PTT button and 3.5 mm audio jack; 13 MP rear and 5 MP front camera.
- Zebra Mobility DNA – StageNow, DataWedge, LifeGuard for Android, Device Diagnostics and more for easy deployment and management.
Ideal Applications
- Retail: price and stock checks, item locating, mPOS and click & collect
- Warehousing and logistics: picking, receiving and inventory
- Hospitality: order taking, ticketing and guest service
- Field service and asset management
- Direct store delivery and route accounting on site
- Manufacturing: parts inventory and work-in-progress tracking
Technical Specifications
| Part Number | TC520K-1XFMU6P-A6 |
|---|---|
| Model | Zebra TC52x (Wi-Fi model of the TC52x/TC57x series) |
| Operating System | Android with Google Mobile Services (GMS); upgradeable to Android 14 |
| Processor | Qualcomm Snapdragon 660 octa-core, 2.45 GHz |
| Memory (RAM / Flash) | 4 GB RAM / 32 GB UFS Flash |
| Expansion | User-accessible microSD slot, up to 256 GB SDXC |
| Display | 5.0" Full HD (1920 × 1080), LED backlight, optically bonded, outdoor-readable |
| Touch Panel | Dual-mode capacitive touch – bare or gloved finger or stylus (sold separately); Corning Gorilla Glass; water droplet rejection; anti-smudge coating |
| Keypad | On-screen keypad and Zebra Enterprise Keyboard |
| Buttons | Four programmable buttons: dual dedicated scan buttons, dedicated push-to-talk button, volume up/down |
| Scan Engine | SE4720 1D/2D imager – working range up to approx. 60 cm; Corning Gorilla Glass exit window |
| Rear Camera | 13 MP autofocus, flash LED, torch mode |
| Front Camera | 5 MP |
| Wi-Fi | IEEE 802.11a/b/g/n/ac/d/h/i/r/k/v/w/mc, 2x2 MU-MIMO, dual-band simultaneous; WPA3; fast roaming 802.11r / OKC / CCKM |
| Bluetooth | Bluetooth 5.0 with Bluetooth Low Energy (BLE); integrated Bluetooth beacon for Device Tracker |
| NFC | ISO 14443 A/B, FeliCa, ISO 15693; host card emulation |
| Mobile Data (WWAN) | Not available – Wi-Fi only |
| GPS/GNSS | Not available (TC57x only) |
| Voice & Audio | 3 microphones with noise cancellation, front speaker, speakerphone, HD Voice (SWB/FB), Bluetooth headsets, PTT headset support, 3.5 mm audio jack |
| Ports | USB 2.0 High Speed (host and client) via the bottom connector – snap-on USB cable or cradle |
| Sensors | Light sensor, magnetometer (eCompass), 3-axis accelerometer with MEMS gyro, proximity sensor |
| Battery | PowerPrecision+ Li-ion, min. 4150 mAh / 15.48 Wh, user-replaceable; fast charging; warm swap up to 2 minutes; optional BLE beacon battery |
| Charging | Via snap-on USB charge cable + USB power adapter or a charging cradle – not included |
| Form Factor | Rugged all-touch handheld with 5" display, smartphone style |
| Dimensions | 155 × 75.5 × 18.6 mm (L × W × H) |
| Weight | 249 g with battery |
| Drop Spec | Multiple 1.2 m drops to tile over concrete (−10 °C to 50 °C); multiple 1.8 m drops to concrete with rugged boot (MIL-STD-810G) |
| Tumble Spec | 500 tumbles at 0.5 m (IEC) |
| Sealing | IP68 and IP65 (with battery) |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 5–95% non-condensing |
| Software & Management | Zebra Mobility DNA: StageNow, DataWedge, SimulScan, LifeGuard for Android, Device Tracker, Device Diagnostics, Enterprise Browser |
| Colour | Black |
| Warranty | 12 months (Zebra 1-year hardware warranty); Zebra OneCare service plans available |
| In the Box | Zebra TC52x mobile computer (TC520K-1XFMU6P-A6), 4150 mAh PowerPrecision+ Li-ion battery, Google Mobile Services (GMS) licence preinstalled, regulatory guide – charger/power supply, USB charge cable (snap-on), charging cradle and hand strap NOT included (order separately) |
The TC52x is the Wi-Fi model of Zebra's TC52x/TC57x series, the second generation of the best-selling TC52/TC57. Its current successor is the Zebra TC53e. Need a tougher device for all-day warehouse or field use? Step up to the Zebra TC73. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
