BIXOLON XD3-40d Desktop Label Printer (XD3-40DK/BEG)

Regular price 183,67 € +VAT
Print Method
Direct thermalThermal transfer
Wired Interfaces

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

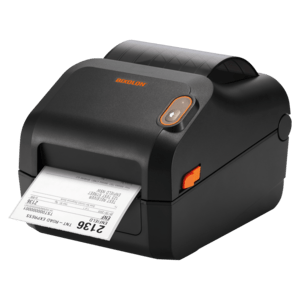

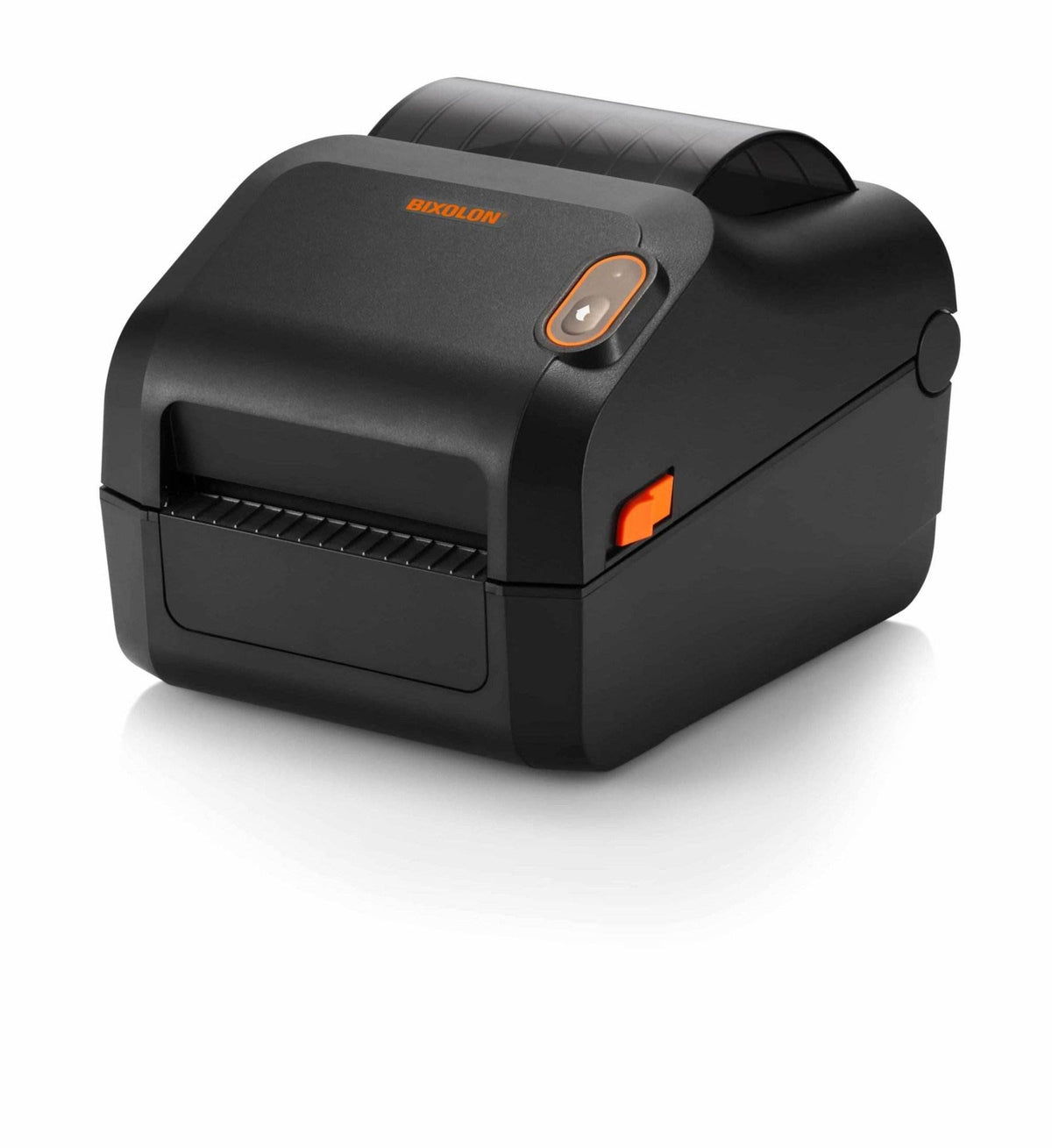

BIXOLON XD3-40d 4-inch direct thermal desktop label printer, black (XD3-40DK/BEG) – front view
BIXOLON XD3-40d Desktop Label Printer (XD3-40DK/BEG)
Regular price 183,67 € +VAT

The BIXOLON XD3-40d (XD3-40DK/BEG) is a compact, cost-effective 4-inch desktop label printer for direct-thermal printing at 203 dpi and up to 127 mm/s (5 ips). It takes label rolls up to 127 mm on 1" or 1.5" cores, speaks ZPL II and EPL via BPL-Z™/BPL-E™ emulation – switching languages automatically – and connects via USB. Power adapter, EU power cord and USB cable are included – ready to print.

📦 What's in the box – XD3-40DK/BEG

  • ✅ BIXOLON XD3-40d label printer – 203 dpi, USB
  • ✅ Power supply – external AC/DC power adapter, 100–240 V AC
  • ✅ Power cord – EU plug (Schuko)
  • ✅ USB cable – USB A-to-B – connect and print straight away
  • ✅ Setup guide – quick start guide
  • ✅ Drivers & label software – Windows/Mac/Linux drivers, Label Artist™-II and BarTender® UltraLite – free download from BIXOLON
  • ❌ Labels – NOT included – order labels to suit your application (see compatible labels below)

✅ Ready to print: power adapter, power cord and USB cable are in the box – you only need labels.

💡 Useful extras: the field-installable BIXOLON Peeler-XD3/5-Black peeler; the BIXOLON LES-400G external roll holder for large rolls; BIXOLON PCP-R200II/STD printhead cleaning pens.

Key Features

  • Direct thermal at 203 dpi – up to 127 mm/s (5 ips), max. print width 104 mm; no ribbon needed
  • Media 15–118 mm wide, rolls up to 127 mm on 25.4–38.1 mm cores, fanfold; gap, black-mark, notch and continuous media with adjustable black-mark sensor
  • USB as standard – plug in and print (a USB + RS-232 + Ethernet version is also available)
  • Simple operation with a single status LED and feed button; easy media sensor set-up
  • 64 MB SDRAM and 128 MB Flash; SLCS™, BPL-Z™ (ZPL II) and BPL-E™ (EPL) emulation (BPL-D™ optional) with automatic language switching
  • Easy paper loading with adjustable guide and holder; tool-less maintenance of printhead and platen roller; optional peeler and external paper supply
  • Label Artist™-II and BarTender® UltraLite, Windows (Europlus/Seagull), Linux/Mac CUPS, virtual COM and OPOS drivers, Windows and Linux SDKs
  • ENERGY STAR® certified, compact 181 × 222 × 168 mm footprint

Ideal Applications

  • Shipping, parcel and e-commerce labels
  • Retail – price, shelf and promotion labels
  • Healthcare – specimen, pharmacy and patient labels
  • Food service – date, ingredient and allergen labels
  • Warehousing – picking, inventory and location labels

All XD3-40 Series Versions

The highlighted row is the version you are currently viewing.

Part Number Model Resolution Interfaces
XD3-40dEK/BEG XD3-40d 203 dpi USB, RS-232, Ethernet View product
XD3-40DK/BEG (this version) XD3-40d 203 dpi USB Viewing
XD3-40tEK/BEG XD3-40t 203 dpi USB, RS-232, Ethernet View product
XD3-40tK/BEG XD3-40t 203 dpi USB View product

Technical Specifications

Part Number XD3-40DK/BEG
Model BIXOLON XD3-40d (XD3-40 Series)
Printer Type 4-inch desktop direct thermal label printer
Print Method Direct thermal
Resolution 203 dpi (8 dots/mm)
Print Speed Up to 127 mm/s (5 ips)
Max Print Width 104 mm (4.09")
Max Print Length 1,000 mm (39.4")
Media Width 15–118 mm (0.59"–4.65"), incl. liner
Media Thickness 0.06–0.20 mm
Roll Diameter Up to 127 mm (5") OD
Core Size 25.4–38.1 mm (1"–1.5")
Media Types Gap (die-cut), black mark, notch, continuous, fanfold
Sensors Transmissive gap sensor (fixed), reflective black-mark sensor (adjustable), head-open sensor
Interfaces USB (Type B)
Wireless None
Memory 64 MB SDRAM, 128 MB Flash
Real-Time Clock Not supported
Printer Languages SLCS™, BPL-Z™ (ZPL II compatible), BPL-E™ (EPL compatible), BPL-D™ (optional); automatic language switching
Fonts / Character Sets Bitmap fonts (10 SLCS, 16 BPL-Z, 5 BPL-E, 9 BPL-D), scalable fonts (1 SLCS, 1 BPL-Z, 1 BPL-D), 23 code pages, Unicode (UTF-8, UTF-16LE/BE)
Barcodes 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8/13, Industrial/Interleaved/Standard 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar, UPC-A/E, IMB; 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39
Display No LCD – single status LED and feed button
Media Options Tear-off (standard); peeler (optional)
Options Peeler, external paper supply, serial cable
Drivers & Software Windows driver (Europlus / Seagull), Linux/Mac CUPS, virtual COM USB/Ethernet, utility program, OPOS driver, BarTender® UltraLite for BIXOLON, Label Artist™-II, Windows and Linux SDKs
Power Supply External AC/DC power adapter, 100–240 V AC, 50/60 Hz; ENERGY STAR® certified
Dimensions (W × D × H) 181 × 222 × 168 mm
Weight 1.7 kg
Color Black
Operating Temperature 0–40 °C
Storage Temperature −20–60 °C
Humidity Operating 10–80% RH, storage 10–90% RH (non-condensing)
Warranty 36 months
In the Box BIXOLON XD3-40d printer (203 dpi, USB), external AC/DC power adapter (100–240 V AC), power cord (EU plug), USB cable, quick start guide; drivers and Label Artist-II / BarTender UltraLite software as free download – labels NOT included

Need an LCD, Wi-Fi or Bluetooth, 300 dpi or faster printing? Take a look at the BIXOLON XD5-40IId (XD5-40IIdOEWK/BEG) from the XD5-40II Series. All XD3-40 versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
