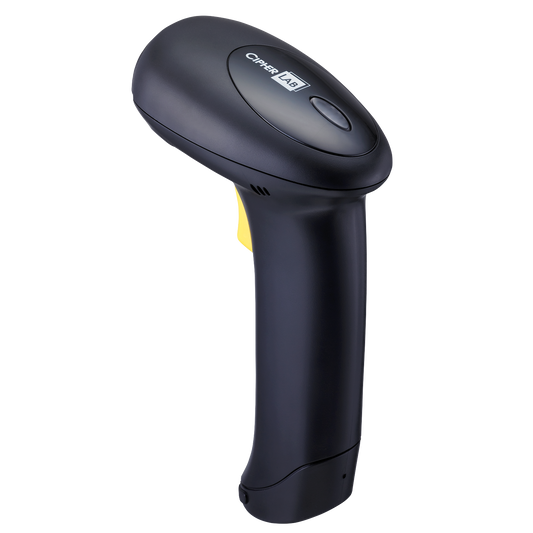

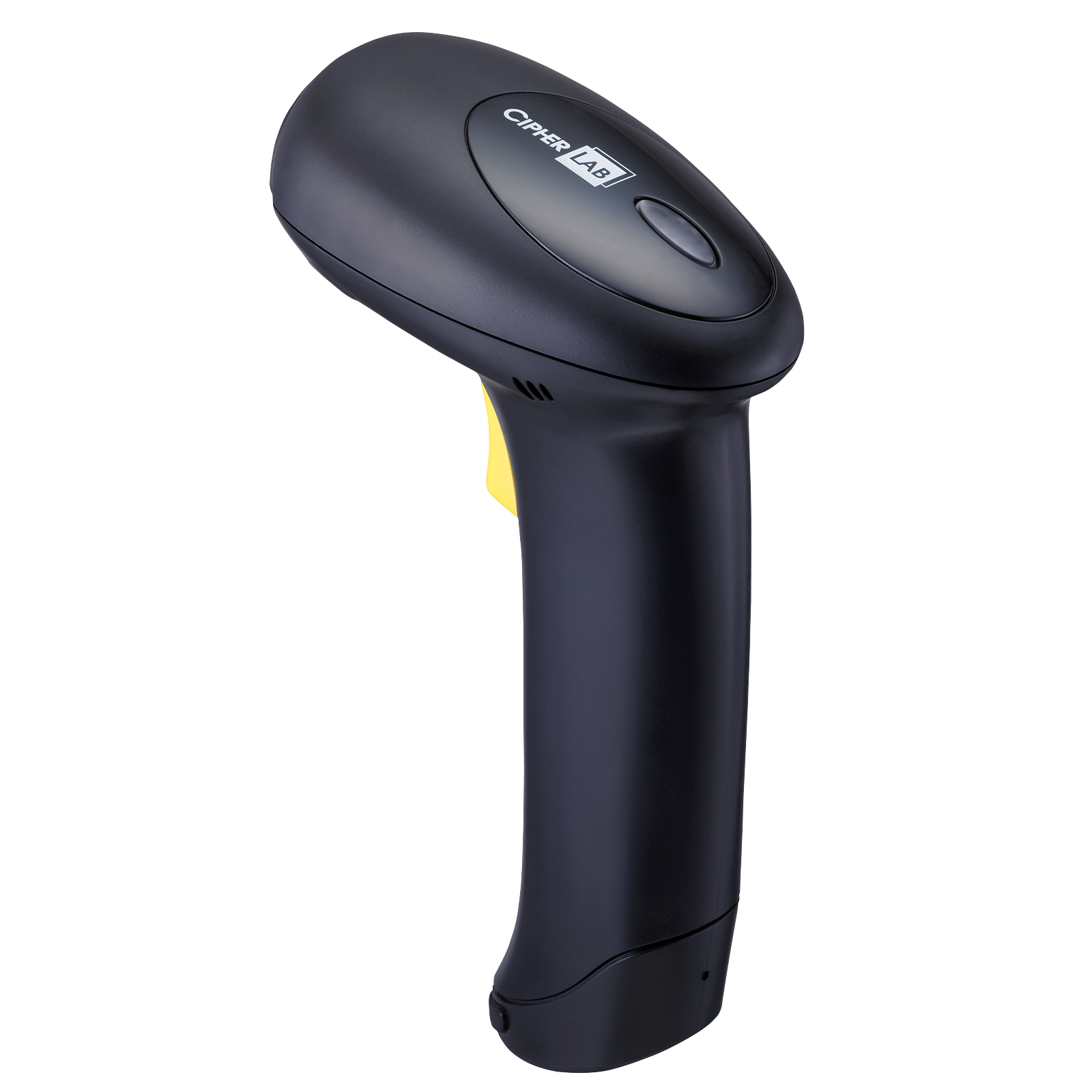

CipherLab 1504 Barcode Scanner (A1504P2BKU001)

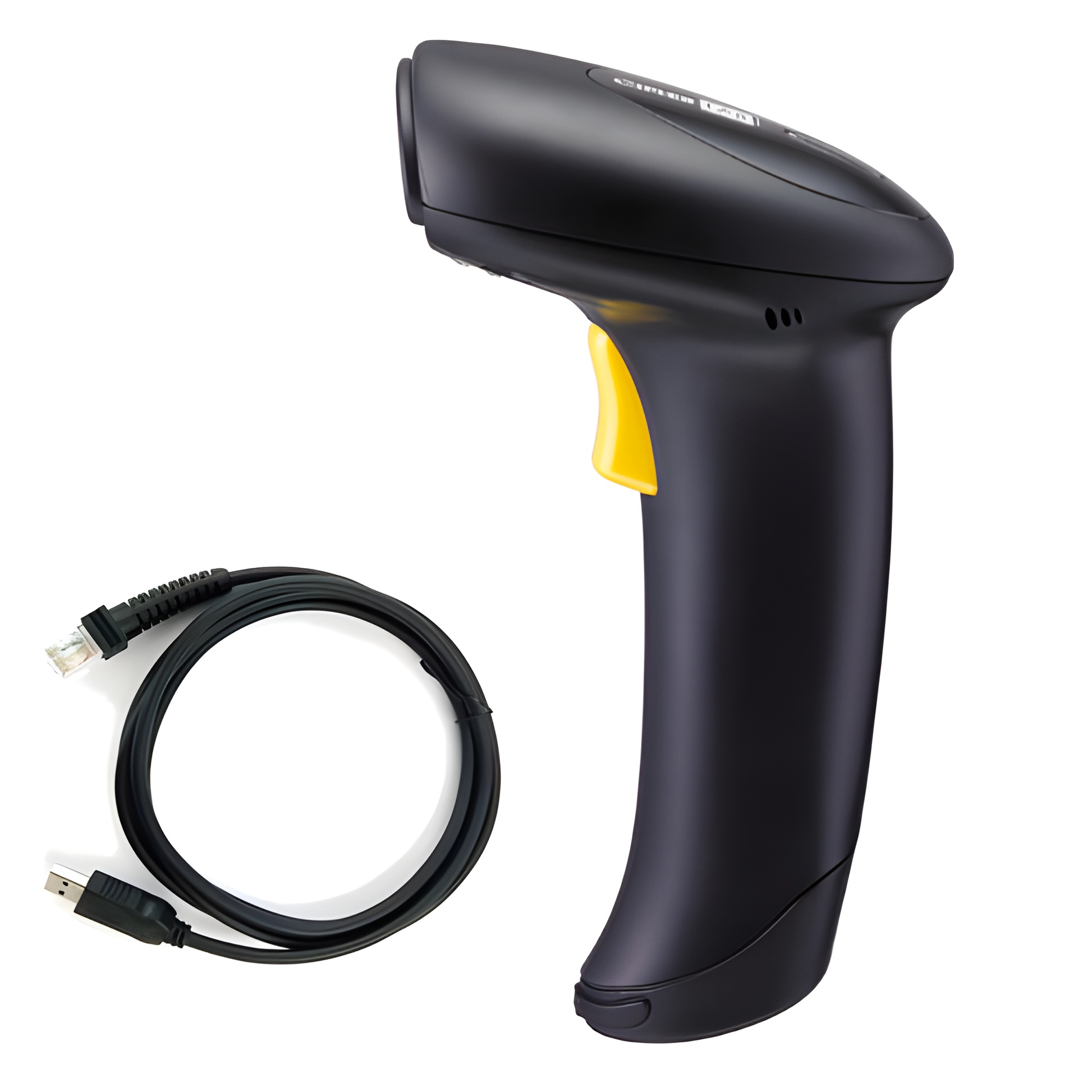

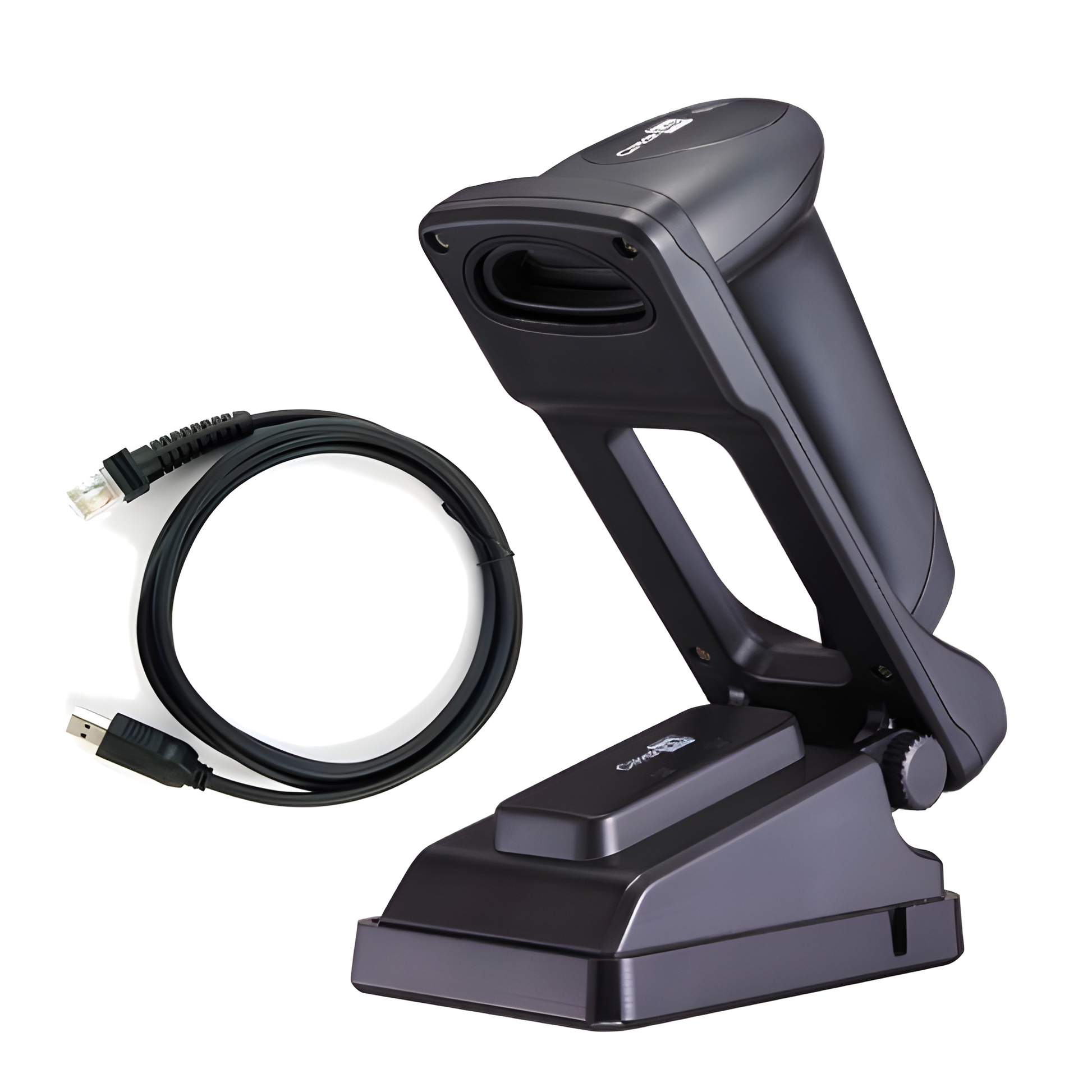

The CipherLab 1504P is a corded handheld 2D scanner with a fast 1280 × 800 imager – it reads all common 1D and 2D barcodes, including QR codes and Data Matrix, at up to 60 scans per second. As part of CipherLab's 1500 series of general-purpose handheld scanners, it combines an ergonomic design with durability (multiple 1.2 m drops onto concrete) – a dependable everyday tool for retail checkouts, healthcare, post offices, goods receiving and inventory. This version, A1504P2BKU001, is the USB kit with stand: it is supplied with a USB cable and an auto-sense stand – plug it into your PC or POS system and scan by hand or hands-free; it is powered via USB, so no power supply is needed.

Key Features

• Fast 2D imager – the 1280 × 800 CMOS imager with warm white LEDs reads all common 1D codes plus PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR, Aztec and MaxiCode at up to 60 scans per second, with a resolution down to 3 mil (1D) and 5 mil (2D).
• Plug and play – interchangeable USB, RS232 and keyboard wedge (KBW) cables; via USB the scanner is powered by the host.

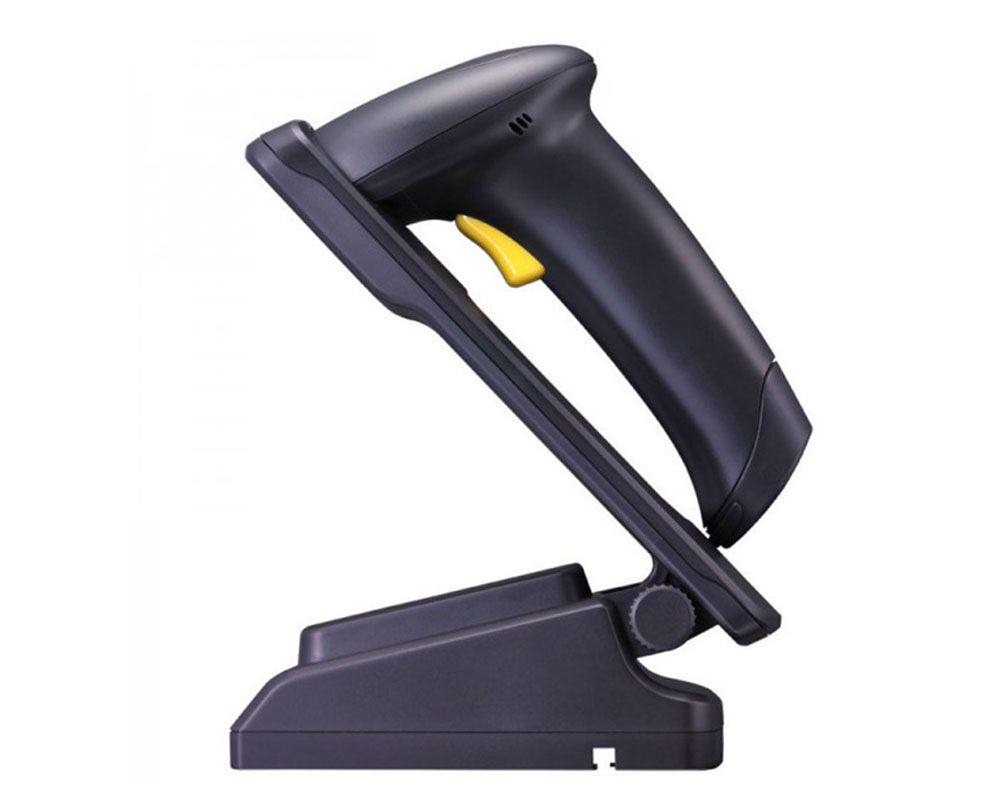

• Hands-free scanning included – place the scanner in the supplied auto-sense stand and it reads barcodes automatically when items are presented.
• Durable everyday design – ergonomic housing that withstands multiple 1.2 m drops onto concrete, with ESD protection of ±8 kV contact / ±15 kV air.
• Easy setup – configure symbologies, data editing and the interface with configuration barcodes or the Windows-based CipherLab ScanMaster software; keyboard layouts for 11 languages, including US/UK English, German, French and Spanish.
• Works in any light – reads reliably in ambient light up to 100,000 lux.

Ideal Applications

• Retail and POS – checkouts, price checks and goods receiving
• Healthcare and pharmacies – medicine packaging and patient records
• Post offices and logistics – parcel tracking, receiving and shipping
• Banks, utilities and offices – bills, documents and files
• Warehousing and light industry – inventory, picking and part labels

All CipherLab 1500 Series Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? For a corded workstation, choose the 1504A (SE4107 imager, wide depth of field) or the 1504P (fast 1280 × 800 imager, 60 scans per second); for cordless scanning up to 90 m from the base, choose the Bluetooth kits 1560P (1D) or 1564A (2D). Pick a USB version for PCs and POS systems with a USB port, or an RS232 version for a serial connection (RS232 versions include a 5 V power supply). EU or UK plug? Choose the version that matches your sockets. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
