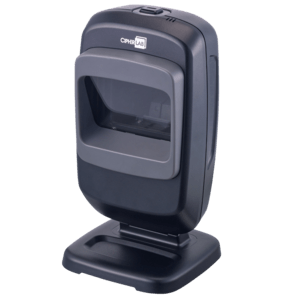

CipherLab 2200 Presentation Scanner (A2200NBEM0201)

The CipherLab 2200 is a compact corded presentation scanner for checkout counters, service desks and transport check-in counters. Its 2D imager reads all common 1D and 2D barcodes omnidirectionally – including QR codes, PDF417 boarding passes and mobile coupons – from paper labels as well as phone screens; customers and staff simply present the code. The integrated adjustable stand tilts 40° forward and 15° back so that awkwardly shaped items are easy to scan, and a trigger lets you scan large items like a handheld scanner. IP52 sealing and a 1.5 m drop rating make it ready for everyday use. This version, A2200NBEM0201, uses the N4680 standard range imager (640 × 480 CMOS sensor, warm white illumination) – reads low-contrast codes down to 20% PCS and EAN-13 barcodes up to 24 cm away. It is the complete RS232 kit: supplied with an RS232 (serial) cable, a 5 V power supply with EU power cord and a locking mount bracket – everything needed for a serial connection.

Key Features

• Omnidirectional 2D scanning – the N4680 standard range imager reads all common 1D and 2D codes, including QR Code, Data Matrix, Aztec, Han Xin, Code 11 and Chinese 2 of 5, in any orientation; low-contrast codes down to 20% PCS and EAN-13 up to 24 cm away.
• Reads phone screens – mobile coupons, loyalty cards, e-tickets and boarding passes on smartphone displays, as well as codes on reflective labels and dark backgrounds.
• Energy-saving presentation mode – the illumination stays dimmed until a barcode is presented, then the scanner reads it instantly, hands-free.
• Adjustable integrated stand – tilts 40° forward and 15° back to aim precisely at the scanning area; thanks to the trigger you can pick the scanner up and scan bulky items like a handheld.
• Compact and robust – just 83 × 80 × 150 mm and 320 g, IP52 protection against dust and dripping water (e.g. from chilled goods), withstands multiple 1.5 m drops onto concrete.
• Flexible connection – USB or RS232 via interchangeable cables; USB versions are powered by the host.
• Easy setup – configure with setup barcodes or the Windows-based CipherLab ScanMaster software: data editing, interface selection and symbology settings; 15 keyboard languages.

Ideal Applications

• Supermarkets, department and convenience stores – fast scanning at the checkout
• Hospitality – restaurants, cafés and bars: mobile orders, vouchers and loyalty apps
• Transport – check-in counters, baggage drop and boarding gates (paper and mobile boarding passes)
• Service desks and ticket counters – e-tickets, coupons, customer and membership cards
• Pharmacies and specialist shops – compact countertop scanning where space is limited

All CipherLab 2200 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version to choose? All versions are the same CipherLab 2200 presentation scanner – they differ only in the imager and in what is in the box. For PCs and POS systems with a USB port, choose a USB version (A2200NBUN0001, A2200NBUN0201 or A2200NBUM0001) – it is powered via USB. For a serial connection, choose an RS232 version: A2200NBEM0001 and A2200NBEM0201 include the required 5 V power supply, A2200NBRN0001 and A2200NBRM0001 do not. Versions A2200NBUM0001, A2200NBRM0001, A2200NBEM0001 and A2200NBEM0201 also include the locking mount bracket. The SM2 imager (…0001) offers wider reading angles and keyboard wedge support, while the N4680 imager (…0201) reads low-contrast codes and EAN-13 from slightly further away. Compare other hands-free models in our Presentation Barcode Scanners collection or contact our team for volume pricing.
