Datalogic Gryphon I GM4500 Barcode Scanner (GM4500-BK-433-WLC)

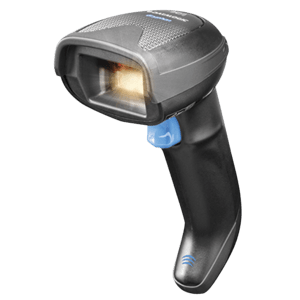

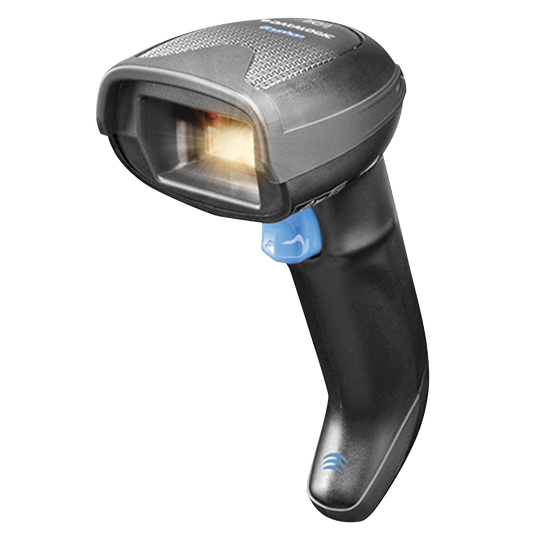

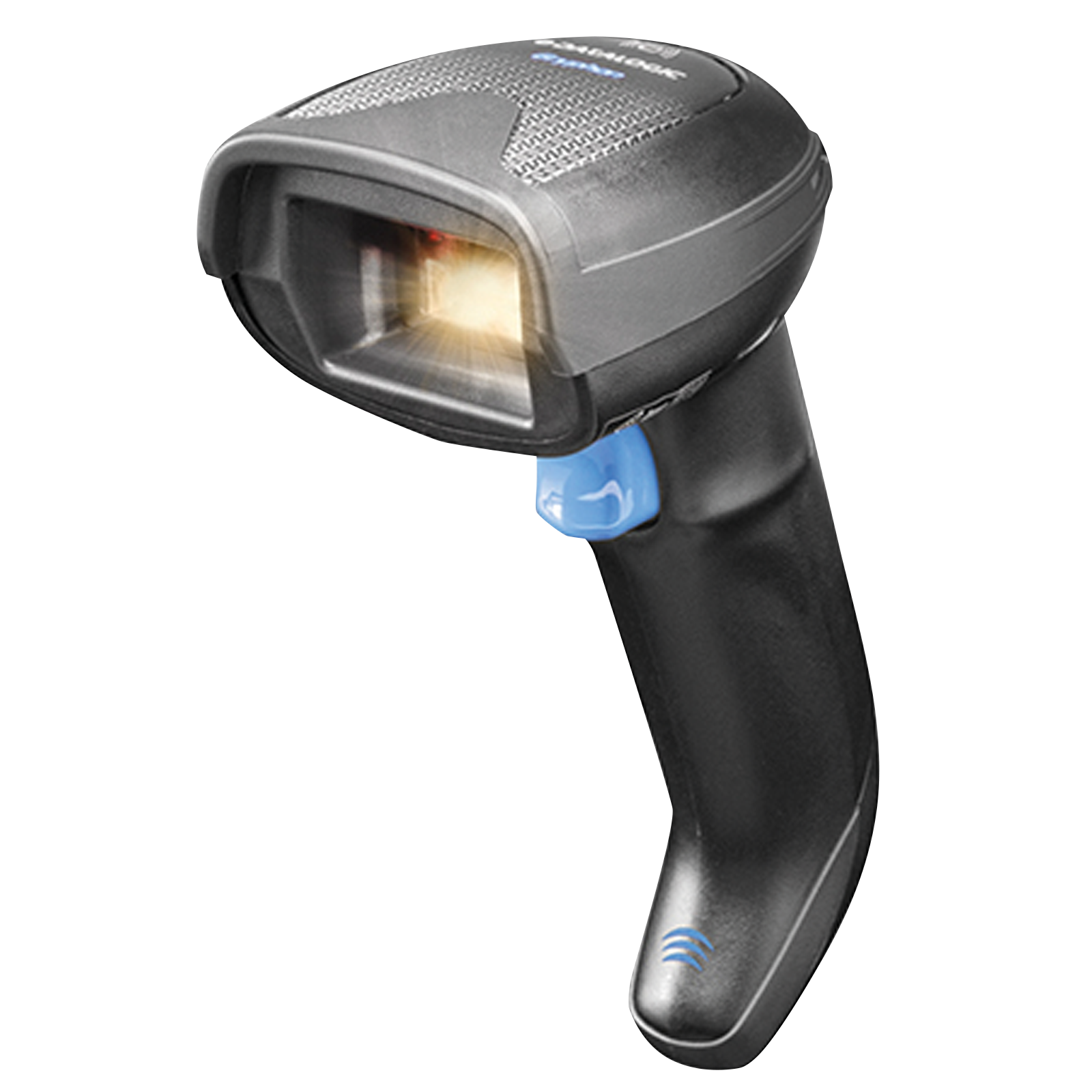

The Datalogic Gryphon I GM4500 is the cordless 433 MHz version of Datalogic's premium Gryphon 4500 2D handheld imager. It uses the Datalogic STAR Cordless System (433 MHz) radio with up to 50 m range and charges wirelessly (inductively) in its base – there are no charging contacts to clean or wear out. A 1 MP sensor with white illumination reads 1D, 2D, postal and stacked codes from paper labels and phone screens, every good read is confirmed by Green Spot, 3GL™ and vibration, and the removable 3250 mAh battery lasts for up to 80,000 reads per charge. In this version, GM4500-BK-433-WLC, the scanner has Standard Range (SR) optics – the all-round choice for everyday barcodes, is black and is supplied as the scanner only (with battery) – the WLC4090-BK-433 base station and an interface cable are not included; it is intended for expanding an existing GM4500 433 MHz installation or replacing a scanner.

Key Features

• Reads 1D, 2D and postal codes – omnidirectional reading of linear, 2D, postal, stacked and composite codes, from paper labels and from phone or tablet screens (mobile tickets, loyalty cards, e-coupons).
• 1 MP imager with white illumination – Datalogic's highly visible warm-white illumination and 4-dot aimer with centre cross make targeting easy, and improved motion tolerance (35 IPS) captures fast-moving codes.
• Standard Range (SR) optics – reads 13 mil EAN/UPC codes from 1 to 71 cm and resolves codes down to 4 mil – the best all-rounder for checkouts and service counters.
• Datalogic STAR Cordless System (433 MHz) – reliable 433 MHz radio away from the busy 2.4 GHz Wi-Fi/Bluetooth band, up to 50 m range in open air, two-way communication and point-to-point or point-to-multipoint configurations with up to 16 scanners per radio receiver.
• Wireless charging, long battery life – inductive charging in the WLC4090 base eliminates charging contacts that need cleaning or wear out; the adjustable-position base keeps the scanner reading hands-free while it charges (Scan-While-Charging), and the user-replaceable 3250 mAh Li-ion battery delivers up to 80,000 reads per charge.
• Green Spot, 3GL™ and vibration feedback – a green spot projected onto the code, Three Green Lights and a vibration alert confirm every good read, even in noisy environments.
• Motionix™ motion sensing – switches seamlessly between handheld and presentation reading modes.
• Flexible connectivity and batch mode – the WLC4090 base is a USB, RS-232 and keyboard wedge multi-interface, depending on the cable; batch mode stores scans when you are out of range; free Datalogic Aladdin configuration tool, OPOS/JavaPOS utilities and Remote Host Download.
• Disinfectant-ready housing – withstands regular daily cleaning with the harsh disinfectant solutions commonly used in healthcare.
• Built to last – withstands repeated 1.8 m drops onto concrete, IP52 sealed, with a 3-year Datalogic factory warranty.

Ideal Applications

• Retail point of sale – checkout, loyalty cards and mobile coupons
• Healthcare – laboratories, pharmacies and in-room patient care
• Light manufacturing – work-in-progress tracking and order processing
• Access control, transport and entertainment – ticketing and admissions
• Commercial services – post offices, banks, public administration and utilities

All Gryphon I GM4500 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose GM4500-BK-433K1 for a complete, ready-to-use setup with base station and USB cable. The scanner-only versions – GM4500-BK-433-WLC (black), GM4500-WH-433-WLC (white) and GM4500-BK-HD-433 (High Density, for very small codes) – are ideal as additional or replacement scanners for an existing WLC4090 433 MHz base. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
