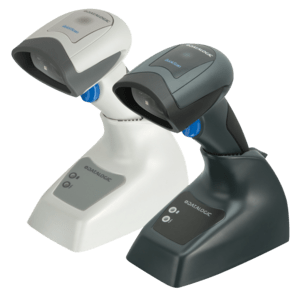

Datalogic QuickScan QBT2101 Barcode Scanner (QBT2101-WH-BTK+)

The Datalogic QuickScan QBT2101 / QBT2131 is a cordless Bluetooth® 1D linear imager for fast, reliable reading of linear barcodes – including long codes on bills, documents and packaging – thanks to its extra-wide 56° scan angle and sharp, extra-long scan line. Datalogic's Green Spot confirms every good read, a tool-free replaceable 1400 mAh battery lasts for 30,000+ reads per charge, and the scanner connects either through the BC2030 Bluetooth base station (QBT2131 kits) or directly to PCs, tablets and smartphones (iOS / Android) via Bluetooth HID. It comes with a 3-year Datalogic warranty. This version, QBT2101-WH-BTK+, is white and is supplied with a Micro USB charging cable but without a base station – it pairs directly with your Bluetooth device.

Key Features

• 1D linear imager – reads all standard 1D barcodes, including GS1 DataBar and EAN/UPC composites. Please note: it does not read 2D codes such as QR codes or Data Matrix; for those, choose the 2D Datalogic QuickScan QBT2500.
• Extra-wide scan angle and extra-long scan line – a 56° field of view and a sharp, highly visible scan line make long barcodes easy to read even at close distance.
• Enhanced depth of field – from 1 cm up to 45 cm on 13 mil EAN/UPC and up to 70 cm on 20 mil codes, resolution down to 4 mil and 400 reads per second.
• Cordless Bluetooth freedom – Bluetooth 3.0 Class 2 with up to 25 m range (open air, with the base), data encryption and scanner authentication; works with the BC2030 base or directly with iOS and Android tablets, smartphones and PCs (HID/SPP).
• Tool-free replaceable battery – a 1400 mAh Li-ion pack lasts for 30,000+ reads per charge, and each new battery pack also renews the charging contacts. Charge in the base or through the Micro USB port on the scanner foot.
• Batch mode – stores more than 500 barcodes in memory when you are out of range and sends them once the connection is restored.
• Datalogic Green Spot – a green light projected onto the barcode confirms every good read, even in noisy environments.
• Easy integration, built to last – the BC2030 base offers USB, RS-232 and keyboard wedge multi-interface; free Datalogic Aladdin configuration tool, OPOS/JavaPOS utilities and remote host download; withstands repeated 1.5 m drops, IP42, 3-year warranty.

Ideal Applications

• Retail point of sale – check-out, line busting and loyalty cards
• Shop floor and back office – shelf replenishment, goods receiving and inventory
• Mobile POS – scanning directly into iOS and Android tablets and smartphones
• Commercial services – banks, public administration and utilities (long barcodes on bills and documents)
• Document processing and packaging

All QuickScan QBT2101 / QBT2131 Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose QBT2131-BK-BTK1 for a ready-to-use USB setup at a checkout or desk, QBT2131-BK-BTK2 for an RS-232 POS connection (power supply included), QBT2131-BK or QBT2131-WH if you already have a compatible Datalogic cable, and QBT2101-BK-BTK+ or QBT2101-WH-BTK+ to pair the scanner directly with a tablet, smartphone or Bluetooth-enabled PC. Need to read QR codes or codes on phone screens? Choose the 2D Datalogic QuickScan QBT2500 instead. Compare other models in our Cordless / Wireless Barcode Scanners collection or contact our team for volume pricing.
