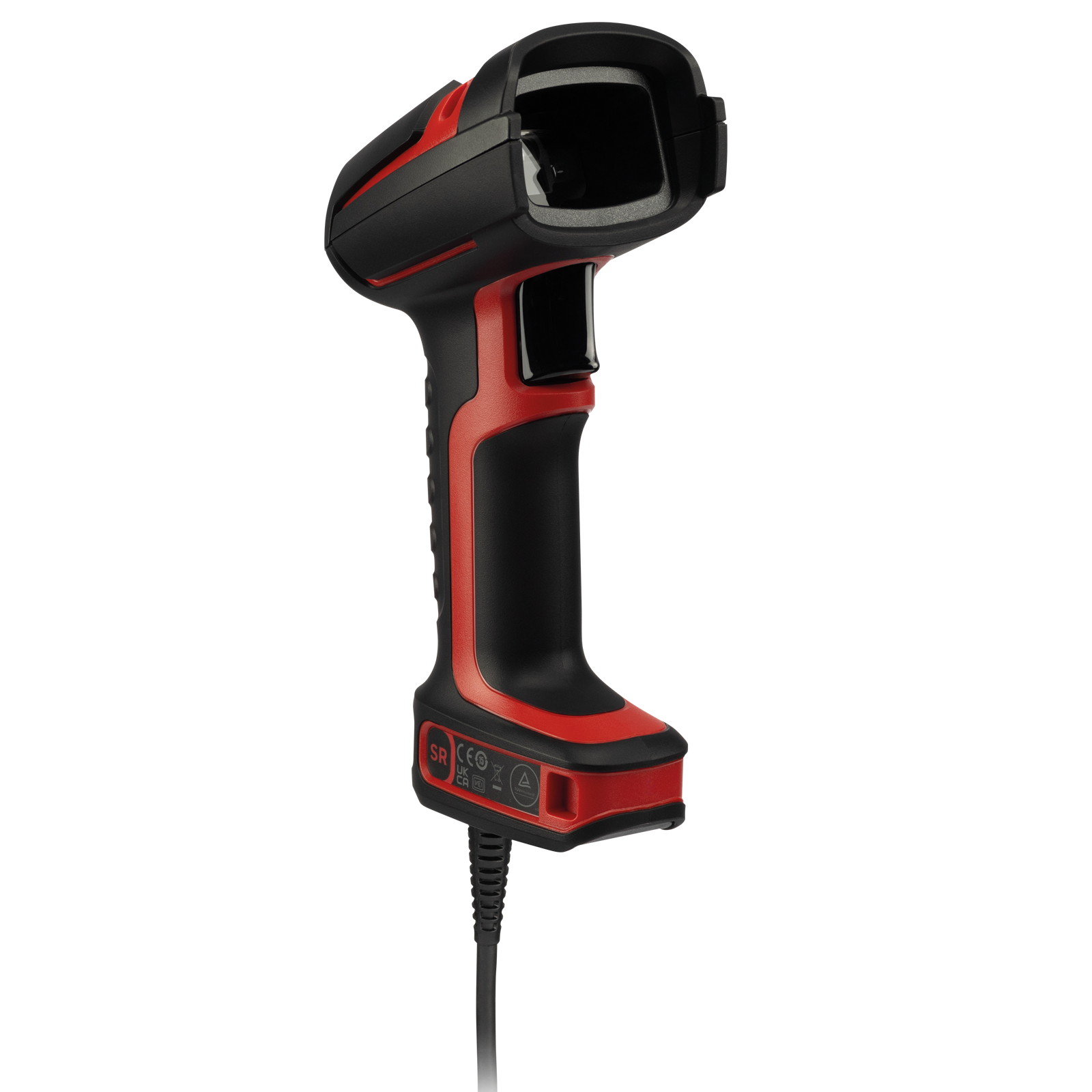

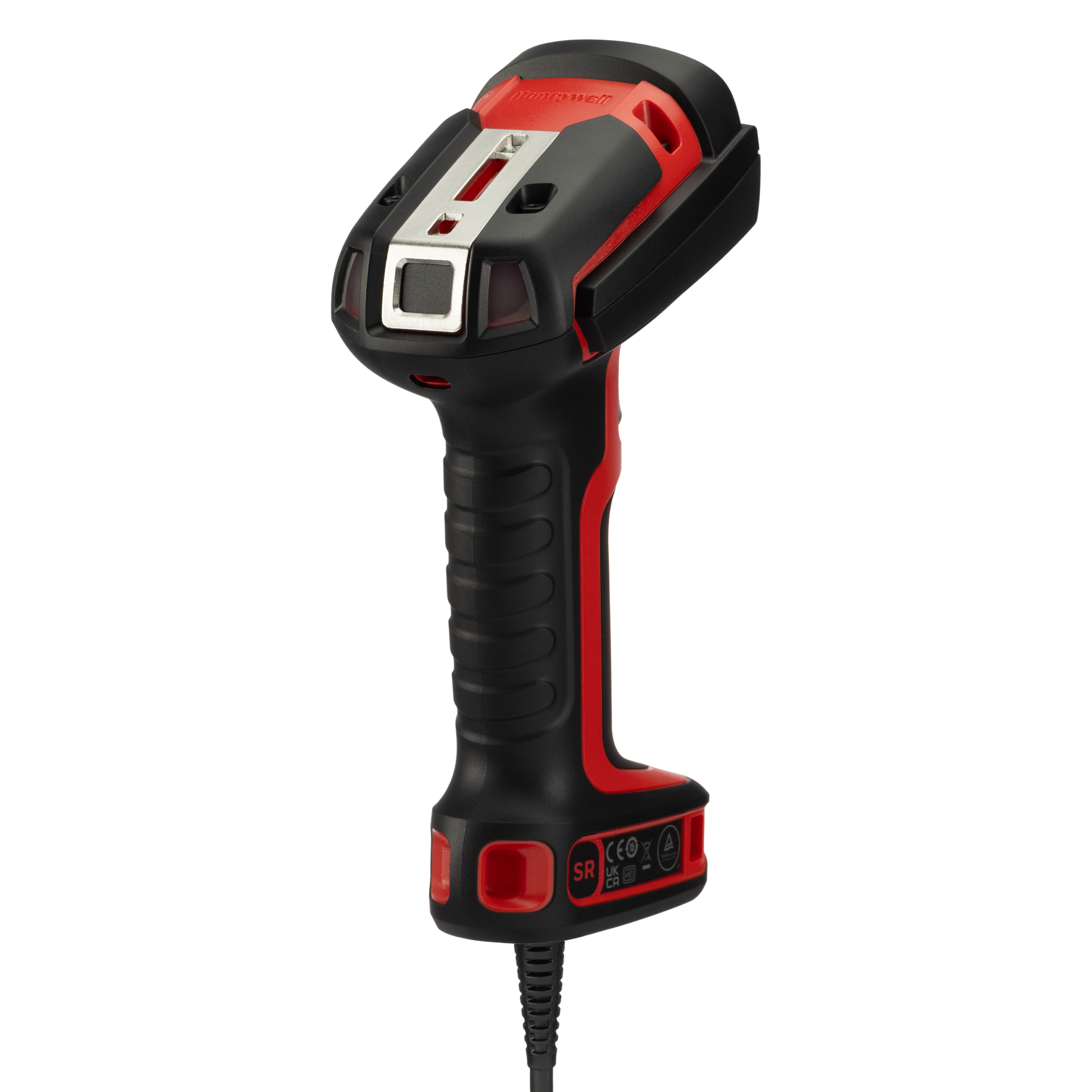

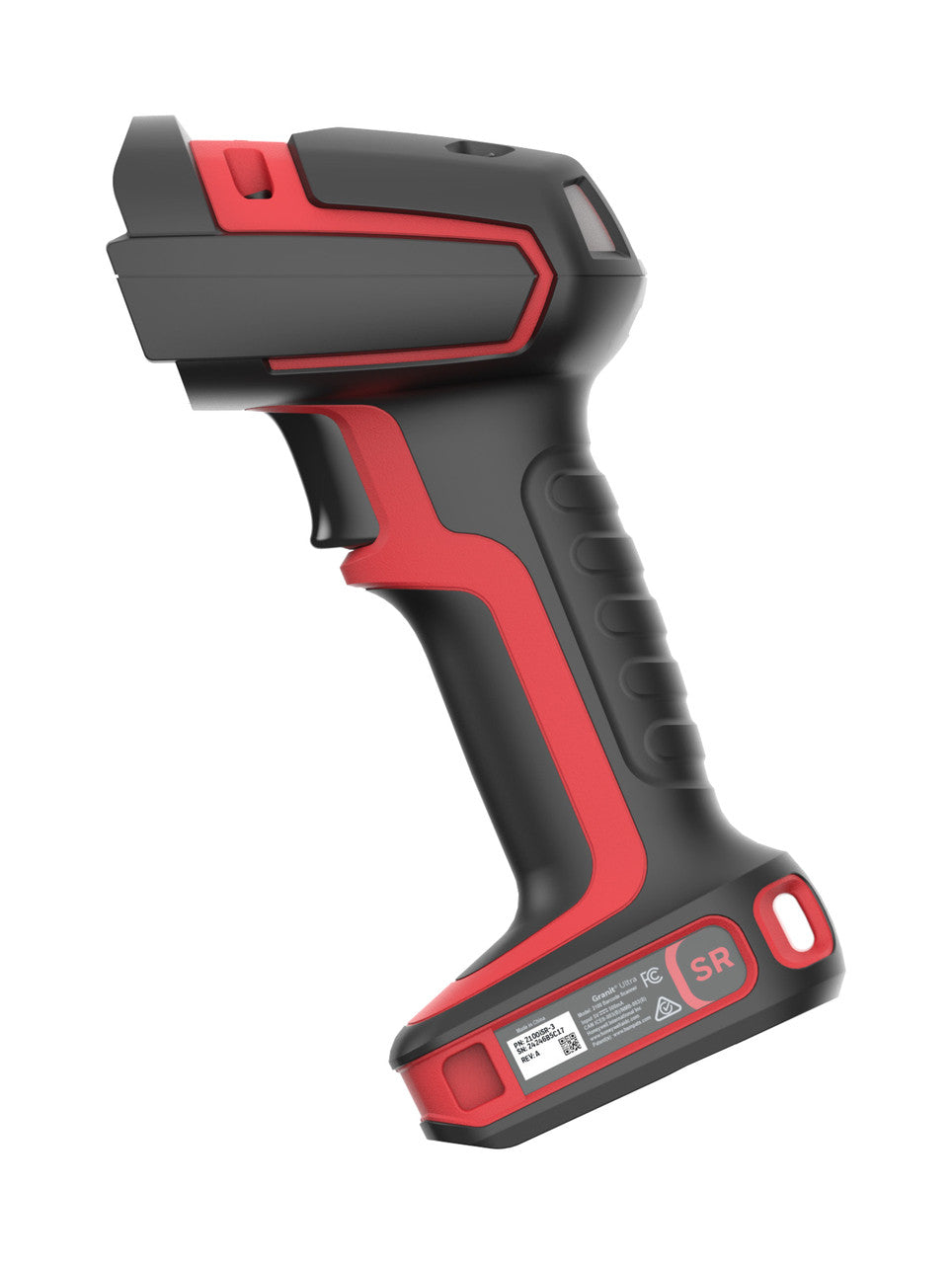

Honeywell Granit Ultra 2100i Barcode Scanner (2100IXR-3SERE)

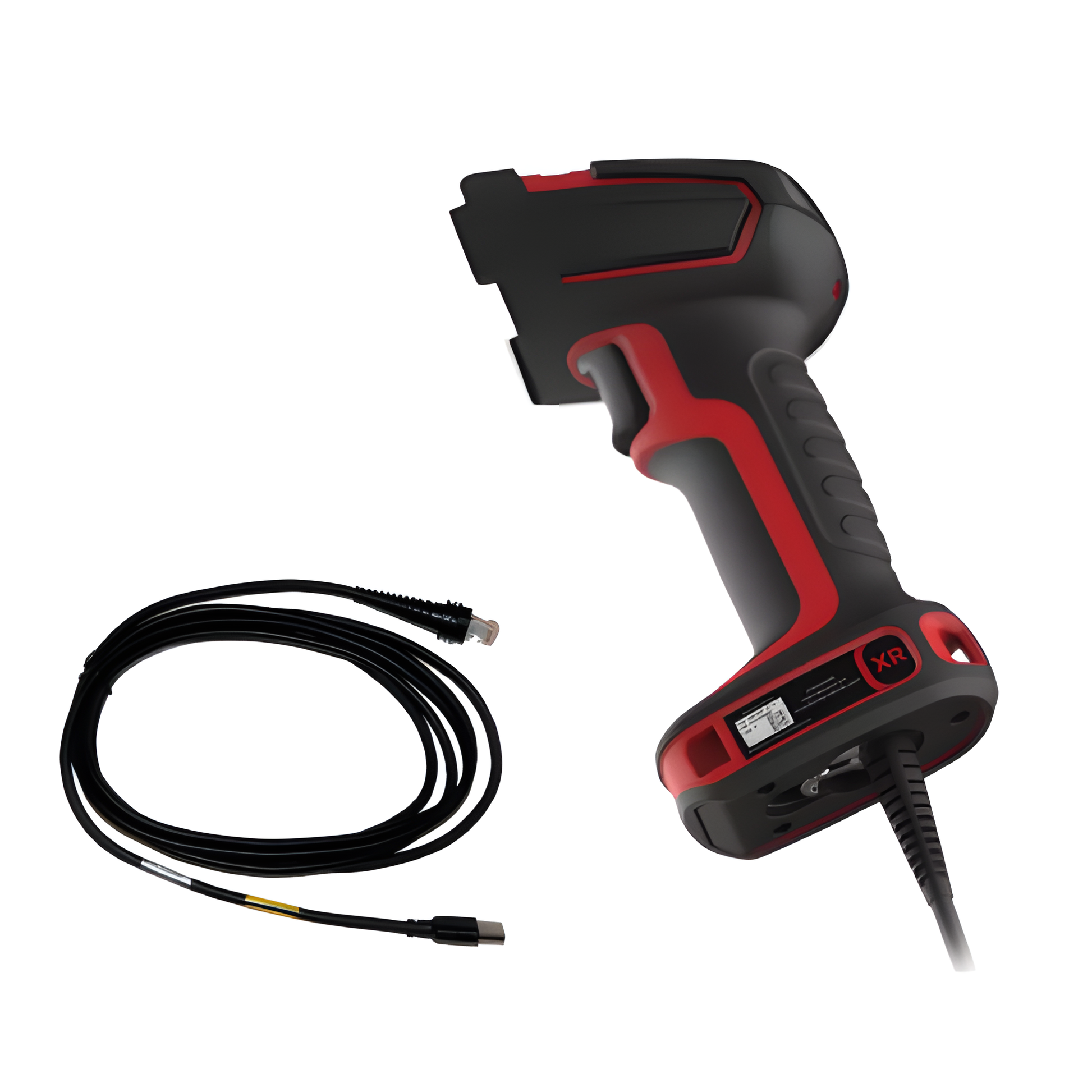

The Honeywell Granit Ultra 2100i is an ultra-rugged corded 2D handheld scanner for warehouses, manufacturing plants, cold storage and logistics yards. Thanks to Honeywell's AI-enhanced decoding it scans on average 45% faster than the Granit XP, reads damaged and poor-quality 1D and 2D barcodes, survives 3 m drops to concrete and 7,500 tumbles, and is sealed to IP65 and IP68. The scanner is backed by a 3-year (36-month) Honeywell warranty. This version, 2100IXR-3SERE, has Extended Range (XR) optics (from close-up codes to 100 mil barcodes at up to 10.8 m) and is supplied with a 3 m coiled RS232 cable (DB9 female) for a serial connection – a power supply is not included.

Key Features

• Ultra-rugged design – survives 3 m (10 ft) drops to concrete (MIL-STD-810G), 50 drops from 2 m across the full −30 °C to 50 °C range and 7,500 tumbles from 1 m; the trigger is tested to 3 million activations.
• IP65 and IP68 sealing – dust-tight and protected against water jets and immersion, so the scanner can be cleaned and used in wet and dusty environments.
• Extended Range (XR) optics with near and far imagers – one scanner for close-up and distant codes: 13 mil UPC at up to 1.78 m, 20 mil Code 128 at up to 2.8 m, 100 mil Data Matrix at up to 5.3 m and 100 mil Code 39 at up to 10.8 m.
• 45% faster scanning with AI – high-speed processing, AI algorithms and decoding enhancements make Granit Ultra on average 45% faster than the Granit XP (Honeywell benchmark), even on damaged, dirty and poorly printed barcodes.
• Works from −30 °C to 50 °C – in freezers, cold stores, outdoor docks and hot production halls (for freezer use we recommend an industrial-grade cable).
• Multi-code reading and image capture – reads several barcodes in the field of view and outputs the data in a predefined order with Honeywell's Data Format Editor; captures document images at up to 109 PPI on A4.
• Reads virtually every code – 1D, PDF417, 2D (incl. DotCode, Aztec, Data Matrix and QR), postal codes, Digimarc digital watermarks and OCR (OCR-A, OCR-B, MICR E-13B, SEMI).
• Fast, intuitive scanning with clear feedback – motion tolerance of up to 4 m/s, omnidirectional reading, good-decode LEDs, a beeper with adjustable tone and volume, and adjustable vibration for noisy environments.
• Flexible connectivity and easy management – USB, keyboard wedge and RS-232 TTL depending on the cable used (standard Honeywell CBL-500 USB and CBL-020 RS232 cables); configure and update scanners with EZConfig and Honeywell Scanner Management Utility (SMU).

Ideal Applications

• Warehouses and distribution centres – receiving, put-away, picking, inventory and shipping
• Manufacturing and automotive – work-in-process, parts tracking and quality control
• Electronics manufacturing – tiny high-density labels on PCBs and components (HD version)
• Cold storage and food processing – freezer rooms and wash-down areas (with an industrial-grade cable)
• Logistics yards, ports and outdoor areas – scanning in dust, rain and snow
• Forklift and high-bay scanning – reading labels on the upper rack levels (XR and XLR versions)

All Granit Ultra 2100i Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose SR for everyday 1D and 2D scanning from contact to arm's length, HD for tiny high-density codes down to 2 mil, XR to read everything from close-up labels to large codes at up to 10.8 m, and XLR for distances of up to 30 m – from a forklift to the top of high-bay racks. All versions use the same Honeywell cables: if you do not already have one, choose a version with a USB or RS232 cable included, and for freezers add an industrial-grade cable. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
