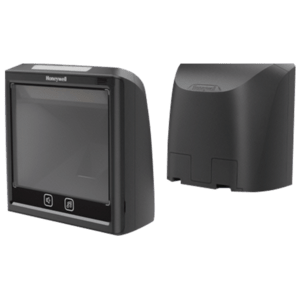

Honeywell Solaris XP 7990G Presentation Scanner (7990G-2USBX-1)
Regular price
361,80 € +VAT
The Honeywell Solaris XP 7990g is a vertical 2D presentation (slot) scanner for high-volume checkouts in convenience, drug, specialty, liquor and grocery stores. Built on Honeywell's XP platform, its 1280 × 960 pixel area imager reads 1D, 2D, PDF417, postal and OCR codes – including poorly printed and damaged barcodes – with a motion tolerance of more than 4 m/s, and its compact design fits easily into existing checkout enclosures. This version, 7990G-2USBX-1, is supplied with a 3 m USB cable – the scanner runs on USB power, so no power supply is included or needed.
📦 What's in the box – 7990G-2USBX-1
- ✅ Honeywell Solaris XP 7990g scanner – black, 2D area imager, EAS deactivation supported
- ✅ USB cable – USB Type A, straight, 3 m
- ❌ Power supply – not included (not needed: the scanner runs on USB power)
- ❌ EAS cable – not included (only needed to connect an EAS deactivation system; order separately)
💡 Using an EAS security system? Connect the scanner with the Checkpoint EAS cable (CBL-860-100-S02) or the Sensormatic EAS cable (CBL-860-200-S04) – security tags are deactivated as the items are scanned.
Key Features
- Built for high-volume checkouts – a compact vertical slot design that fits easily into existing checkout enclosures in convenience, drug, specialty, liquor and grocery stores.
- XP performance – Honeywell's extreme performance (XP) platform delivers excellent snappiness, a motion tolerance of 4+ m/s and a wider field of view (42° × 34°) than previous Solaris models, so items can be passed quickly.
- Reads difficult codes – the 1280 × 960 pixel area imager handles poorly printed and damaged barcodes and decodes standard 1D, PDF417, 2D (e.g. QR Code, Data Matrix), postal and OCR symbologies.
- EAS deactivation – the 7990G versions connect to Checkpoint or Sensormatic EAS systems via an optional interlock cable, so security tags are deactivated during scanning.
- Auxiliary scanner port – connect an additional handheld scanner for bottom-of-basket and bulky items.
- Rip-and-replace upgrade – fully backwards compatible with legacy Solaris models such as the Solaris 7980g, so existing cables and checkout enclosures can be reused.
- Flexible connectivity – USB, keyboard wedge, RS-232 and IBM 46xx (RS-485), selected by the cable used.
- Reliable in any store – IP53 sealing, works in light levels up to 100,000 lux and comes with a 3-year factory warranty.
Ideal Applications
- PC- and tablet-based POS systems with a USB port – the scanner runs on USB power
- Convenience, drug, specialty and liquor stores
- Supermarket and grocery checkouts with high scanning volumes
- Integration into existing checkout counters and enclosures
All Solaris XP 7990g Versions
The highlighted row is the version you are currently viewing.
| Part Number | Cable | Power Supply | EAS Deactivation | |
|---|---|---|---|---|
| 7990G-2USBX-1 (this version) | USB, 3 m | Not included (USB-powered) | Supported | Viewing |
| 7990G-2USBC-1 | USB, 3 m | Included (EU plug) | Supported | View product |
| 7990G-2SERC-1 | RS232, 3 m | Included (EU plug) | Supported | View product |
| 7990GEL-2-1 | Not included | Not included | Not supported | View product |
Technical Specifications
| Part Number | 7990G-2USBX-1 |
|---|---|
| Model | Honeywell Solaris XP 7990g |
| Scanner Type | Corded 2D area-imaging vertical slot (presentation) scanner |
| Image Sensor | 1280 × 960 pixels |
| Scan Angle | 42° horizontal × 34° vertical |
| Depth of Field | 5 mil Code 39: 10–140 mm; 13 mil UPC-A: 0–270 mm; 20 mil Code 39: 0–300 mm; 6.7 mil PDF417: 20–140 mm; 20 mil Data Matrix: 15–190 mm; 20 mil QR Code: 0–190 mm |
| Minimum Resolution | 3 mil (1D, Code 39); 8.3 mil (2D, Data Matrix) |
| Motion Tolerance | 4+ m/s (13 mil UPC at optimal focal point) |
| Minimum Print Contrast | 20% minimum reflectance difference |
| Pitch / Skew | ±65° / ±75° |
| Symbologies | Standard 1D, PDF417, 2D, postal and OCR – decode capability depends on kit configuration |
| Host Interfaces | USB, Keyboard Wedge, RS-232, IBM 46xx (RS-485) – interface depends on the cable used; auxiliary scanner port; backwards compatible with legacy Solaris models |
| EAS Deactivation | Supported – connect an optional Checkpoint (CBL-860-100-S02) or Sensormatic (CBL-860-200-S04) EAS interlock cable |
| Kit Cable | USB Type A, straight, 3 m, 5 V host power (replacement: Honeywell CBL-500-300-S00-04) |
| Power Supply | Not included – not needed, the scanner runs on USB host power (optional: Honeywell PS-05-1000W-C, 5.2 V DC / 1.0 A) |
| Color | Black |
| Dimensions (H × W × D) | 148 × 152 × 85 mm |
| Weight | 527 g |
| Input Voltage | 5.0–5.2 V DC |
| Current Consumption | 400 mA operating; 270 mA standby; 210 mA sleep |
| Environmental Sealing | IP53 |
| Ambient Light Immunity | Up to 100,000 lux |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | −20 °C to 60 °C |
| Humidity | 5–95% RH, non-condensing |
| Warranty | 36 months |
| In the Box | Solaris XP 7990g scanner (black), USB cable (USB Type A, straight, 3 m) – USB-powered, power supply not included |
Not sure which version you need? Choose the 7990G-2USBX-1 for PCs and POS systems with a USB port – the scanner runs on USB power. The 7990G-2USBC-1 adds a power supply with an EU plug for a separate power source. Choose the RS232 kit 7990G-2SERC-1 for POS terminals and cash registers with a serial port; it includes the required power supply. The 7990GEL-2-1 is the scanner only, without EAS deactivation – ideal as a replacement unit if you already have a Honeywell cable. Compare other models in our Presentation Barcode Scanners collection or contact our team for volume pricing.
