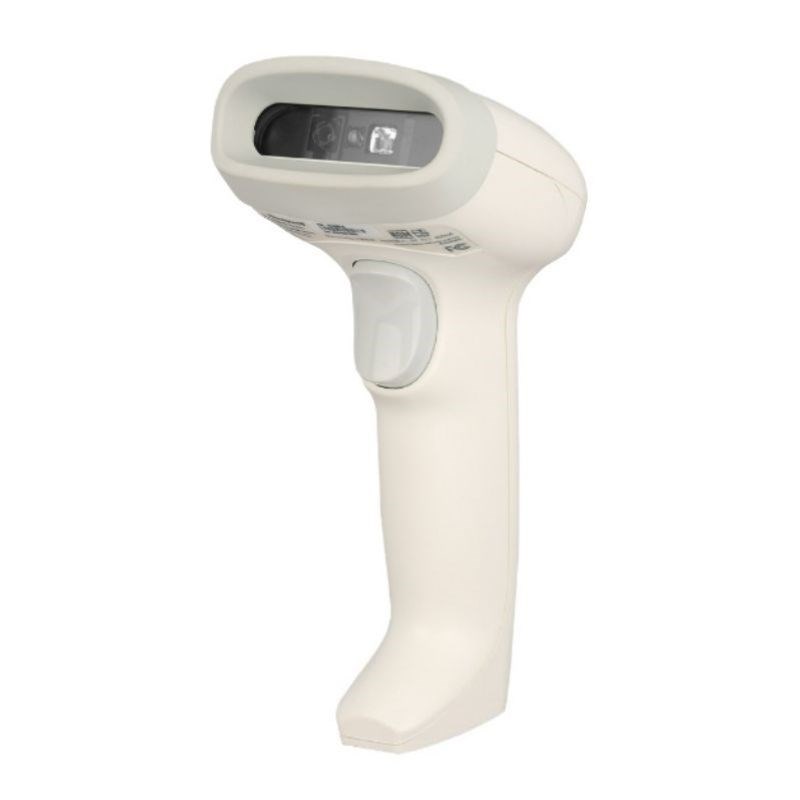

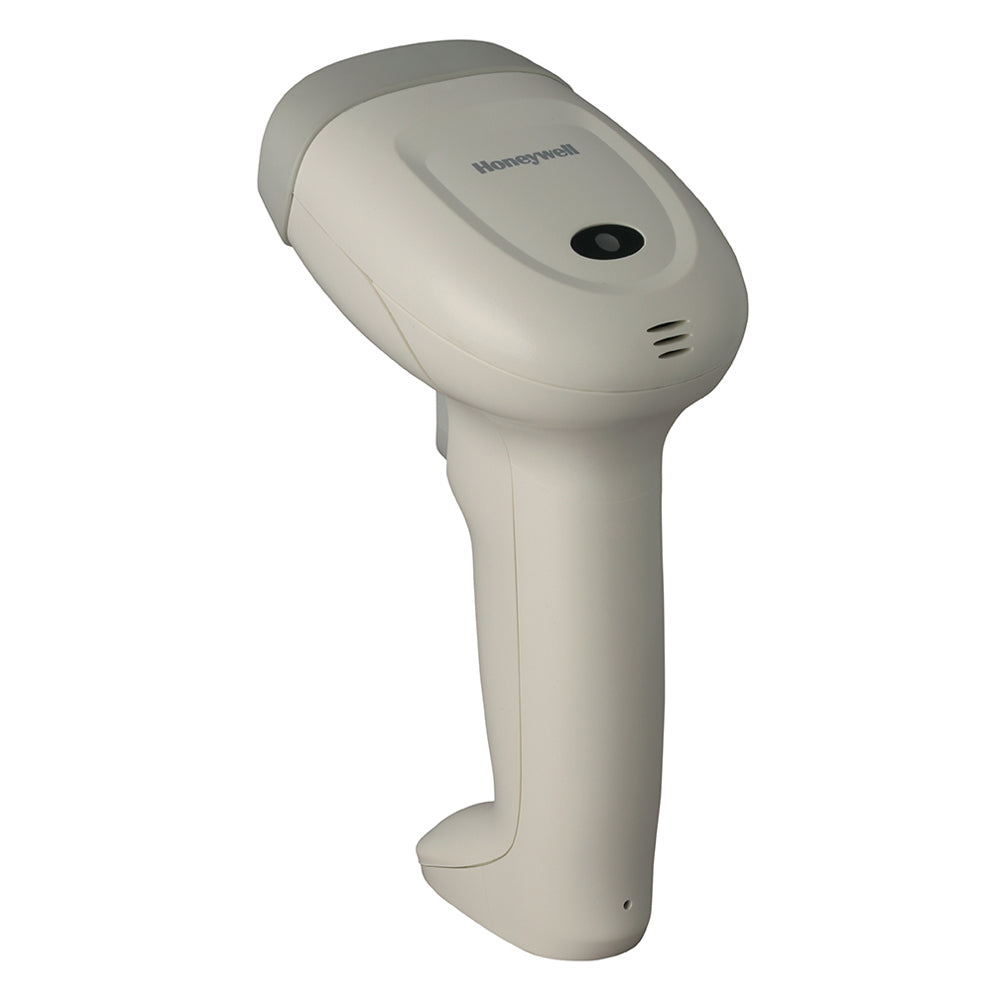

The Honeywell Voyager 1350g is an affordable corded 2D area imager that reads 1D, 2D and DotCode barcodes – on printed labels and on phone screens, including damaged and poorly printed codes – and also supports image capture. It is easy to set up with Honeywell EZConfig and the common POS drivers. This version, 1350G2D-1-R, comes in white and is supplied as the scanner only – an interface cable is not included.
📦 What's in the box – 1350G2D-1-R
- ✅ Honeywell Voyager 1350g scanner – White
- ❌ Interface cable – NOT included
- ❌ Stand – not included
⚠️ Please note: this version does not include a cable. The scanner cannot be connected to a computer or POS system without one, so please order an interface cable separately – for most setups the Honeywell USB cable CBL-500-270-S00 (2.7 m) is the right choice. Alternatively, choose a version that already includes a USB cable (see the comparison table below). Please note that the Voyager 1350g uses its own cable type – choose a cable that is listed for the Voyager 1350g.
💡 Want hands-free scanning? The Voyager 1350g is also available as a kit with the Honeywell flex stand STND-15F03-101-4 – for example 1350G2D-1USB-1-R.
Key Features
- Reads 1D, 2D and DotCode barcodes – from paper labels and from phone screens, such as mobile tickets, e-coupons and loyalty cards.
- Reliable decoding – Honeywell decoding technology reads damaged and poorly printed barcodes, reducing manual keying errors.
- Wide field of view – 1280 × 800 pixel sensor with a 48° × 30° field of view, 75 cm/s motion tolerance and 13 mil UPC codes read up to 43 cm away.
- Image capture – the area imager can also take images, for example of documents or delivery notes.
- Easy to install – plug and play with user-selectable settings; supports Honeywell EZConfig, OPOS/JPOS drivers, POSNET4, Scanner Management Utility (SMU) and plug-ins.
- USB or RS232 – one multi-interface scanner for PCs and POS systems; the interface is selected by the cable. IP40 sealed and withstands 1.2 m drops to concrete.
Ideal Applications
- Retail checkouts and small shops
- Government, personnel and hotel registration desks
- Ticket checking at theatres and events, quick admission scanning in hospitals and schools
- Offices, libraries and service desks – mobile codes, ID cards and documents
All Voyager 1350g Versions
The highlighted row is the version you are currently viewing.
| Part Number | Color | Series | Cable | Stand | |
|---|---|---|---|---|---|
| 1350G2D-2-R | Black | Standard | ❌ Not included | — | View product |
| 1350G2D-2USB-R | Black | Standard | USB, straight 1.5 m | — | View product |
| 1350G-2USB-EU | Black | General Duty (EU) | USB | — | View product |
| 1350G2D-2USB-1-R | Black | Standard | USB, straight 1.5 m | ✅ Yes | View product |
| 1350G2D-2RS232-R | Black | Standard | RS232 (serial) | — | View product |
| 1350G2D-1-R (this version) | White | Standard | ❌ Not included | — | Viewing |
| 1350G2D-1USB-R | White | Standard | USB, straight 1.5 m | — | View product |
| 1350G2D-1USB-1-R | White | Standard | USB, straight 1.5 m | ✅ Yes | View product |
| 1350G2D-1RS232-R | White | Standard | RS232 (serial) | — | View product |
| 1350G2D-1RS232-1-R | White | Standard | RS232 (serial) | ✅ Yes | View product |
Technical Specifications
| Part Number | 1350G2D-1-R |
|---|---|
| Model | Honeywell Voyager 1350g |
| Scanner Type | Corded handheld 2D area imager (reads 1D and 2D barcodes) |
| Image Sensor | 1280 × 800 pixels |
| Field of View | 48° H × 30° V (nominal) |
| Depth of Field (typical) | 5 mil Code 39: 40–225 mm; 6.7 mil PDF417: 50–210 mm; 10 mil Data Matrix: 45–185 mm; 13 mil UPC-A: 35–430 mm; 20 mil QR Code: 20–355 mm |
| Minimum Element Resolution | Code 39: 3 mil; Data Matrix: 5 mil; QR Code: 6 mil |
| Motion Tolerance | Up to 75 cm/s (13 mil UPC at optimal focus) |
| Minimum Print Contrast | 25% |
| Roll / Pitch / Skew | ±180° / ±60° / ±65° |
| Symbologies | Standard 1D, PDF, 2D and DotCode (configuration dependent) |
| Image Capture | Supported |
| Host Interfaces | USB, RS-232 – interface depends on the cable used |
| Color | White |
| Dimensions | 72.5 × 125 × 154 mm (L × W × H) |
| Weight | 130 g |
| Input Voltage | 5 V DC ±0.5 V |
| Current Draw | Operating: 2 W (400 mA at 5 V); standby: 0.55 W (110 mA at 5 V) |
| Environmental Sealing | IP40 |
| Drop / Tumble | 1.2 m drops to concrete; 250 tumbles at 0.5 m |
| Electrostatic Discharge | ±15 kV air, ±8 kV indirect |
| Ambient Light Immunity | 0–100,000 lux |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −40 °C to 60 °C |
| Humidity | 0–95% RH, non-condensing |
| Software & Management | Honeywell EZConfig, OPOS/JPOS drivers, POSNET4, Scanner Management Utility (SMU), plug-ins |
| Warranty | 60 months |
| In the Box | Voyager 1350g scanner – interface cable NOT included (order separately) |
Not sure which version you need? If you already have a Voyager 1350g cable, the scanner-only version is the most economical choice. For a new workstation, pick a USB kit – with the flex stand if you also want hands-free scanning – and choose an RS232 kit for older POS systems with a serial port. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
