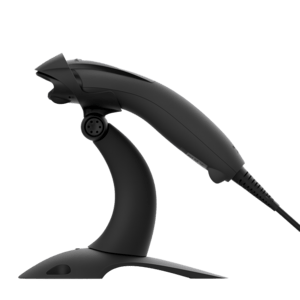

The Honeywell Voyager XP 1400g (also known as Voyager XP Curve 1400g) is an accurate, durable and affordable corded 2D handheld barcode scanner designed for retail and pharmacy counters. It reads damaged and poorly printed 1D and 2D barcodes as well as digital coupons and mobile wallets on smartphone screens, switches seamlessly between handheld and presentation scanning, and is backed by a 5-year Honeywell warranty. This version, 1400GSR-1USB-E, comes in white and is supplied with a 1.5 m USB cable in the same colour, ready to plug in and scan.
📦 What's in the box – 1400GSR-1USB-E
- ✅ Honeywell Voyager XP 1400g scanner – White
- ✅ USB cable – straight, 1.5 m, white, Honeywell CBL-500-150-S00-05
- ❌ Stand – not included
💡 Want hands-free scanning? Add the Honeywell presentation stand STND-19R02-002-0 (white) or the Honeywell presentation stand STND-19R02-002-2 (black) to your order. The scanner switches to hands-free mode automatically when placed in the stand.
Key Features
- Accurate scanning of difficult codes – reads damaged, poorly printed and low-contrast (down to 15%) 1D and 2D barcodes quickly and reliably.
- Made for digital screens – captures digital coupons, loyalty codes and mobile wallets on customers' smartphones as well as merchandise codes at the register.
- Extended scan distance – reads 13 mil UPC codes from 2.5 cm up to 41 cm and 20 mil QR codes up to 36 cm for natural, intuitive scanning.
- Handheld and presentation mode – the sleek design switches seamlessly between trigger scanning and hands-free presentation scanning in a stand.
- Built to last – engineered to withstand 30 drops from 1.8 m to concrete and 1,000 tumbles at 0.5 m, IP42 sealed, with a 5-year (60-month) Honeywell warranty.
- Easy deployment – USB, keyboard wedge (KBW) or RS-232 depending on the cable, support for 84 international keyboards and full compatibility with existing Voyager 1400g accessories.
- More than barcodes – decodes Digimarc digital watermarks and OCR-A/OCR-B/MICR fonts; configure and manage scanners with EZConfig, SMU and Scanner Edge.
Ideal Applications
- Retail checkout and point of sale
- Pharmacies and drugstores – prescriptions, medication packs and loyalty cards
- Digital coupons, tickets and mobile wallets on smartphone screens
- Service desks, libraries, offices and small warehouses
All Voyager XP 1400g Versions
The highlighted row is the version you are currently viewing.
| Part Number | Color | Cable | Stand | |
|---|---|---|---|---|
| 1400GSR-2USB-1E | Black | USB, straight 1.5 m | ✅ Yes | View product |
| 1400GSR-2USB-E | Black | USB, straight 1.5 m | — | View product |
| 1400GSR-2 | Black | ❌ Not included | — | View product |
| 1400GSR-1USB-1E | White | USB, straight 1.5 m | ✅ Yes | View product |
| 1400GSR-1USB-E (this version) | White | USB, straight 1.5 m | — | Viewing |
| 1400GSR-1 | White | ❌ Not included | — | View product |
Technical Specifications
| Part Number | 1400GSR-1USB-E |
|---|---|
| Model | Honeywell Voyager XP 1400g (Voyager XP Curve 1400g) |
| Scanner Type | Corded handheld 2D area imager |
| Image Sensor | 1040 × 720 pixels, 60 frames per second |
| Field of View | 39.2° H × 27.4° V |
| Depth of Field (typical) | 5 mil Code 39: 25–220 mm; 13 mil UPC: 25–410 mm; 6.7 mil PDF417: 20–200 mm; 10 mil Data Matrix: 15–180 mm; 20 mil QR: 10–360 mm |
| Minimum Element Resolution | Code 39: 3 mil; PDF417: 4 mil; Data Matrix: 5 mil; QR: 6 mil |
| Motion Tolerance | 70 cm/s (13 mil UPC at optimal focus) |
| Minimum Print Contrast | 15% |
| Roll / Pitch / Skew | ±180° / ±65° / ±70° |
| Illumination & Aimer | Warm white LED illumination (2700K); red dot LED aimer (624 nm) |
| Symbologies | 1D: Code 39, Code 128, Code 93, EAN, UPC, Code 11, Code 32 Pharmaceutical, Codabar, China Post, GS1 DataBar; 2D: Aztec, Data Matrix, QR/Micro QR, MaxiCode, Han Xin, PDF417, DotCode, postal codes; Digimarc digital watermarks; OCR-A, OCR-B, MICR E-13B, SEMI font (configuration dependent) |
| Host Interfaces | USB, Keyboard Wedge, RS-232 – interface depends on the cable used |
| Keyboard Support | 84 international keyboards |
| User Indicators | Good-decode LED, beeper (adjustable tone and volume) |
| Color | White |
| Dimensions | 180 × 66 × 43 mm (L × W × H) |
| Weight | 119 g |
| Input Voltage | 4.0–5.5 V DC |
| Current Draw | Operating: 2 W (400 mA at 5 V); standby: 0.45 W (90 mA at 5 V) |
| Environmental Sealing | IP42 |
| Drop / Tumble | 30 drops from 1.8 m to concrete; 1,000 tumbles at 0.5 m |
| Vibration | 5 G peak, 5–300 Hz |
| Electrostatic Discharge | ±15 kV air, ±8 kV indirect |
| Ambient Light Immunity | 0–100,000 lux |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −40 °C to 60 °C |
| Humidity | 0–95% RH, non-condensing |
| Software & Management | EZConfig, Scanner Management Utility (SMU), Total Freedom, Scanner Edge, SDKs and drivers |
| Warranty | 60 months |
| In the Box | Voyager XP 1400g scanner (white), USB cable (straight, 1.5 m, white, CBL-500-150-S00-05) |
Not sure which version you need? If you already have a compatible Honeywell 1400g cable, the scanner-only version is the most economical choice. For a new checkout, choose a USB kit – with the presentation stand if you also want hands-free scanning. Longer straight or coiled USB cables, RS-232 and keyboard wedge cables are available as accessories. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
