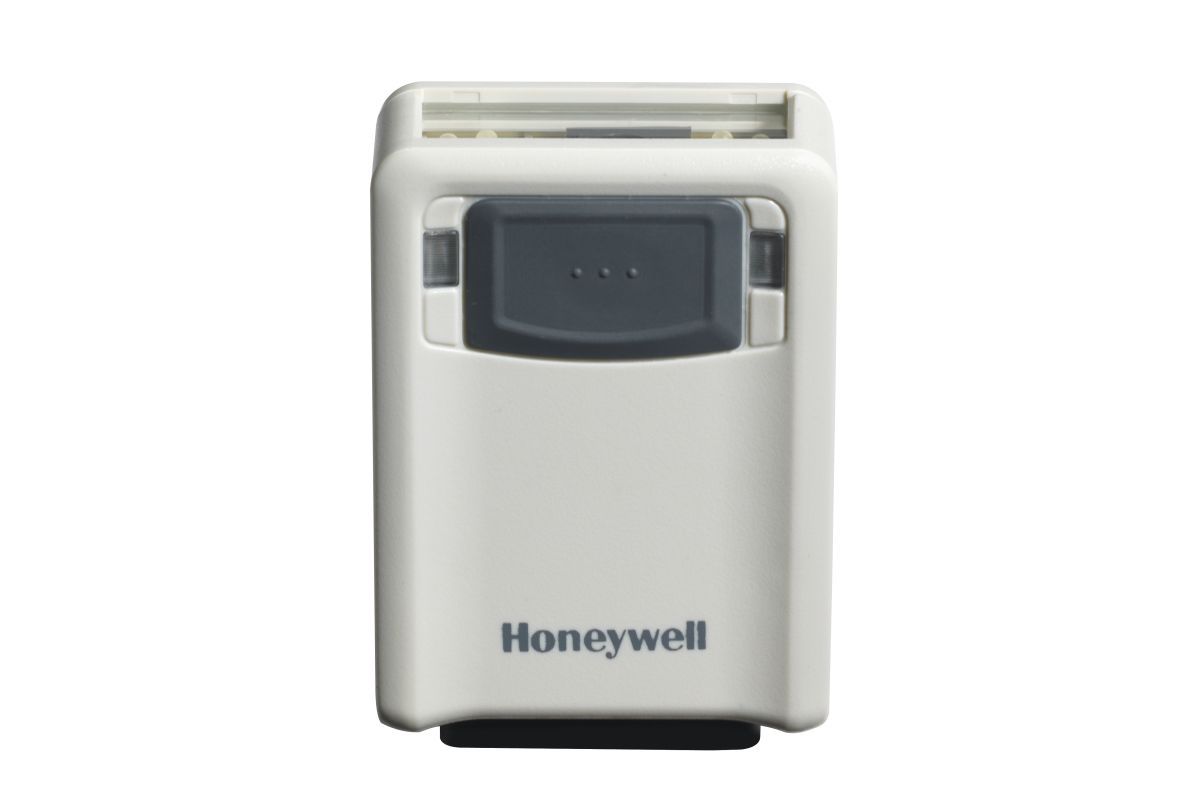

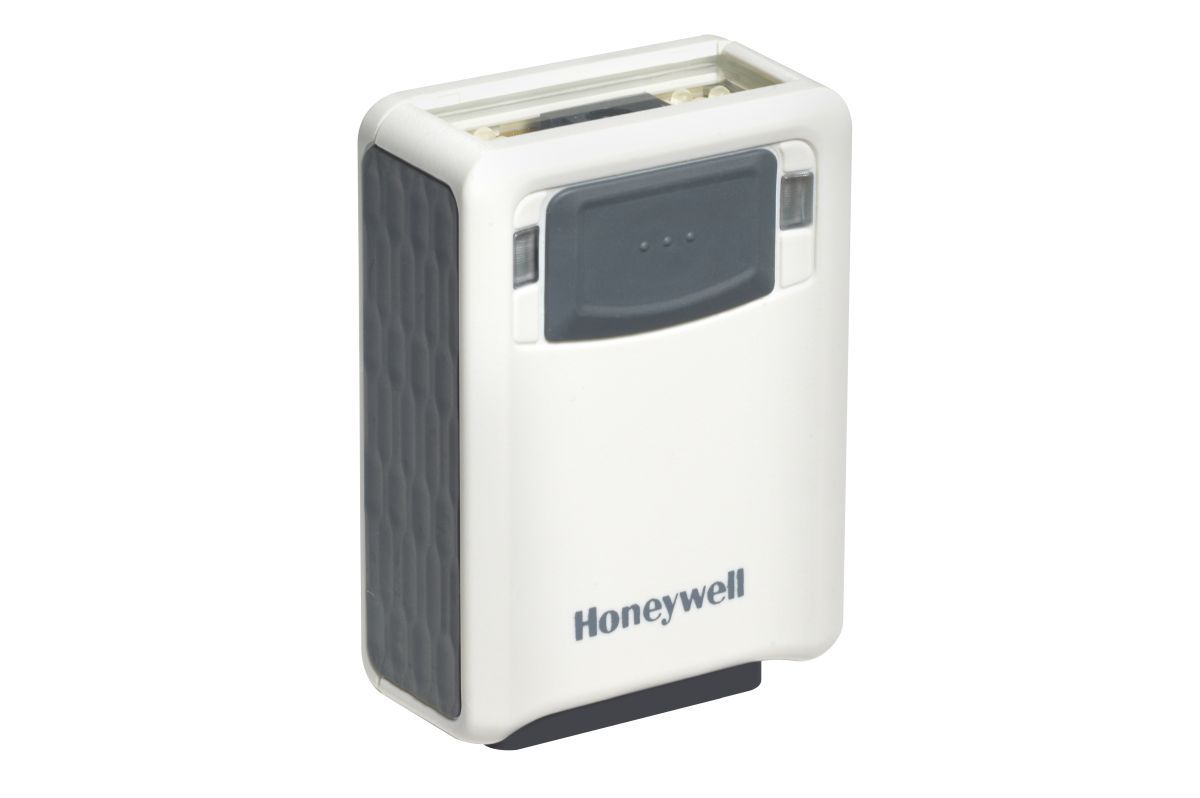

The Honeywell Vuquest 3320g is a compact, corded 2D presentation (hands-free) scanner for counters, kiosks and self-service terminals. At just 73 × 51 × 26 mm it fits where larger scanners cannot, reads 1D, PDF417 and 2D barcodes – including codes on phone screens – with laser-free aiming, and detects the host interface automatically. This version, 3320G-4, uses the Standard Range (SR) focus for everyday codes, has a light grey housing and is supplied as the scanner only – an interface cable is not included.
📦 What's in the box – 3320G-4
- ✅ Honeywell Vuquest 3320g scanner – Standard Range (SR), light grey
- ❌ Interface cable – NOT included
- ❌ Stand / mounting hardware – not included
⚠️ Please note: this version does not include a cable. The scanner cannot be connected to a computer or POS system without one, so please order an interface cable separately – for most setups the Honeywell USB cable 52-52559-N-3-FR is the right choice. Alternatively, choose a version that already includes a USB cable (see the comparison table below).
💡 Mounting: the 3320g works in hands-free presentation mode – it reads a code as soon as it is presented. Thanks to its compact size and universal mounting points it is designed to be built into counters, kiosks and self-service terminals; a stand or mounting hardware is not included.
Key Features
- Standard Range (SR) focus – reads everyday 1D and 2D codes from close up to about 43 cm (13 mil UPC-A), with a resolution of 5 mil for 1D and 6.7 mil for 2D codes.
- Compact presentation design – just 73 × 51 × 26 mm and 77 g; universal mounting makes it easy to build into counters, kiosks, ticket gates and self-service terminals.
- Reads phone screens – Adaptus Imaging Technology 6.0 reads 1D, PDF417 and 2D codes from labels as well as from mobile phone and computer screens (mobile tickets, coupons, boarding passes).
- Hands-free presentation mode – the scanner reads a code as soon as it is presented; a thumb-activated button and indicator LEDs are available for triggered use.
- Laser-free aiming, unobtrusive illumination – a clear aiming indication without laser eye-safety concerns, and lighting that is gentle on users and customers.
- Automatic interface detection – USB, RS-232 and keyboard wedge in one device; the scanner recognises the host interface by itself, so no programming barcodes are needed (RS-232 usually needs a 5 V power supply, sold separately).
- TotalFreedom 2.0 and flexible licensing – load decoding and data-formatting plug-ins directly on the scanner and add capabilities such as OCR or EasyGS1 later by purchasing a licence.
- Durable – IP53 sealed, designed to withstand 1.5 m drops, operates from −20 °C to 50 °C and comes with a 2-year Honeywell warranty.
Ideal Applications
- Retail and hospitality checkouts, ticketing and access control with mobile tickets and coupons
- Self-service kiosks, lockers, vending machines and parcel terminals
- Transport and event ticket validation (boarding passes, e-tickets)
- Light industrial and warehouse workstations with fixed-mount scanning
All Vuquest 3320g Versions
The highlighted row is the version you are currently viewing.
| Part Number | Scan Engine | Color | Cable | |
|---|---|---|---|---|
| 3320G-4 (this version) | Standard Range (SR) | Light grey | ❌ Not included | Viewing |
| 3320G-4USB-0 | Standard Range (SR) | Light grey | USB, straight 2.9 m | View product |
| 3320G-5USBX-0 | Standard Range (SR) | White | USB, straight 2.9 m | View product |
| 3320GHD-4 | High Density (HD) | Light grey | ❌ Not included | View product |
Technical Specifications
| Part Number | 3320G-4 |
|---|---|
| Model | Honeywell Vuquest 3320g (SR) |
| Scanner Type | Corded compact 2D presentation area imager |
| Scan Engine | Standard Range (SR) |
| Image Sensor | 838 × 640 pixels (Adaptus Imaging Technology 6.0) |
| Field of View | 42.4° H × 33° V |
| Depth of Field (typical) | Focal point 127 mm; 5 mil Code 39: 55–159 mm; 7.5 mil Code 39: 35–239 mm; 10 mil Code 39: 26–330 mm; 13 mil UPC-A: 39–435 mm; 6.7 mil PDF417: 36–178 mm; 10 mil Data Matrix: 47–216 mm |
| Minimum Resolution | 5 mil (0.125 mm) Code 39; 6.7 mil (0.170 mm) Data Matrix |
| Motion Tolerance | >270 cm/s at focal point |
| Minimum Print Contrast | 20% minimum reflectance difference |
| Pitch / Skew | ±45° / ±65° |
| Symbologies | Standard 1D, PDF417, 2D, Postal and OCR (configuration/licence dependent) |
| Host Interfaces | USB, RS-232, Keyboard Wedge – automatic interface detection; interface depends on the cable used |

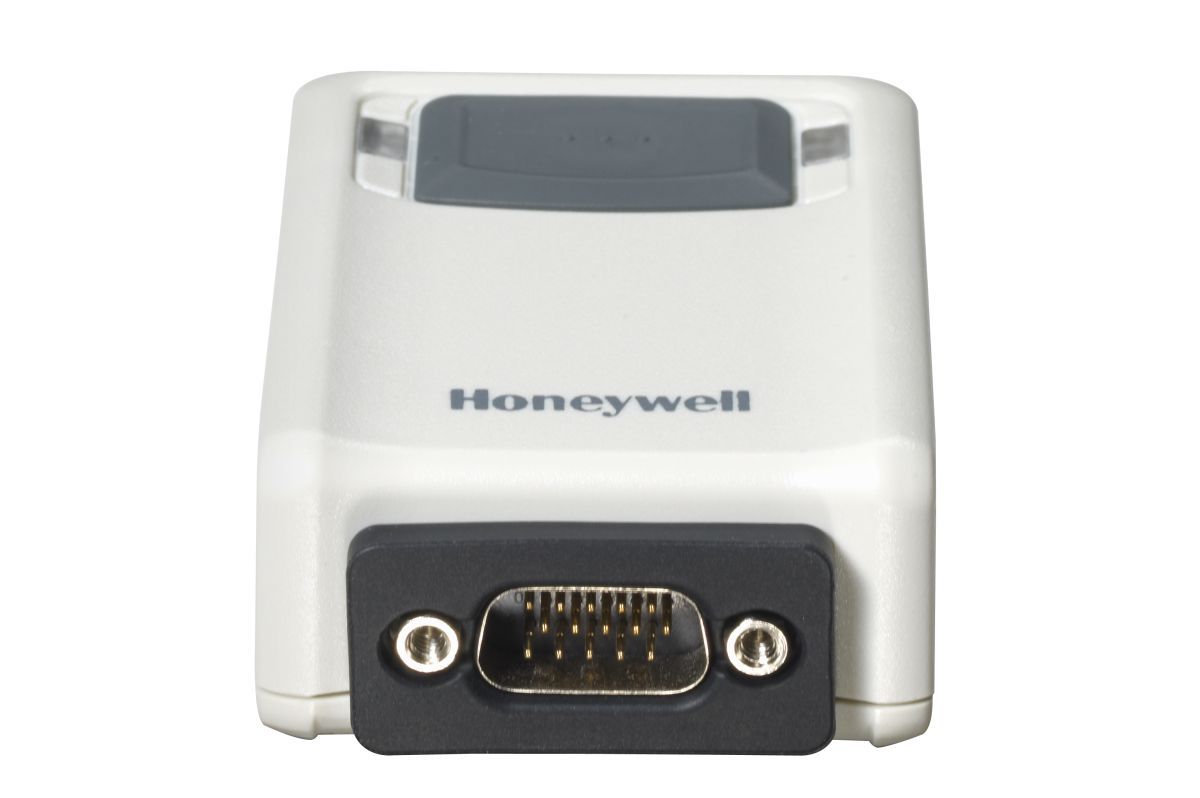

| Connector | 15-pin D-Sub |
| User Indicators | Thumb-activated button, indicator LEDs |
| Color | Light grey (Honeywell: ivory) |
| Dimensions | 73 × 51 × 26 mm (L × W × H) |
| Weight | 77 g |
| Input Voltage | 5 V DC ± 0.25 V |
| Power Consumption | 2.3 W operating (450 mA @ 5 V); 0.45 W standby (90 mA @ 5 V) |
| Environmental Sealing | IP53 |
| Drop | Designed to withstand 1.5 m drops |
| Ambient Light Immunity | 0–100,000 lux |
| Operating Temperature | −20 °C to 50 °C |
| Storage Temperature | −20 °C to 70 °C |
| Humidity | 5–95% RH, non-condensing |
| Software & Licensing | TotalFreedom 2.0 platform; flexible licensing (e.g. OCR, EasyGS1, EasyDL) |
| Mounting | Universal mounting for counters, kiosks and self-service terminals – stand / mounting hardware not included |
| Warranty | 24 months |
| In the Box | Vuquest 3320g scanner (light grey) – interface cable NOT included (order separately); no stand or mounting hardware |
Not sure which version you need? Choose Standard Range (SR) for retail, ticketing and kiosk use, or High Density (HD) for small and densely printed codes. If you already have a compatible Honeywell Vuquest 33x0g cable, the scanner-only version is the most economical choice. Compare other models in our Presentation Barcode Scanners collection or contact our team for volume pricing.
Available Versions
3320G-4
Selected
Color
Light grey
miniature scanner, 2D, imager, max. 43cm reading distance, multi-interface (RS232, KBW, USB), protection class: IP53, colour: light grey
209,51 €In Stock
3320G-4USB-0
Color
Light grey
miniature scanner, 2D, imager, max. 43cm reading distance, multi-interface (RS232, KBW, USB), protection class: IP53, incl.: cable (USB), colour: light grey
3320G-5USBX-0
Color
White
miniature scanner, 2D, imager, max. 43cm reading distance, multi-interface (RS232, KBW, USB), protection class: IP53, incl.: cable (USB, white), colour: white
3320GHD-4
Color
Light grey
miniature scanner, 2D, imager (high density), max. 43cm reading distance, multi-interface (RS232, KBW, USB), protection class: IP53, colour: light grey
