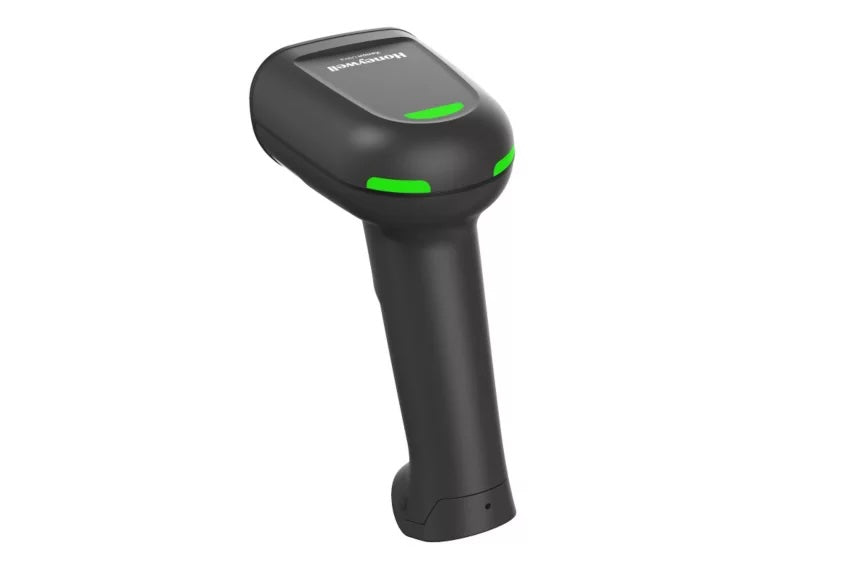

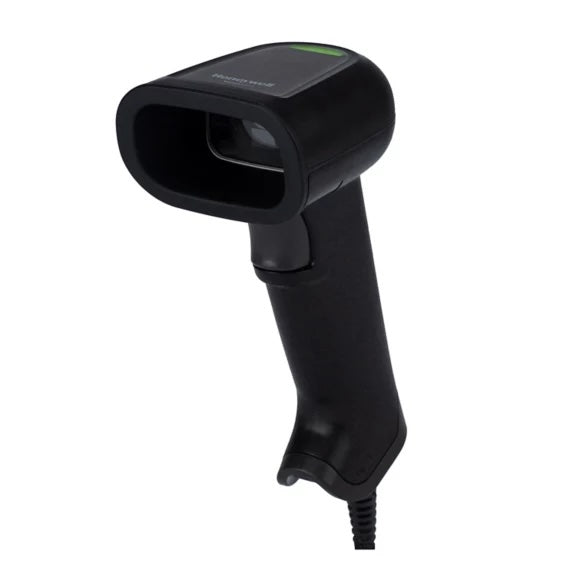

The Honeywell Xenon Ultra 1960g is a premium corded 2D handheld barcode scanner and the successor to the popular Xenon and Xenon XP 1950g series. It reads damaged and poorly printed barcodes at the first attempt, captures codes from paper labels and phone screens, and is backed by a 5-year Honeywell warranty. This version, 1960GHD-2USB-R, uses the High Density (HD) scan engine for small and densely printed codes and is supplied with a 3 m USB cable, ready to plug in and scan.
📦 What's in the box – 1960GHD-2USB-R
- ✅ Honeywell Xenon Ultra 1960g scanner – High Density (HD)
- ✅ USB cable – straight, 3 m, Honeywell CBL-500-300-S00
- ❌ Stand – not included
💡 Want hands-free scanning? Add the Honeywell flexible stand STND-22F00-016-6 to your order. The scanner switches to hands-free mode automatically when placed in the stand.
Key Features
- High Density (HD) optics – reads small, dense codes down to 3 mil Code 39 and 5 mil Data Matrix, ideal for small labels.
- Superior scanning performance – reads damaged, poorly printed and low-contrast barcodes (down to 15% print contrast), on labels and on phone screens.
- Green-dot aimer – precise targeting that speeds up scanning and improves accuracy.
- Reads more than barcodes – 1D, PDF417, 2D, Postal, DotCode, Digimarc and OCR (depending on configuration).
- Handheld or hands-free – use it in the hand or place it in an optional stand for presentation scanning with automatic object detection.
- Built to last – withstands repeated 1.8 m drops to concrete and 2,000 tumbles, IP52 sealed, with a 5-year (60-month) Honeywell warranty.
- Easy deployment – USB, RS-232 or keyboard wedge depending on the cable; reuses cables from existing Xenon XP 1950g installations; manage and update scanners with Honeywell Scanner Management Utility (SMU).
Ideal Applications
- Small, high-density labels in electronics, pharmacy and laboratories
- Warehousing, logistics and shipping/receiving
- Government and administration – ID documents, forms and OCR
- General-purpose scanning at desks and workstations
All Xenon Ultra 1960g Versions
The highlighted row is the version you are currently viewing.
| Part Number | Scan Engine | Cable | |
|---|---|---|---|
| 1960GSR-2-2 | Standard Range (SR) | ❌ Not included | View product |
| 1960GSR-2USB-R | Standard Range (SR) | USB, straight 3 m | View product |
| 1960GHD-2USB-R (this version) | High Density (HD) | USB, straight 3 m | Viewing |
| 1960LI-2USB-R | Light Industrial (LI) | USB, straight 3 m | View product |
Technical Specifications
| Part Number | 1960GHD-2USB-R |
|---|---|
| Model | Honeywell Xenon Ultra 1960g |
| Scanner Type | Corded handheld 2D area imager |
| Scan Engine | High Density (HD) |
| Image Sensor | 1280 × 1080 pixels |
| Field of View | 42° H × 36° V |
| Depth of Field (typical) | 13 mil UPC: 0–502 mm; 10 mil Code 39: 0–548 mm; 20 mil Code 39: 4–814 mm; 3 mil Code 39: 18–174 mm; 10 mil QR: 1–230 mm; 5 mil Data Matrix: 35–113 mm |
| Motion Tolerance | Up to 4 m/s |
| Minimum Print Contrast | As low as 15% |
| Roll / Pitch / Skew | ±360° / ±65° / ±65° |
| Illumination & Aimer | White LED illumination (2700K); 525 nm green-dot aimer |
| Symbologies | Standard 1D, PDF, 2D, Postal, DotCode, Digimarc and OCR (configuration dependent) |
| Host Interfaces | USB, Keyboard Wedge, RS-232 – interface depends on the cable used |
| User Indicators | Good-decode LEDs, rear-view LEDs, beeper (adjustable tone and volume) |
| Color | Black |
| Dimensions | 108.2 × 70.4 × 160.2 mm |
| Weight | 147.2 g |
| Input Voltage | 4.4–5.5 V DC |
| Environmental Sealing | IP52 |
| Drop / Tumble | Multiple 1.8 m drops to concrete; 3.0 m MIL-spec drop; 2,000 tumbles at 0.5 m |
| Electrostatic Discharge | ±15 kV air, ±8 kV indirect |
| Ambient Light Immunity | 0–100,000 lux |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | −40 °C to 70 °C |
| Humidity | 0–95% RH, non-condensing |
| Software & Management | Honeywell Scanner Management Utility (SMU) |
| Warranty | 60 months |
| In the Box | Xenon Ultra 1960g scanner, USB cable (straight, 3 m, CBL-500-300-S00) |
Not sure which version you need? Choose Standard Range (SR) for general retail and office use, High Density (HD) for small or densely printed codes, and Light Industrial (LI) for direct part marks in electronics and manufacturing. If you already have a compatible Honeywell cable, the scanner-only version is the most economical choice. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
Available Versions
1960GHD-2USB-R
Selected
High Density (HD)
Includes: USB cable (straight, 3 m)
handheld scanner, 2D, imager (high density), incl.: OCR, desinfectable housing, interfaces, connection: multi-interface (RS232, KBW, USB), incl.: cable (type A, cable length, 3 m, cable type: straight), colour, black
163,60 €In Stock
1960GSR-2-2
Standard Range (SR)
Interface cable not included
handheld scanner, 2D, OCR, desinfectable housing, incl.: QSG, order separately: connection cable
1960GSR-2USB-R
Standard Range (SR)
Includes: USB cable (straight, 3 m)
handheld scanner, 2D, standard range, OCR, desinfectable housing, interfaces, connection: multi-interface (RS232, KBW, USB), incl.: cable (type A, 3 m, straight)
1960LI-2USB-R
Light Industrial (LI)
Includes: USB cable (straight, 3 m)
handheld scanner, 2D, high density, OCR, desinfectable housing, connection: RS232, KBW, USB, incl.: cable (type A, 3 m, straight)
