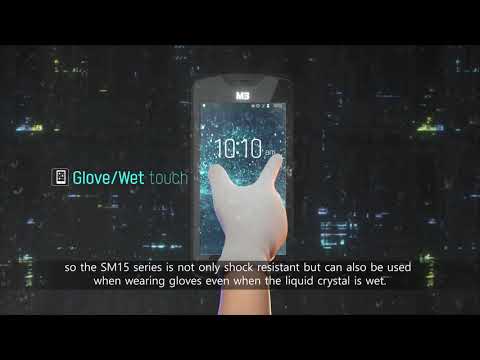

The M3 Mobile SM15W is a rugged full-touch Android mobile computer in a slim smartphone format – built for field sales, delivery, retail and warehouse staff who scan all day. It combines a 5" Corning Gorilla Glass touchscreen that works with gloves and wet fingers, an octa-core Qualcomm Snapdragon processor, NFC, a hot-swappable battery and IP65 sealing. This version, S15W0C-12CHSE-HF, is the Wi-Fi model with a 5" HD display. Configuration: the SE4710 2D imager, 2 GB RAM / 16 GB Flash, Android 8.1 without Google services (AOSP), extended 6150 mAh battery.
📦 What's in the box – S15W0C-12CHSE-HF
- ✅ M3 Mobile SM15W – mobile computer, black, 5" HD, SE4710, 2 GB / 16 GB
- ✅ Battery – extended 6150 mAh Li-ion with extended battery cover, hot-swappable (SM15-BATT-E61)
- ✅ Android without Google services (AOSP) – no Google Play or Google apps – for locked-down enterprise deployments
- ✅ Protective display film – fitted to the device
- ✅ Quick start guide – drivers, tools and user guides are a free download from M3 Mobile
- ❌ Charger / power supply – NOT included – the SM15W has no charging socket of its own – it charges in a charging cradle or with a snap-on charging adapter (see the options below)
- ❌ Charging cradle – NOT included
- ❌ Hand strap – NOT included
⚠️ Please note: no charger, charging cable or cradle is included. To charge the SM15W, please order separately: the M3 SM15-2CRD-CC0 2-slot charging/USB cradle (terminal + spare battery) with the M3 SM15-PWSP-2EU power supply; the M3 SM15-2CRD-C00 (charging only) or M3 SM15-2CRD-EC0 (Ethernet) 2-slot cradle, also with the M3 SM15-PWSP-2EU power supply; or the M3 SM15-SNAP-C0A USB-C or M3 SM15-SNAP-C0U USB snap-on charging adapter with a 5 V USB power adapter (e.g. M3 SM10-PWSP-U00).
💡 Useful extras: a spare battery for hot-swapping (M3 SM15-BATT-E61); the M3 SM15-8CRD-C00 or M3 SM15-8CRD-E00 cradles for 4 terminals + 4 spare batteries (with the M3 SM15-PWSP-8EU power supply); a pistol grip – M3 SM10-TRIG-S00 or M3 SM15-TRIG-L00 with built-in long-range scanner; the M3 SM1X-BOOT-02 protective boot for extra drop protection; hand straps (M3 SM10-STRP-S10, pack of 10); a holster or fabric case (M3 UNIV-CASE-FSH or M3 UNIV-CASE-F00); the M3 SM15-SCPR screen protector; a vehicle cradle (M3 SM15-VCRD-C01 or M3 SM15-VCRD-C02) with RAM mount (M3 UNIV-RAMT or M3 UNIV-RAMS); a wearable kit for hands-free scanning (M3 SM15-WEWM-UA1, M3 SM15-WEWM-UB1 and M3 SM15-WETR-U00); UHF RFID reading with the M3 SM15-SNAP-UEB snap-on or the M3 SM15-TRIG-UEB RFID pistol grip; a service plan with fast repair and battery replacement (M3 SM15-SPST-FB3 or M3 SM15-SPST-FB5).
Key Features
- Smartphone format, rugged build – only 21.6 mm thin, IP65 dust and water protection, 1.2 m drops to concrete (1.8 m with protective boot) and 500 tumbles at 1 m with boot.
- Wi-Fi model – 2.0 GHz Qualcomm Snapdragon 625 octa-core, 2 GB RAM / 16 GB flash, 5" HD display and 13 MP auto-focus camera for sites with full Wi-Fi coverage.
- SE4710 2D imager – reads 1D and 2D codes (QR, Data Matrix, PDF417) from any angle, also from smartphone screens.
- 5" Gorilla Glass touchscreen – sunlight-readable, Corning Gorilla Glass 3, works with gloves, wet fingers or a stylus; scan keys on both sides plus Home, Back, Menu and Enter keys.
- Extended 6150 mAh battery with hot swap – runs a full shift and beyond; fast charging and battery replacement without switching off (340 g with extended battery).
- Enterprise connectivity – dual-band Wi-Fi 5 (802.11ac), Bluetooth 4.1 LE and NFC (ISO 14443 A/B, ISO 15693); UHF RFID via snap-on or pistol-grip reader.
- Complete accessory system – 2-slot and 8-slot charging/Ethernet cradles, USB snap-on chargers, pistol grips (incl. long range), wearable wrist mount and belt sled, vehicle cradles and RAM mounts.
Ideal Applications
- Field sales, order taking and route accounting
- Parcel and courier delivery with proof of delivery
- Retail stock checks, price checks and mobile POS
- Warehouse picking, receiving and inventory
- Field service and maintenance
- Hands-free scanning with wrist mount or belt sled and ring trigger
All SM15 Versions
The highlighted row is the version you are currently viewing.
| Part Number | Model | Connectivity | Scan Engine | Memory | Operating System | Battery | |
|---|---|---|---|---|---|---|---|
| S15W0C-N2CHSS-HF | SM15W | Wi-Fi only | SE4710 | 2 GB / 16 GB | Android 7.1 GMS | Standard 4100 mAh | View product |
| S15W0C-N2CHSE-HF | SM15W | Wi-Fi only | SE4710 | 2 GB / 16 GB | Android 7.1 GMS | Extended 6150 mAh | View product |
| S15W0C-12CHSS-HF | SM15W | Wi-Fi only | SE4710 | 2 GB / 16 GB | Android 8.1 AOSP | Standard 4100 mAh | View product |
| S15W0C-12CHSE-HF (this version) | SM15W | Wi-Fi only | SE4710 | 2 GB / 16 GB | Android 8.1 AOSP | Extended 6150 mAh | Viewing |
| S15N4C-N2CHSS-HF | SM15N | 4G LTE + GPS | SE4710 | 2 GB / 16 GB | Android 7.1 GMS | Standard 4100 mAh | View product |
| S15N4C-N2CHSE-HF | SM15N | 4G LTE + GPS | SE4710 | 2 GB / 16 GB | Android 7.1 GMS | Extended 6150 mAh | View product |
| S15N4C-O0CHSE-HF | SM15N | 4G LTE + GPS | camera only | 2 GB / 16 GB | Android 8.1 GMS | Extended 6150 mAh | View product |
| S15N4C-O1CHSS-HF | SM15N | 4G LTE + GPS | SE965 1D | 2 GB / 16 GB | Android 8.1 GMS | Standard 4100 mAh | View product |
| S15N4C-O2CHSS-HF | SM15N | 4G LTE + GPS | SE4710 | 2 GB / 16 GB | Android 8.1 GMS | Standard 4100 mAh | View product |
| S15N4C-O2CHSE-HF | SM15N | 4G LTE + GPS | SE4710 | 2 GB / 16 GB | Android 8.1 GMS | Extended 6150 mAh | View product |
| S15N4C-Q1CHSS-HF | SM15N | 4G LTE + GPS | SE965 1D | 2 GB / 16 GB | Android 10 GMS | Standard 4100 mAh | View product |
| S15N4C-Q1CHSE-HF | SM15N | 4G LTE + GPS | SE965 1D | 2 GB / 16 GB | Android 10 GMS | Extended 6150 mAh | View product |
| S15N4C-Q2CHSS-HF | SM15N | 4G LTE + GPS | SE4710 | 2 GB / 16 GB | Android 10 GMS | Standard 4100 mAh | View product |
| S15X4C-N2CFSE-HF-R | SM15X | 4G LTE + GPS | SE4710 | 4 GB / 64 GB | Android 7.1 GMS | Extended 6150 mAh | View product |
| S15X4C-N3CFSE-HF-R | SM15X | 4G LTE + GPS | SE4750 | 4 GB / 64 GB | Android 7.1 GMS | Extended 6150 mAh | View product |
| S15X4C-O0CFSS-HF-R | SM15X | 4G LTE + GPS | camera only | 4 GB / 64 GB | Android 8.1 GMS | Standard 4100 mAh | View product |
| S15X4C-O2CFSS-HF-R | SM15X | 4G LTE + GPS | SE4710 | 4 GB / 64 GB | Android 8.1 GMS | Standard 4100 mAh | View product |
| S15X4C-O2CFSE-HF-R | SM15X | 4G LTE + GPS | SE4710 | 4 GB / 64 GB | Android 8.1 GMS | Extended 6150 mAh | View product |
| S15X4C-O2CFSS-HF-STR | SM15X | 4G LTE + GPS | SE4750 | 4 GB / 64 GB | Android 8.1 GMS | Standard 4100 mAh | View product |
| S15X4C-O2CFSE-HF-STR | SM15X | 4G LTE + GPS | SE4750 | 4 GB / 64 GB | Android 8.1 GMS | Extended 6150 mAh | View product |
| S15X4C-Q1CFSS-HF | SM15X | 4G LTE + GPS | SE965 1D | 4 GB / 64 GB | Android 10 GMS | Standard 4100 mAh | View product |
| S15X4C-Q1CFSE-HF | SM15X | 4G LTE + GPS | SE965 1D | 4 GB / 64 GB | Android 10 GMS | Extended 6150 mAh | View product |
| S15X4C-Q2CFSS-HF | SM15X | 4G LTE + GPS | SE4710 | 4 GB / 64 GB | Android 10 GMS | Standard 4100 mAh | View product |
| S15X4C-Q2CFSE-HF | SM15X | 4G LTE + GPS | SE4710 | 4 GB / 64 GB | Android 10 GMS | Extended 6150 mAh | View product |
| S15X4C-Q3CFSS-HF | SM15X | 4G LTE + GPS | SE4750 | 4 GB / 64 GB | Android 10 GMS | Standard 4100 mAh | View product |
| S15X4C-Q3CFSE-HF | SM15X | 4G LTE + GPS | SE4750 | 4 GB / 64 GB | Android 10 GMS | Extended 6150 mAh | View product |
Technical Specifications
| Part Number | S15W0C-12CHSE-HF |
|---|---|
| Model | M3 Mobile SM15W – Wi-Fi model of the SM15 full-touch series |
| Operating System | Android 8.1 (Oreo) without Google Mobile Services (AOSP build – no Google Play) |
| Processor | Qualcomm Snapdragon 625, octa-core 2.0 GHz |
| Memory (RAM / Flash) | 2 GB RAM / 16 GB Flash |
| Expansion | microSD slot |
| Display | 5" HD TFT (1280 × 720), outdoor-viewable, Corning Gorilla Glass 3 |
| Touch Panel | Capacitive – finger, glove, wet operation and pen |
| Buttons | Power, volume +/–, camera key, 2 side scan keys (left/right), 4 front keys (Home, Back, Menu, Enter/Scan) |
| Scan Engine | Zebra SE4710 1D/2D imager (standard range) |
| Rear Camera | 13 MP auto-focus |
| Front Camera | None |
| Wi-Fi | Wi-Fi 5 – IEEE 802.11 a/b/g/n/ac, dual-band |
| Bluetooth | Bluetooth 4.1 LE, Class II |
| NFC | HF 13.56 MHz – ISO 14443 A/B, ISO 15693 |
| RFID | UHF (EPC C1 Gen2, ISO 18000-6C) optional via SM15-SNAP-UEB snap-on or SM15-TRIG-UEB pistol grip |
| Mobile Data (WWAN) | Not available – Wi-Fi only (choose the SM15N or SM15X for 4G LTE) |
| GPS/GNSS | Not available |
| Voice & Audio | Speaker, microphone, vibration; Bluetooth headset support |
| Ports | Micro-USB docking connector – used via a USB snap-on or charging cradle (no separate charging socket) |
| Sensors | Gyroscope, proximity sensor, light sensor |
| Battery | Extended 6150 mAh / 3.8 V Li-ion (SM15-BATT-E61) with extended battery cover; fast charging; hot-swappable |
| Charging | In a charging cradle (e.g. SM15-2CRD-CC0 with SM15-PWSP-2EU) or with a USB snap-on charging adapter – not included |
| Form Factor | Full-touch rugged mobile computer (smartphone format) |
| Dimensions | 76.4 × 154.8 × 21.6 mm (W × H × D) |
| Weight | 340 g (with extended battery) |
| Drop Spec | 1.2 m to concrete (1.8 m with protective boot) |
| Tumble Spec | 1,000 tumbles at 0.5 m; 500 tumbles at 1 m (with boot) |
| Sealing | IP65 |
| Operating Temperature | −20 °C to 60 °C |
| Storage Temperature | −30 °C to 80 °C |
| Humidity | 0–95% non-condensing |
| Colour | Black |
| Warranty | 12 months (M3 Mobile 1-year hardware warranty); 3- and 5-year M3 service packages available |
| In the Box | M3 Mobile SM15W mobile computer (S15W0C-12CHSE-HF), extended 6150 mAh Li-ion battery with extended battery cover (SM15-BATT-E61), Android 8.1 without Google Mobile Services (AOSP), protective display film (factory-fitted), quick start guide – charging cradle / snap-on charger, power supply and hand strap NOT included (order separately) |
The SM15 series comprises the SM15W (Wi-Fi), the SM15N (4G LTE, HD display) and the top model SM15X (4G LTE, Full HD, 4 GB RAM). Need mobile data on the road? The M3 Mobile SM15N (S15N4C-N2CHSE-HF) adds 4G LTE and GPS. For more performance and a Full HD display, choose the M3 Mobile SM15X (S15X4C-N2CFSE-HF-R). M3 Mobile's current full-touch model is the M3 Mobile SM20. Compare all models in our Handheld Terminals collection, or contact our team for volume pricing, staging and MDM set-up.
Available Versions
| Part Number | Mobile Broadband | Operating System | Memory | Scanner | Battery (mAh) | Price | ||
|---|---|---|---|---|---|---|---|---|
 |
S15N4C-N2CHSE-HF | 4G LTE + GPS | Android 7.1 (GMS) | 2 GB / 16 GB | SE4710 standard range | 6150 | 948,37 €+VATOut of Stock | View |
 |
S15N4C-N2CHSS-HF | 4G LTE + GPS | Android 7.1 (GMS) | 2 GB / 16 GB | SE4710 standard range | 4100 | 929,55 €+VATOut of Stock | View |
 |
S15N4C-O0CHSE-HF | 4G LTE + GPS | Android 8.1 (GMS) | 2 GB / 16 GB | No scan engine (camera only) | 6150 | 734,14 €+VATOut of Stock | View |
 |
S15N4C-O1CHSS-HF | 4G LTE + GPS | Android 8.1 (GMS) | 2 GB / 16 GB | SE965 1D laser | 4100 | 874,76 €+VATOut of Stock | View |
 |
S15N4C-O2CHSE-HF | 4G LTE + GPS | Android 8.1 (GMS) | 2 GB / 16 GB | SE4710 standard range | 6150 | 948,37 €+VATOut of Stock | View |
 |
S15N4C-O2CHSS-HF | 4G LTE + GPS | Android 8.1 (GMS) | 2 GB / 16 GB | SE4710 standard range | 4100 | 929,55 €+VATOut of Stock | View |
 |
S15N4C-Q1CHSE-HF | 4G LTE + GPS | Android 10 (GMS) | 2 GB / 16 GB | SE965 1D laser | 6150 | 893,58 €+VATOut of Stock | View |
 |
S15N4C-Q1CHSS-HF | 4G LTE + GPS | Android 10 (GMS) | 2 GB / 16 GB | SE965 1D laser | 4100 | 795,24 €+VATOut of Stock | View |
 |
S15N4C-Q2CHSS-HF | 4G LTE + GPS | Android 10 (GMS) | 2 GB / 16 GB | SE4710 standard range | 4100 | 929,55 €+VATOut of Stock | View |
 |
S15W0C-12CHSE-HFViewing | Wi-Fi only | Android 8.1 (AOSP) | 2 GB / 16 GB | SE4710 standard range | 6150 | 790,65 €+VATOut of Stock | |
 |
S15W0C-12CHSS-HF | Wi-Fi only | Android 8.1 (AOSP) | 2 GB / 16 GB | SE4710 standard range | 4100 | 823,88 €+VATOut of Stock | View |
 |
S15W0C-N2CHSE-HF | Wi-Fi only | Android 7.1 (GMS) | 2 GB / 16 GB | SE4710 standard range | 6150 | 925,06 €+VATOut of Stock | View |
 |
S15W0C-N2CHSS-HF | Wi-Fi only | Android 7.1 (GMS) | 2 GB / 16 GB | SE4710 standard range | 4100 | 906,27 €+VATOut of Stock | View |
 |
S15X4C-N2CFSE-HF-R | 4G LTE + GPS | Android 7.1 (GMS) | 4 GB / 64 GB | SE4710 standard range | 6150 | 1.027,38 €+VATOut of Stock | View |
 |
S15X4C-N3CFSE-HF-R | 4G LTE + GPS | Android 7.1 (GMS) | 4 GB / 64 GB | SE4750 mid range | 6150 | 1.063,96 €+VATOut of Stock | View |
 |
S15X4C-O0CFSS-HF-R | 4G LTE + GPS | Android 8.1 (GMS) | 4 GB / 64 GB | No scan engine (camera only) | 4100 | 834,01 €+VATIn Stock | |
 |
S15X4C-O2CFSE-HF-R | 4G LTE + GPS | Android 8.1 (GMS) | 4 GB / 64 GB | SE4710 standard range | 6150 | 1.027,38 €+VATOut of Stock | View |
 |
S15X4C-O2CFSE-HF-STR | 4G LTE + GPS | Android 8.1 (GMS) | 4 GB / 64 GB | SE4750 mid range | 6150 | 1.098,12 €+VATOut of Stock | View |
 |
S15X4C-O2CFSS-HF-R | 4G LTE + GPS | Android 8.1 (GMS) | 4 GB / 64 GB | SE4710 standard range | 4100 | 1.009,43 €+VATOut of Stock | View |
 |
S15X4C-O2CFSS-HF-STR | 4G LTE + GPS | Android 8.1 (GMS) | 4 GB / 64 GB | SE4750 mid range | 4100 | 1.080,17 €+VATOut of Stock | View |
 |
S15X4C-Q1CFSE-HF | 4G LTE + GPS | Android 10 (GMS) | 4 GB / 64 GB | SE965 1D laser | 6150 | 928,65 €+VATOut of Stock | View |
 |
S15X4C-Q1CFSS-HF | 4G LTE + GPS | Android 10 (GMS) | 4 GB / 64 GB | SE965 1D laser | 4100 | 911,56 €+VATOut of Stock | View |
 |
S15X4C-Q2CFSE-HF | 4G LTE + GPS | Android 10 (GMS) | 4 GB / 64 GB | SE4710 standard range | 6150 | 1.027,38 €+VATOut of Stock | View |
 |
S15X4C-Q2CFSS-HF | 4G LTE + GPS | Android 10 (GMS) | 4 GB / 64 GB | SE4710 standard range | 4100 | 961,37 €+VATOut of Stock | View |
 |
S15X4C-Q3CFSE-HF | 4G LTE + GPS | Android 10 (GMS) | 4 GB / 64 GB | SE4750 mid range | 6150 | 1.063,96 €+VATIn Stock | |
 |
S15X4C-Q3CFSS-HF | 4G LTE + GPS | Android 10 (GMS) | 4 GB / 64 GB | SE4750 mid range | 4100 | 996,21 €+VATOut of Stock | View |
