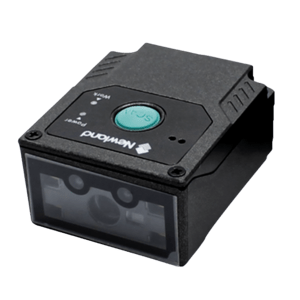

Newland FM430 Barracuda Fixed Mount Scanner (NLS-FM430L-00)

The Newland FM430 Barracuda is a compact fixed-mount 2D scanner module (just 41.5 × 49.5 × 24.3 mm) for building into self-service kiosks, ticket machines, access gates, checkout counters and production lines. Its megapixel camera (1280 × 800) and 1 GHz processor read all major 1D and 2D barcodes – including very small codes and codes on smartphone screens – at 60 frames per second, while IR and light sensors start scanning automatically as soon as a code is presented and adapt the white illumination to the situation. IP54 sealing and a 1.5 m drop rating make it suitable for outdoor kiosks too, and Newland covers it with a 5-year warranty. This version, NLS-FM430L-00, has a red laser cross-hair aimer (the “L” in the part number) whose bright, precise aiming pattern makes scanning intuitive even for first-time users, and is the short-cable USB kit: it is supplied with a 0.5 m USB cable for installation right next to the host computer – no power supply needed.

Key Features

• Megapixel camera – the 1280 × 800 sensor and a 1 GHz processor read 1D and 2D barcodes – including very small, dense codes and codes on smartphone screens – at 60 frames per second; OCR is supported as well.
• Snappy in less than perfect conditions – the combination of an IR sensor and a light sensor wakes the scanner as soon as a code is presented, and the white illumination automatically adjusts its brightness to the light reflected by the barcode.
• Your choice of aimer – a green LED aimer (FM430) for customer-facing installations, or a bright red laser cross-hair (FM430L) that makes scanning intuitive even for inexperienced users.
• Hands-free or triggered – sense and continuous modes for automatic scanning, or manual triggering if preferred (level and pulse modes).
• Tiny and robust – at 41.5 × 49.5 × 24.3 mm and 75 g it fits almost anywhere; IP54 sealing and a 1.5 m drop rating allow use in outdoor kiosks and demanding environments.
• Dual interface, easy integration – USB (HID keyboard, USB CDC virtual COM, HID-POS, IBM SurePOS) or RS-232 via the detachable cable on the RJ50 data port; EasySet configuration tool and a 5-year Newland warranty.

Ideal Applications

• Self-service kiosks and ticket machines – mobile tickets, e-vouchers and booking codes
• Access control and turnstiles – event, transport and gym tickets or QR access codes
• Vending machines, lockers and parcel terminals – pick-up codes and payment QR codes
• Retail POS and self-checkouts – built into the counter for loyalty cards, coupons and scan-to-pay codes
• Production lines and conveyors – automatic identification of products, parts and cartons
• Postal services, gaming and parking – parcel labels, cash-out tickets and parking tickets

All FM430 / FM431 Barracuda Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version to choose? All versions share the same compact housing and mounting points. First choose the model by aimer and performance – FM430 with a green LED aimer (e.g. NLS-FM430-U), FM430L with a red laser aimer (e.g. NLS-FM430L-U) or the faster FM431 Barracuda PRO with dual aiming and a longer reading range (e.g. NLS-FM431-SR-U) – and then the kit: -U with a 2 m USB cable, -00 with a short 0.5 m USB cable, or -RC with an RS-232 cable and power adapter. Compare other built-in scanners in our In-Counter Barcode Scanners collection or contact our team for volume pricing and integration advice.
