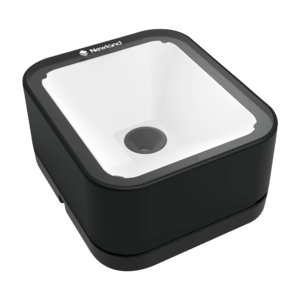

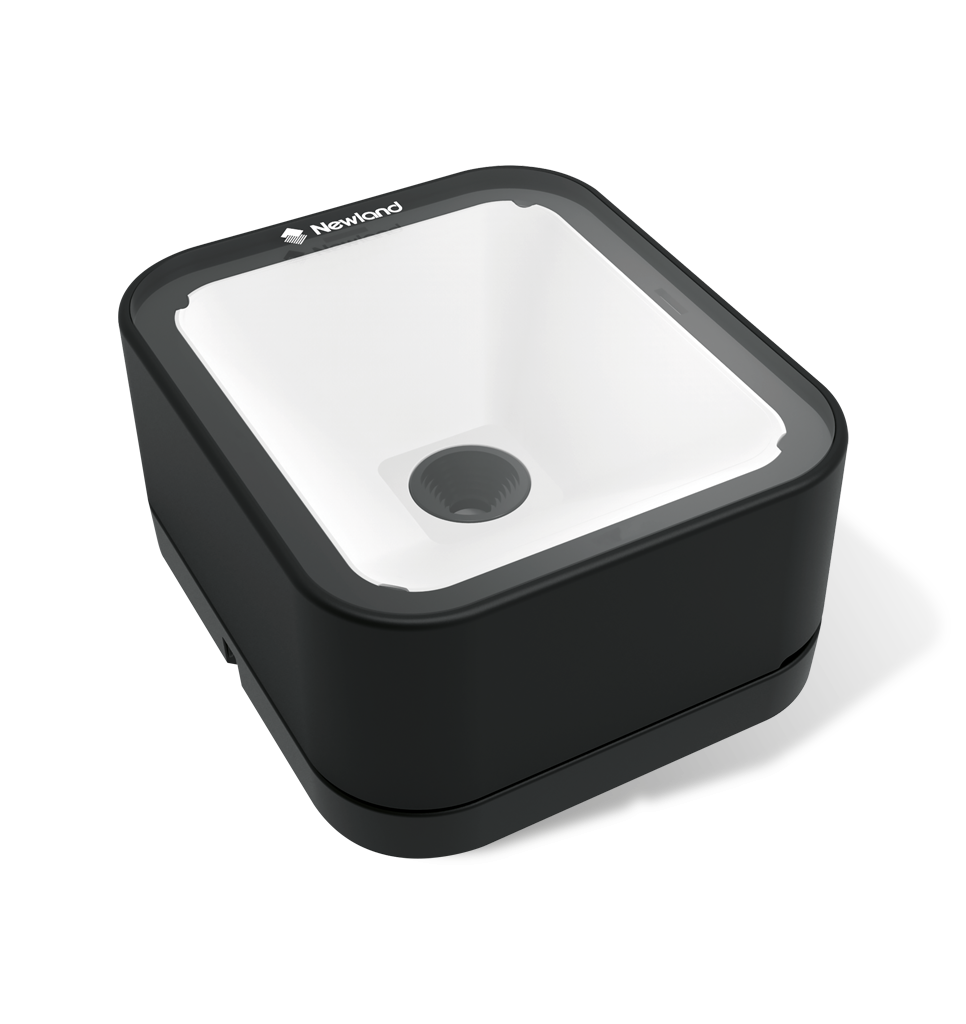

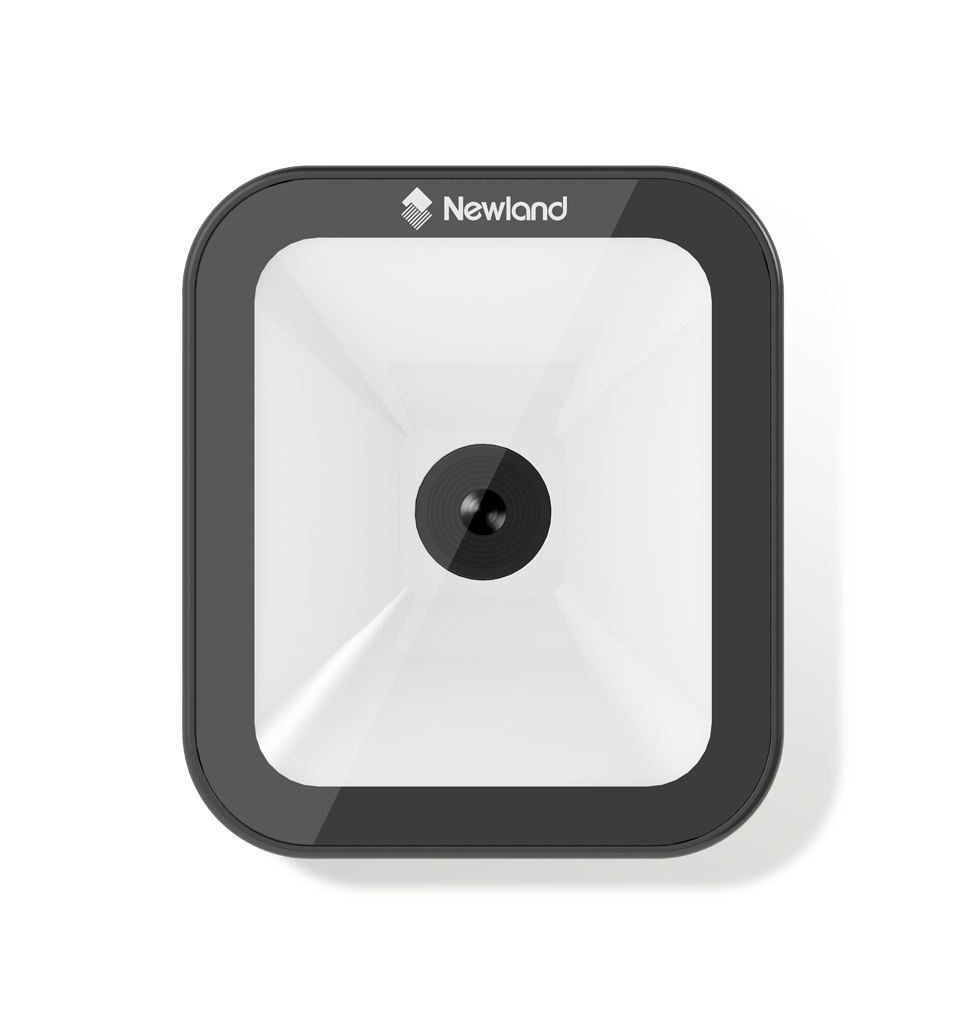

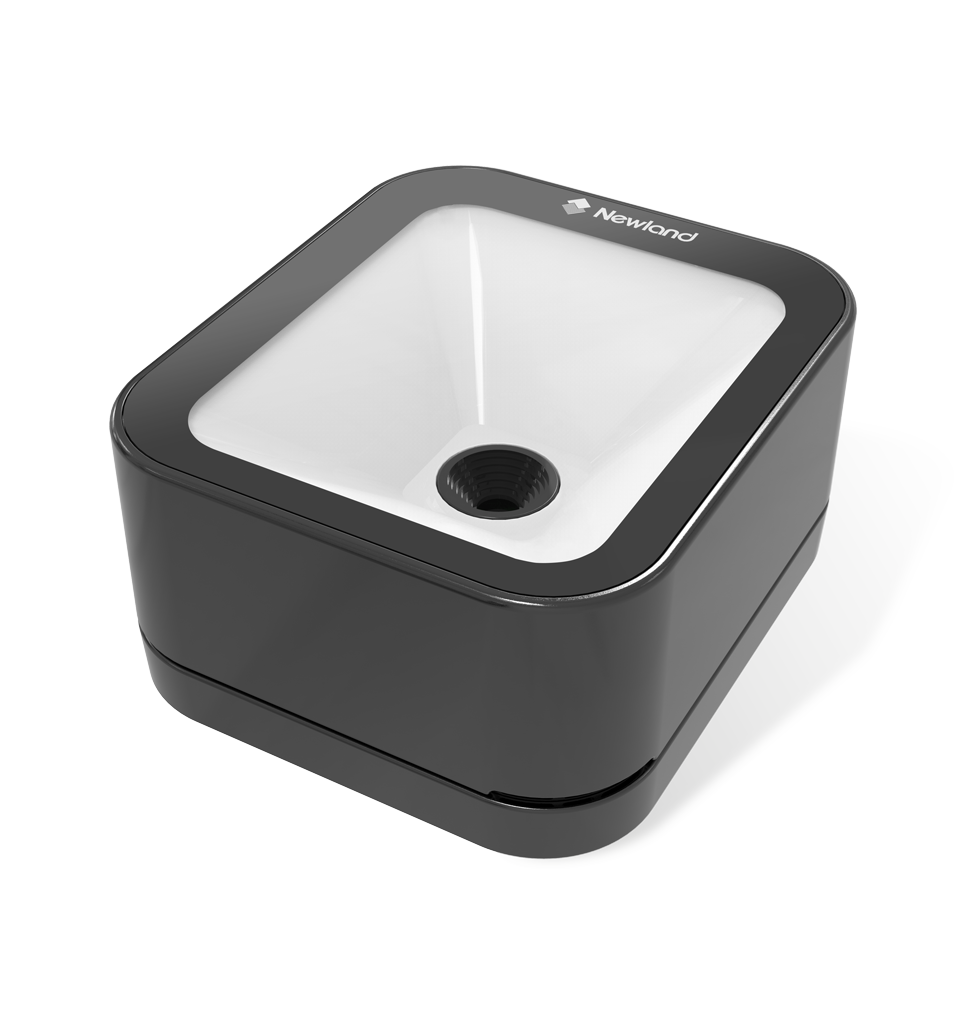

Newland FR2780 Urchin Series Presentation Scanner (NLS-FR2780-B-20)

The Newland FR27 Urchin is a small, stylish corded presentation scanner designed for self-service scanning: customers simply hold a phone screen, ticket or product over the window and the scan happens automatically. Its remarkably wide field of view (84.8° diagonal) reads even large QR codes on big phone screens, and it captures all major 1D and 2D barcodes on paper, metal and plastic. It is backed by a 5-year (60-month) Newland warranty. This version, NLS-FR2780-B-20, comes in black and is supplied with a 1.5 m USB cable – ready to plug in and scan, no power supply needed.

Key Features

• Built for self-service scanning from screens – a remarkably wide field of view (68° × 51°, 84.8° diagonal) reads even the largest codes on big phone screens: mobile tickets, e-coupons, loyalty cards and payment QR codes.
• Paper, metal and plastic – reads all major 1D and 2D codes (QR Code, Data Matrix, Aztec, PDF417 and more), even on curved and creased surfaces; 640 × 480 CMOS sensor, GS1 ready.
• Fast scanning – 2.7 m/s motion tolerance, 360° roll and ±75° pitch and skew, so codes never need to be lined up; sense mode starts scanning automatically as soon as a code is presented.
• Clear visual feedback – soft white illumination and a green good-read LED projected onto the white background, plus a beeper – giving self-service customers confidence that the scan was successful.
• Small and stylish – only 66.3 × 76.3 × 38 mm and 120 g; the smooth, simple finish blends in with any countertop from boutique to café, in black or white.
• Flexible mounting options – the cable can be routed for portrait or landscape mounting, and threaded fixing points allow vertical installation in kiosks, access gates and turnstiles.
• Plug and play – powered via USB (no power supply), USB HID keyboard by default, plus USB CDC (virtual COM), HID-POS and IBM SurePOS; configured with the EasySet tool; IP42, 1.5 m drop rating and a 5-year warranty.

Ideal Applications

• Self-service checkouts and kiosks – customers scan mobile coupons, loyalty cards and payment QR codes
• Access control and ticketing – event tickets, boarding passes, membership cards, gates and turnstiles
• Cafés, restaurants and hospitality – order and voucher codes at the counter
• Boutiques and convenience stores – a compact checkout on a small counter
• Entertainment and logistics – cinemas, events, and parcel pick-up and return codes at parcel lockers and collection points

All FR2780 Urchin Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version to choose? Both versions are technically identical and include the 1.5 m USB cable – they differ only in colour: NLS-FR2780-B-20 in classic black, or NLS-FR2780-20 in white for bright, modern counters and kiosks (minimum order 20 units). Compare other hands-free models in our Presentation Barcode Scanners collection or contact our team for volume pricing and integration advice.
