Newland HR32 Marlin HC Barcode Scanner (NLS-HR3280-SF-HC)

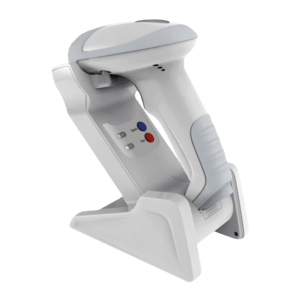

The Newland HR32 Marlin Corded HC is the healthcare version of Newland's HR32 Marlin 2D handheld scanner. Its white housing with an antibacterial coating is made for hospitals, pharmacies, laboratories and care homes, where scanners are handled by many people and cleaned many times a day. The 1280 × 800 megapixel CMOS sensor reads all common 1D and 2D barcodes – including QR codes, Data Matrix and PDF417 on patient wristbands, medication packs and specimen labels, as well as codes on phone screens – quickly and reliably, even very small and high-density codes. With a dual USB and RS-232 interface, IP52 sealing, a 1.5 m drop rating and a 5-year warranty, the HR32 Marlin HC is built for long, scan-intensive shifts. This version, NLS-HR3280-SF-HC, is the USB kit with stand: it is supplied with a white, straight 2 m USB cable and a white foldable smart stand (NLS-STD20i-32-HC) for hands-free scanning.

Key Features

• Healthcare-ready housing – the white PC/ABS housing has an antibacterial coating and is designed for frequent cleaning and disinfection at the point of care.
• Megapixel performance – a 1280 × 800 CMOS sensor reads all common 1D and 2D barcodes, including QR Code, Data Matrix, PDF417, Aztec and MaxiCode, and handles very small and high-density codes with ease (25% minimum print contrast).
• Reads every barcode at the point of care – patient wristbands, medication packaging, specimen tubes and paper documents, as well as QR codes and other barcodes on phone and tablet screens.
• Fast, intuitive aiming – a green LED aimer, red/white LED illumination and 60 frames per second for point-and-shoot scanning; omnidirectional reading (360°) with a depth of field of up to 510 mm (EAN-13 13 mil).
• Handheld or hands-free – trigger, auto-sense and continuous scan modes; placed in the optional foldable smart stand, the scanner switches to hands-free scanning automatically.
• Dual interface – USB for PCs, laptops and computers on wheels; RS-232 for serial systems (with the CBL037R cable and a 5 V power supply). Configure it with Newland EasySet.
• Built to last – IP52 protection against dust and splashes, 1.5 m drop resistance, an operating range of −20 °C to 60 °C and an ergonomic grip that reduces fatigue during long shifts.
• 5-year warranty – Newland's standard 5-year warranty for a long, predictable service life.

Ideal Applications

• Positive patient identification and wristband scanning at admission and at the bedside
• Medication administration and verification at the bedside, in the pharmacy and on discharge
• Specimen tracking in laboratories and blood product administration
• Access to electronic health records (EHR/EMR) at workstations and on computers on wheels
• Pharmacy, inventory and dietary management in hospitals, clinics and care homes
• Pharmacy and retail checkouts where extra hygiene matters

All HR32 Marlin HC Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Not sure which version you need? Choose the NLS-HR3280-S0-HC for a simple USB setup, or the NLS-HR3280-SF-HC if you also want hands-free scanning with the white foldable smart stand. Compare other models in our Handheld Barcode Scanners collection or contact our team for volume pricing.
