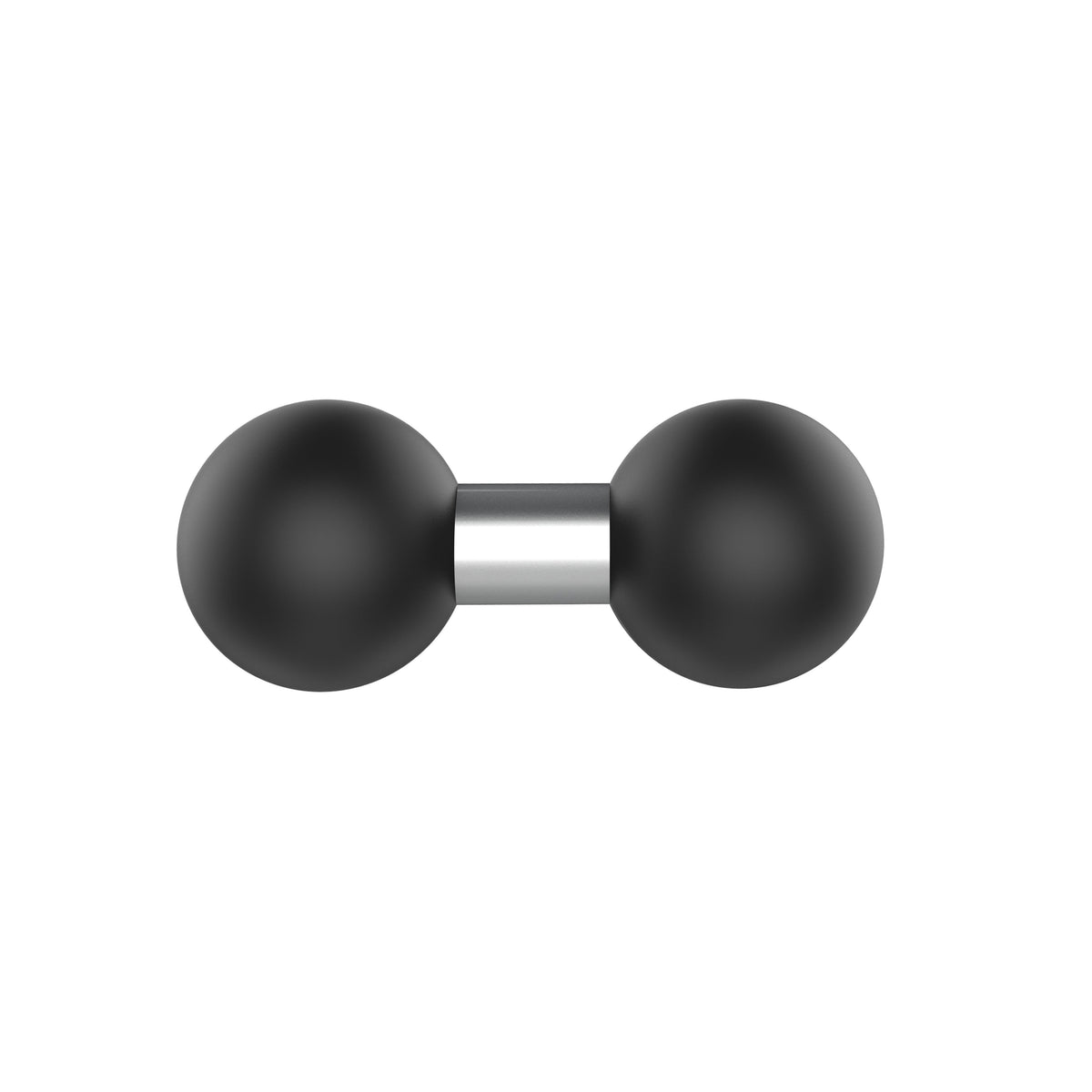

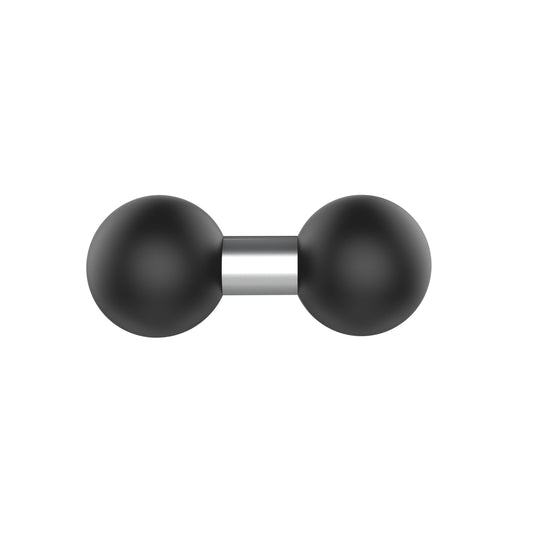

RAM Mounts Double Ball Adapter, C-Size, 95 mm (RAM-230U) joins two RAM C-size double socket arms end to end. It consists of two C-size (1.5") rubber balls on a powder-coated marine-grade aluminium post – 95 mm (3.74") overall and 60.5 mm (2.38") from socket to socket – and gives an existing mount extra extension or an additional pivot point when a single arm is not enough.
📦 What's in the box – RAM-230U
- Double ball adapter – 2 × C-size (1.5") balls, 95 mm (3.74") overall
💡 You might also consider a C-size double socket arm or a long C-size arm – two arms joined by this adapter give extra reach and articulation.
Key Features

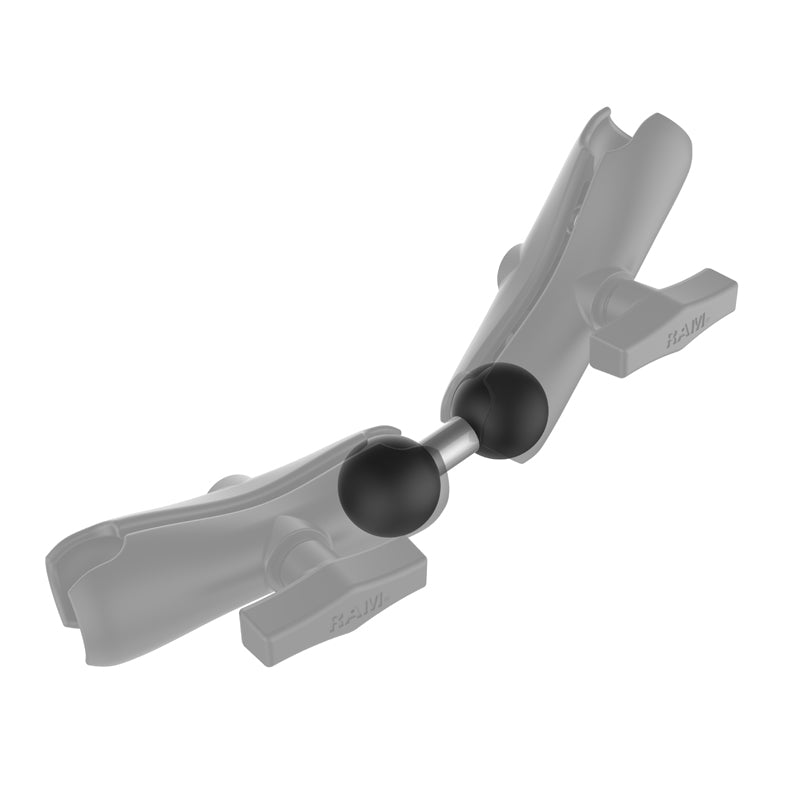

- Two C-size balls – connect two RAM C-size double socket arms for extra extension or articulation
- Length – 95 mm (3.74") overall, 60.5 mm (2.38") socket to socket
- Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
- Material – powder-coated marine-grade aluminium
- Lifetime warranty – backed by RAM Mounts
Compatibility
- All RAM C-size (1.5") double socket arms
Technical Specifications
| Part Number | RAM-230U |
|---|---|
| Product Type | Double ball adapter |
| Connection | 2 × C-size (1.5") ball |
| Load Capacity | 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use |
| Material | Powder-coated marine-grade aluminium |
| Dimensions | Overall length 95 mm (3.74"); socket to socket 60.5 mm (2.38") |
| Weight | 0.11 kg (0.24 lb) |
| Warranty | Lifetime warranty (RAM Mounts) |
| In the Box | Double ball adapter |
More RAM ball bases, socket arms and mounting kits are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
Available Versions
| Part Number | Mount type | Price | ||
|---|---|---|---|---|
 |
RAM-217-1U | Double ball adapter, round base | 70,55 €+VATIn Stock | |
 |
RAM-230UViewing | Double ball adapter | 24,89 €+VATOut of Stock |
