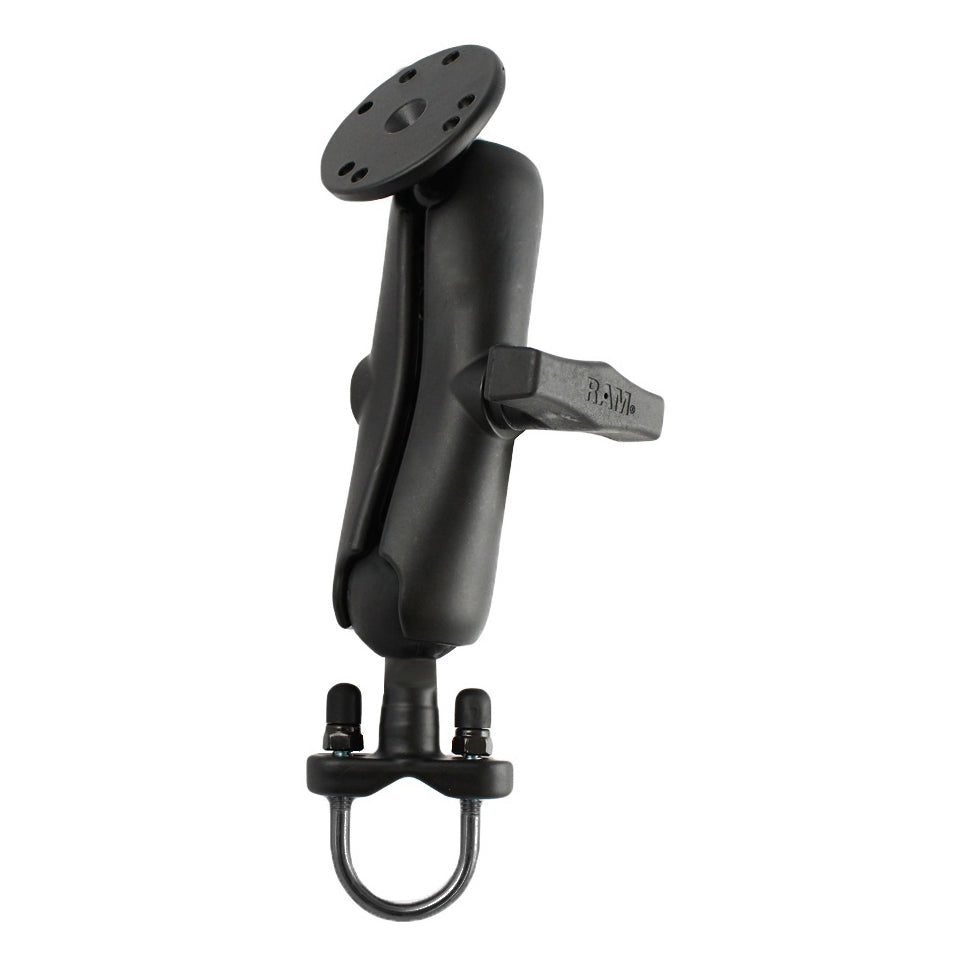

RAM Mounts Double Ball U-Bolt Mount with Round Plate for Rails 13–32 mm, C-Size (RAM-101U-IP1)

RAM Mounts Double Ball U-Bolt Mount with Round Plate (RAM-101U-IP1) attaches a tablet, handheld or other device holder to a rail, handlebar or pipe with a diameter of 13–32 mm. The zinc-coated U-bolt base comes with two U-bolt sizes and a composite rail adapter for thinner tubes, and the medium 145 mm C-size (1.5") arm links it to a 63.5 mm round plate with the universal AMPS pattern. Typical uses include boat rails, carts and machine frames.

Key Features

• U-bolt rail mount – zinc-coated U-bolt base for rails Ø 13–32 mm; the composite rail adapter fits thinner tubes and black caps cover the bolt ends
• Patented ball-and-socket system – C-size (1.5") rubber balls adjust at both ends of the arm and damp shock and vibration
• Medium double socket arm – 145 mm overall, 118 mm socket to socket, with an easy-to-adjust knob
• Universal AMPS pattern – the Ø 63.5 mm round plate has the 4-hole AMPS (30 × 38 mm) and 3-hole 120° (Ø 46 mm) patterns used by most RAM and third-party cradles
• Load capacity – 1.8 kg (4 lb) for standard use, 1.4 kg (3 lb) for heavy-duty use
• Durable construction – marine-grade aluminium

Compatibility

• Rails and pipes Ø 13–32 mm
• Cradles and devices with the AMPS 4-hole pattern (30 × 38 mm)
• Holders with the 3-hole 120° pattern (Ø 46 mm)
• All RAM C-size (1.5") ball bases, adapters and holders

Technical Specifications
