RAM Mounts Long Double Socket Arm with Round Ball Plate, C-Size, 232 mm (RAM-103U-D)

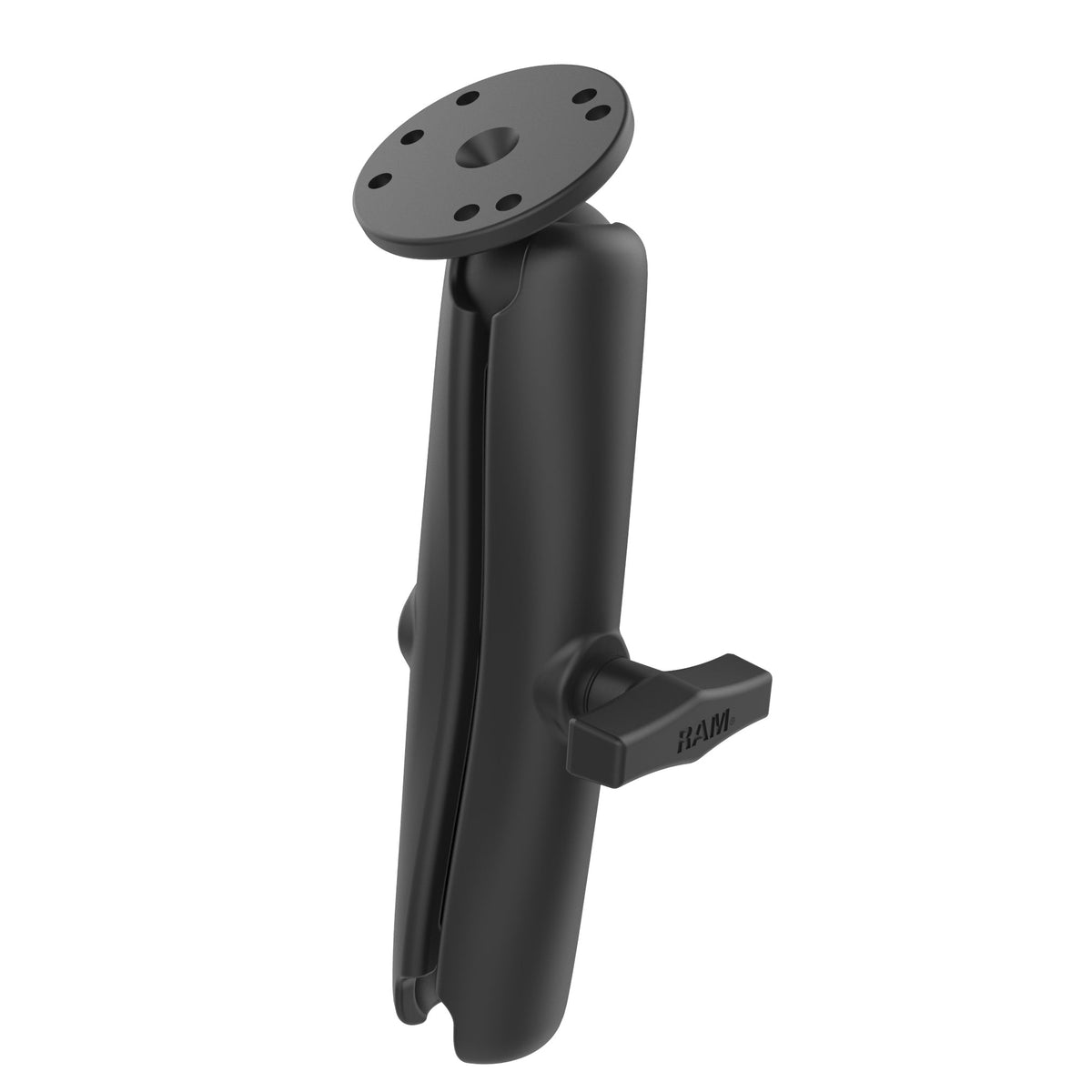

RAM Mounts Long Double Socket Arm with Round Ball Plate, C-Size, 232 mm (RAM-103U-D) combines two of RAM's core C-size (1.5") components: the long double socket arm RAM-201U-D (231.8 mm / 9.125" overall, 203.2 mm / 8" socket to socket) and the round ball plate RAM-202U (Ø 63.5 mm / 2.5") with the universal 4-hole AMPS pattern and a 3-hole 120° pattern. The plate serves as a drill-down base or as an adapter on an AMPS cradle, and the free socket end connects to any C-size ball base or holder. Both parts are made of powder-coated marine-grade aluminium.

Key Features

• Long arm – 231.8 mm (9.125") overall, 203.2 mm (8") socket to socket
• AMPS round plate – Ø 63.5 mm (2.5"), 4-hole AMPS (30 × 38 mm) and 3-hole 120° (Ø 46 mm)
• Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
• Material – powder-coated marine-grade aluminium
• Lifetime warranty – backed by RAM Mounts

Compatibility

• All RAM C-size (1.5") ball bases, ball adapters and device holders
• Device holders and cradles with the 4-hole AMPS pattern (30 × 38 mm)
• Accessories with the 3-hole 120° pattern (Ø 46 mm)

Technical Specifications

More RAM ball bases, socket arms and mounting kits are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
