RAM Mounts Powered Dock with Pogo Pins for Zebra HC20 & HC50, Grey (RAM-HOL-ZE39-GRY)
Regular price
67,66 € +VAT

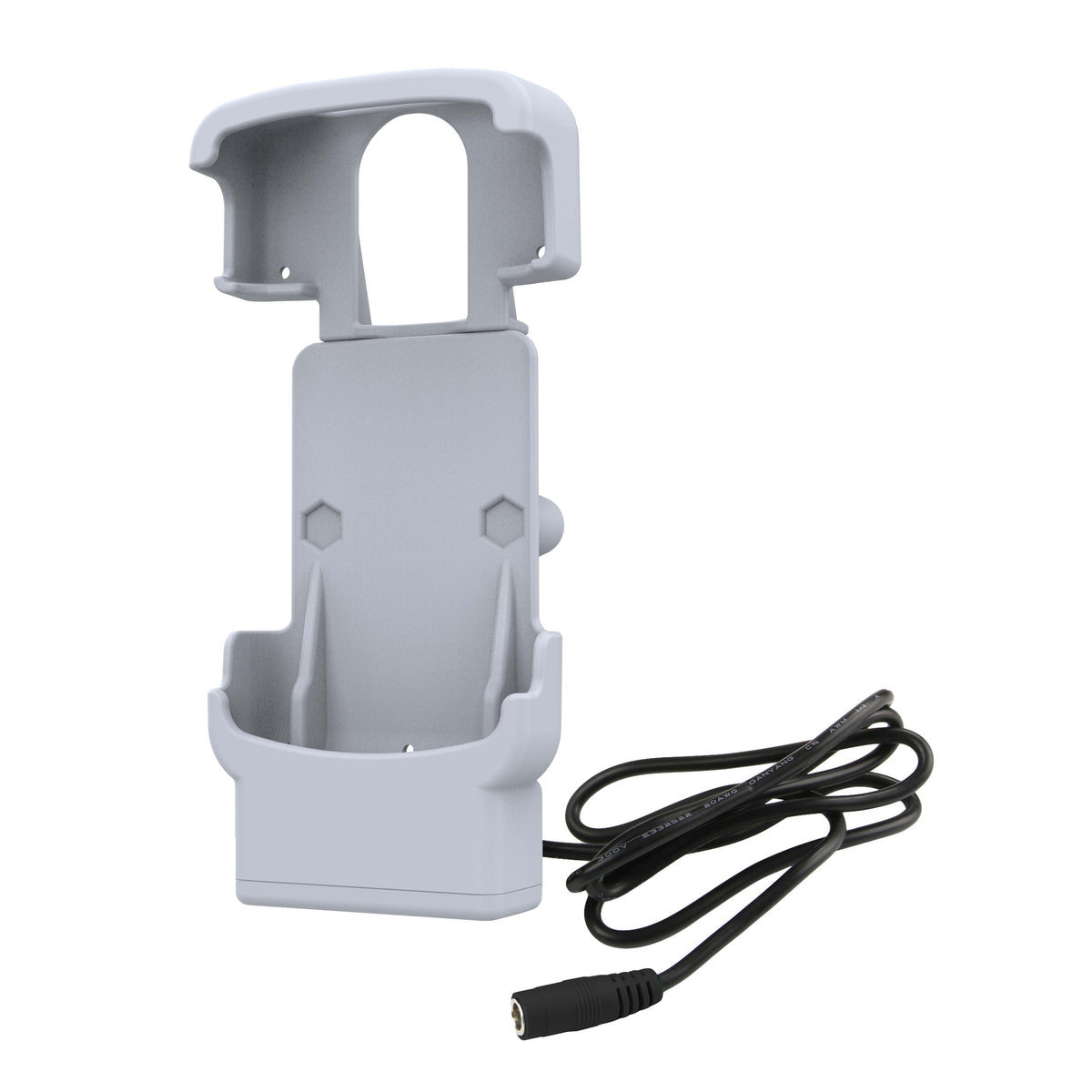

RAM Mounts Powered Dock with Pogo Pins (RAM-HOL-ZE39-GRY) is a healthcare-grade dock for the Zebra HC20 and HC50, made for bedside, cart and wall installations in hospitals and care facilities. The spring-loaded form-fit cradle charges the device through two pogo pins that meet the pogo pads on the handheld; power comes in via a 5.5 mm DC connector (5 V, 1.6 A, 9 W). All buttons stay accessible, a top cutout allows barcode scanning while docked, and the dock can even be mounted upside down for ergonomic scanning. Smooth surfaces with few crevices make cleaning and disinfection easy, and the back cavity accommodates OEM ergonomic accessories.
📦 What's in the box – RAM-HOL-ZE39-GRY
- Powered Dock with Pogo Pins – for Zebra HC20 & HC50, 5.5 mm DC input, pogo pins, grey
- Mounting hardware – machine screws (2× #8-32 x 5/8", 2× #8-32 x 3/4") and nyloc nuts (4× #8-32)
- Cable clamp kit – for tidy cable routing
💡 To get started, you might also consider a B-size diamond ball base and a B-size double socket arm, a small Tough-Claw clamp base for bed rails, and a suitable 5 V power supply with a 5.5 mm DC plug.
Key Features
- Healthcare-grade Form-Fit dock – for the Zebra HC20 and HC50; all buttons accessible; smooth, easy-to-disinfect surfaces

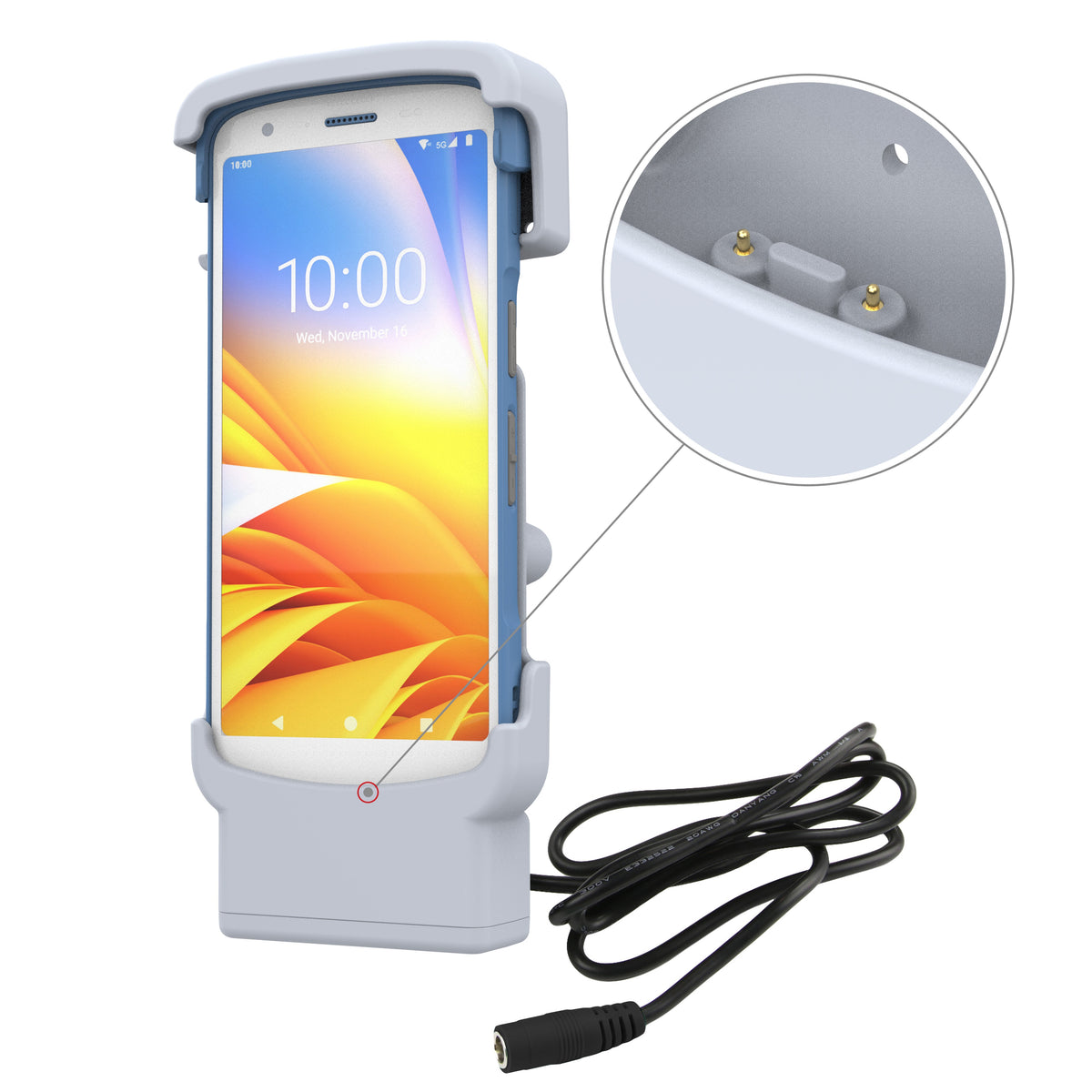

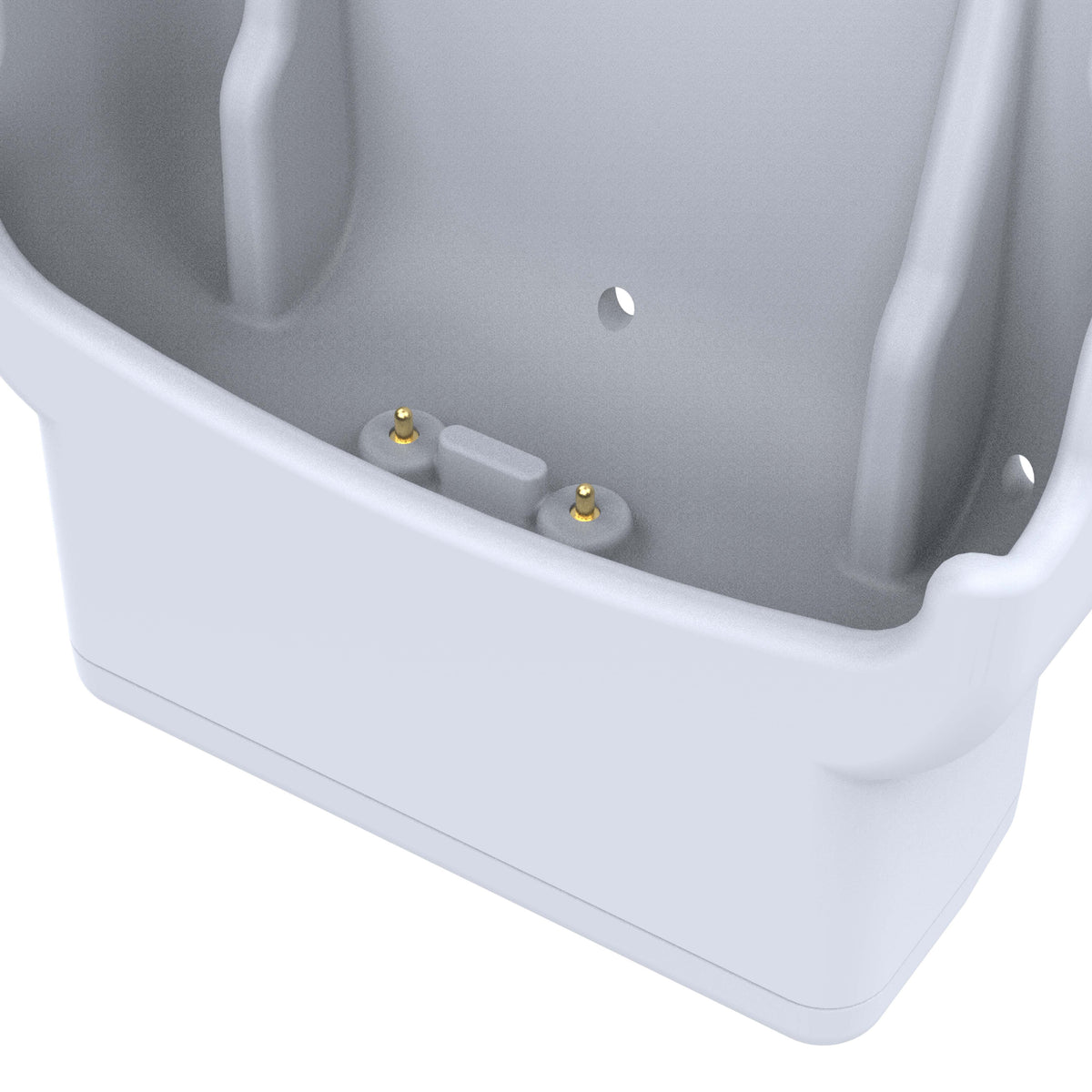

- Pogo-pin charging – two pogo pins to the device pads; 5.5 mm DC input, 5 V @ 1.6 A, 9 W

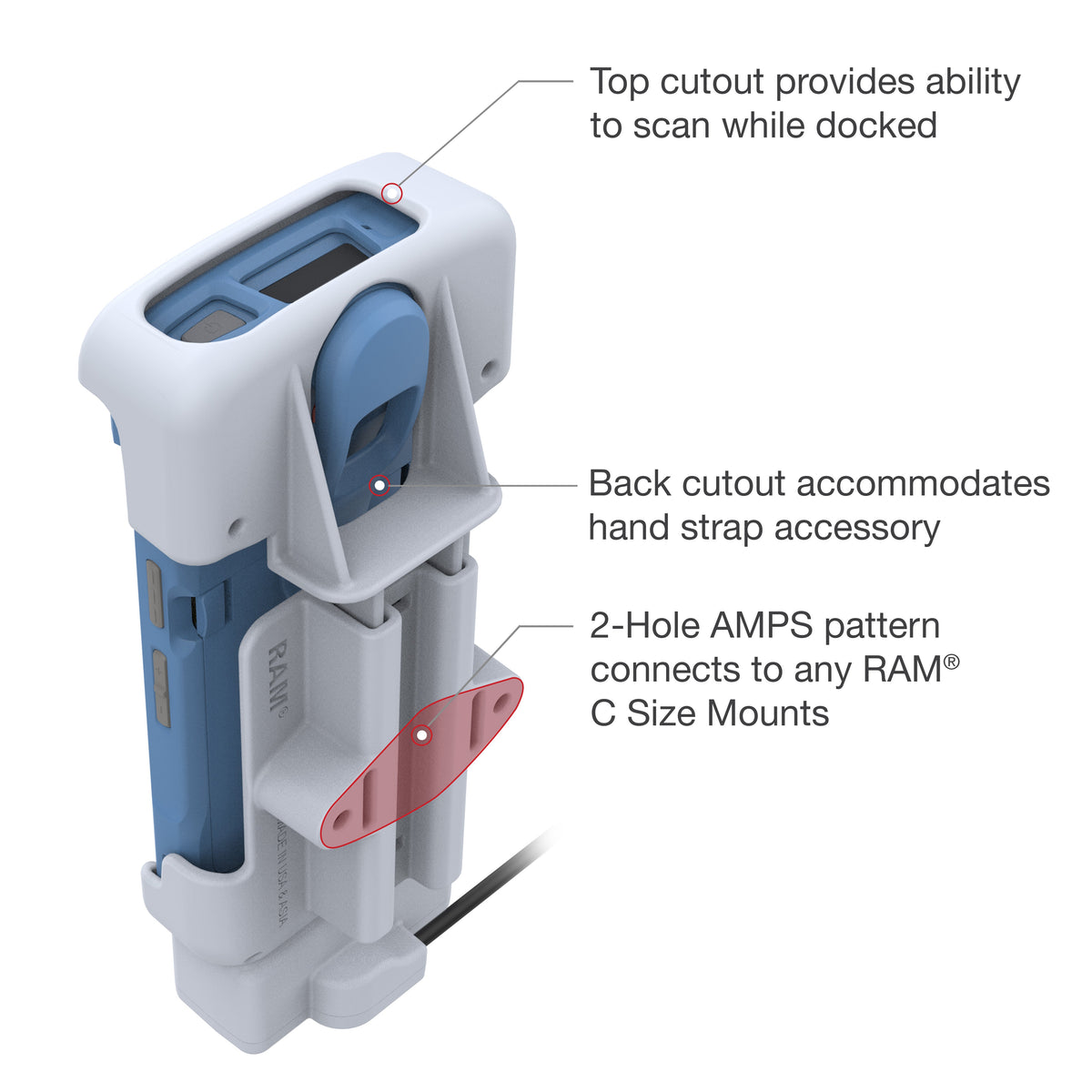

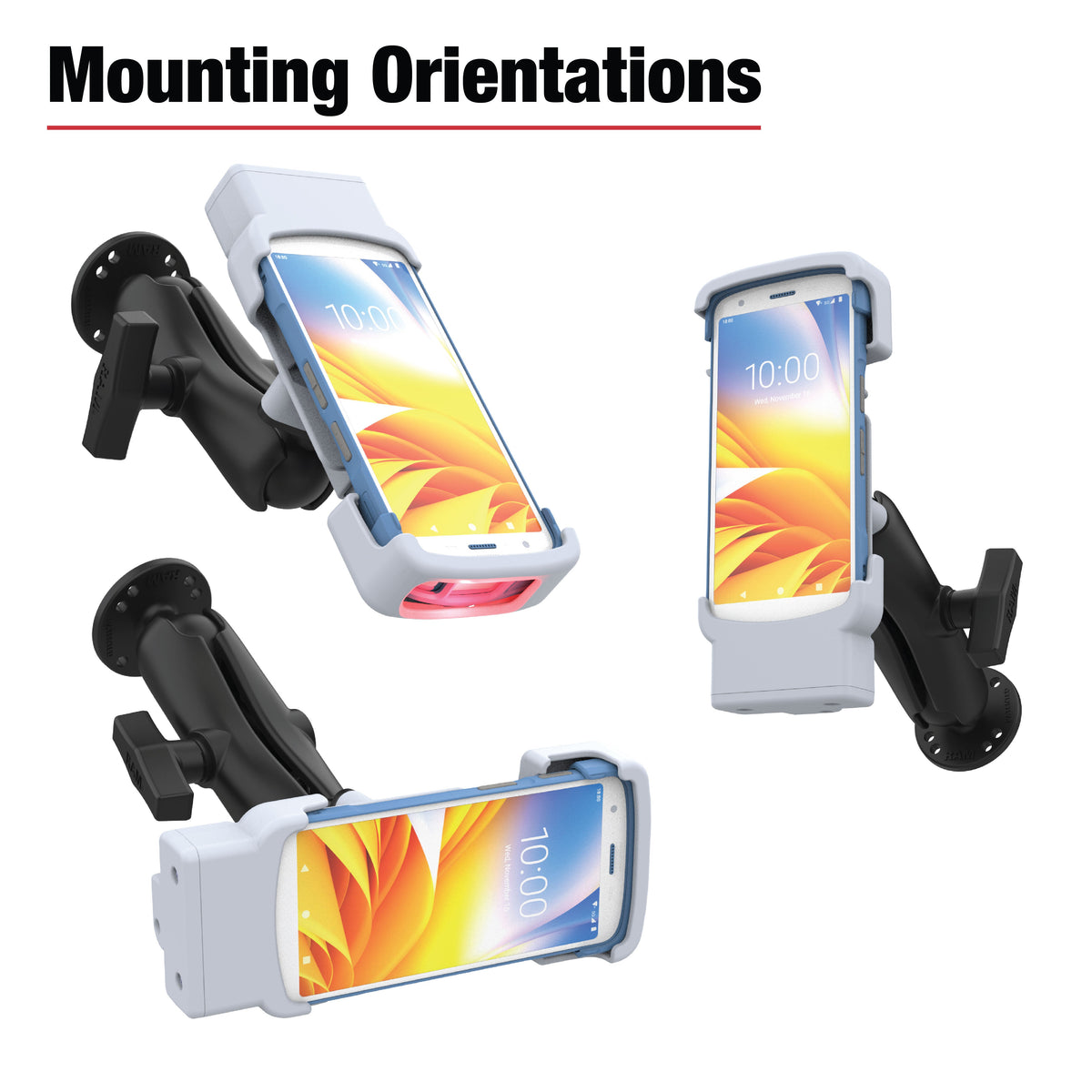

- Scan while docked – top cutout for barcode scanning; can be mounted upside down for ergonomic scanning
- Room for accessories – back cavity accommodates OEM ergonomic accessories
- Mounting & build – 2-hole AMPS (48.6 mm) for RAM diamond ball bases – bedside, cart or wall; high-strength composite, 3-year RAM warranty
Compatibility
- Zebra HC20
- Zebra HC50
- RAM diamond ball bases (2-hole AMPS, 48.6 mm)
Technical Specifications
| Part Number | RAM-HOL-ZE39-GRY |
|---|---|
| Product Type | Healthcare powered dock (pogo pins) |
| Compatible Devices | Zebra HC20, Zebra HC50 |
| Connection | RAM diamond ball bases (2-hole AMPS, 48.6 mm) |
| Locking | Non-locking |
| Power / Charging | 5.5 mm DC input, 5 V @ 1.6 A; power output 9 W; charging via 2 pogo pins; power supply sold separately |
| Material | High-strength composite |
| Colour | Grey |
| Weight | 0.33 kg (0.72 lb) |
| Warranty | 3 years (RAM Mounts) |
| In the Box | Powered Dock with Pogo Pins, mounting hardware, cable clamp kit |
You will find the device and more matching accessories in our Zebra HC Series collection. Rolling out handhelds across wards or care facilities? Contact us for project support and volume pricing.
Available Versions
| Part Number | Power | Price | ||
|---|---|---|---|---|
 |
RAM-HOL-ZE39-C-GRY | Powered (USB-C) | 70,67 €+VATOut of Stock | View |
 |
RAM-HOL-ZE39-GRYViewing | Powered (5.5 mm DC) | 67,66 €+VATOut of Stock |
