RAM Mounts Tough-Mag 88 mm Magnetic Ball Base, C-Size (RAM-238-MAG88U)
Regular price
67,78 € +VAT

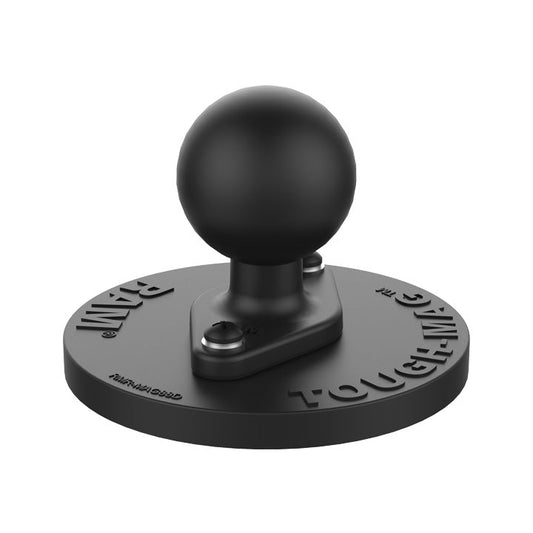

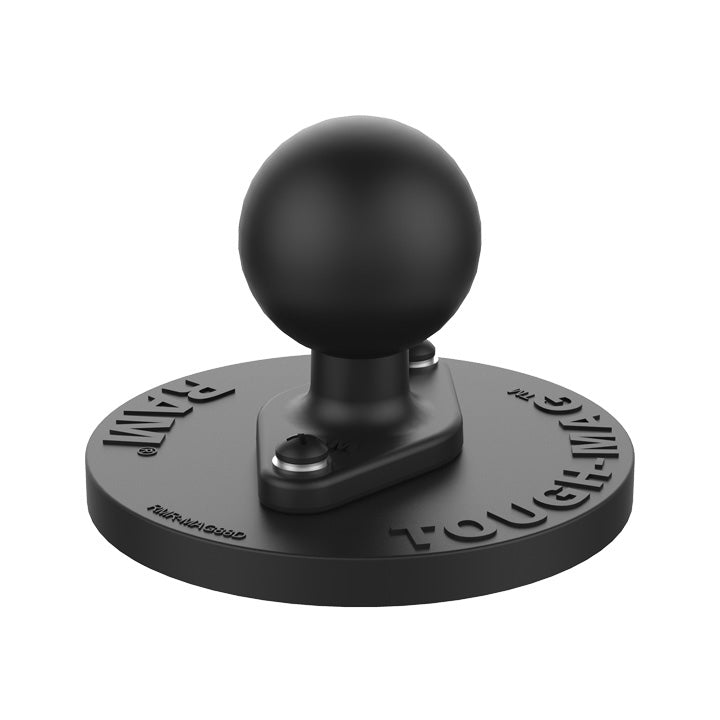

RAM Mounts Tough-Mag 88 mm Magnetic Ball Base, C-Size (RAM-238-MAG88U) lets you mount a RAM C-size (1.5") ball on steel surfaces without drilling – for example on forklifts and other material-handling equipment. It combines a C-size diamond ball base with a flat Tough-Mag magnetic base of 88 mm (3.46") diameter that holds with ten N52 magnets, while its rubber exterior protects the mounting surface from scratches. Two M4 threaded inserts in the 2-hole AMPS pattern (48.6 mm) carry the ball base and also accept other RAM B- or C-size 2-hole AMPS diamond ball bases.
📦 What's in the box – RAM-238-MAG88U
- Tough-Mag 88 mm magnetic adapter – 2-hole AMPS pattern with M4 threaded inserts (RAM-MAG88DU)
- Diamond ball base – C-size (1.5"), 2-hole AMPS (RAM-238U)
💡 You might also consider a C-size double socket arm and a C-size VESA 75 ball plate to attach a terminal or display with a VESA 75 pattern.
Key Features
- Magnetic mounting – Ø 88 mm (3.46") Tough-Mag base with ten N52 magnets – no drilling on steel surfaces
- Surface-friendly – rubber exterior helps protect the mounting surface from scratches
- Interchangeable ball bases – M4 inserts in the 2-hole AMPS pattern accept RAM B- or C-size diamond ball bases
- C-size (1.5") rubber ball – connects to any RAM C-size double socket arm, with near-infinite adjustment
- Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
- Material – powder-coated marine-grade aluminium, rubber, 10 × N52 magnets
- Lifetime warranty – backed by RAM Mounts
Compatibility
- All RAM C-size (1.5") double socket arms
- Flat steel surfaces (magnetic mounting)
- RAM B- and C-size diamond ball bases with 2-hole AMPS pattern
Technical Specifications
| Part Number | RAM-238-MAG88U |
|---|---|
| Product Type | Magnetic ball base |
| Connection | C-size (1.5") ball; 2-hole AMPS 48.6 mm (1.912"), M4 inserts; magnetic base Ø 88 mm |
| Load Capacity | 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use |
| Material | Powder-coated marine-grade aluminium, rubber, 10 × N52 magnets |
| Dimensions | Plate Ø 88 mm (3.46") |
| Weight | 0.32 kg (0.71 lb) |
| Warranty | Lifetime warranty (RAM Mounts) |
| In the Box | Tough-Mag 88 mm magnetic adapter, diamond ball base |
Looking for a terminal to mount? Browse our Vehicle Mount Terminals range. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.
