ML241 Series: Loading the ribbon & media

TSC ML241P Industrial Label Printer (ML241P-A001-0202)

Name: TSC ML241P Industrial Label Printer (ML241P-A001-0202)
Brand: TSC
SKU: tscml241p
Availability: InStock

700,25 € +VAT

Product variants

Resolution (dpi)

203300

Wireless

BluetoothNone

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

Available: In Stock
Vendor: TSC
Type: Industrial Printers
Barcode: ML241P-A001-0202
Collections: Industrial Label Printers , Label Printers , TSC ML241P

📄 Download Product Brochure (PDF)

TSC

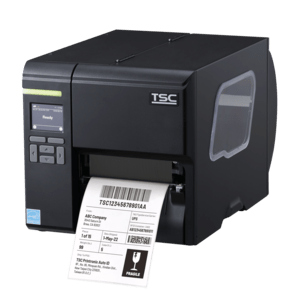

TSC ML241P Industrial Label Printer (ML241P-A001-0202)

700,25 € +VAT

Description

Description

The TSC ML241P from the ML241P Series is a compact, easy-to-use industrial label printer – only 245 mm high, it fits height-restricted workplaces and rack mounting, yet takes 203 mm (8-inch) label rolls for high-volume printing. It prints in thermal transfer and direct thermal at 203 dpi and up to 204 mm/s, uses 450 m ribbons and connects via USB, RS-232, Ethernet and USB host as standard. Toolless printhead and platen roller removal and simple pressure and ribbon-tension adjustment keep maintenance quick. This version, ML241P-A001-0202, is Wi-Fi ready – a slot-in Wi-Fi + Bluetooth combo module can be added at any time.

📦 What's in the box – ML241P-A001-0202

✅ TSC ML241P label printer – 203 dpi, built-in power supply 100–240 V
✅ Power cords – EU (Schuko) and UK (type G) plugs – use the one for your country
✅ USB cable – USB A to B, for connecting to your PC
✅ Setup guide – quick start guide; drivers, TSC Console and labeling software are a free download from TSC
❌ Labels – NOT included
❌ Thermal transfer ribbon – NOT included
❌ Ethernet (LAN) cable – NOT included

✅ Ready to print out of the box – the power supply is built in, and the power cord and USB cable are included; you only need labels and a thermal transfer ribbon (direct thermal labels print without a ribbon). For a network connection, use the built-in Ethernet port with a standard RJ45 patch cable (not included).

💡 Useful extras: matching labels (TSC 38-T102102-10LF or TSC 38-S078130-1031); ribbons up to 450 m (TSC P159049-001 or TSC P159079-001); upgrade options: peel-off kit (TSC PEL-ML240-0001), cutter (TSC CUT-ML240-0001), Wi-Fi + Bluetooth module (TSC WF-COM-2002), KP-200 Plus keyboard display (TSC KP-200 Plus).

Key Features

Small footprint, big capacity – only 245 mm high for racks and height-restricted workplaces, with a die-cast mechanism, a metal cover and a wide-open 50 mm media handling space for quick label and ribbon changes.
2.3-inch colour LCD – clear status and menu display with six-button navigation (Menu, Pause/Feed and arrow keys).
Thermal transfer and direct thermal – up to 204 mm/s at 203 dpi with a maximum print width of 108 mm.
Large media capacity – label rolls up to 203 mm in diameter on 25–76 mm cores, media 20–118 mm wide; continuous, die-cut, black-mark, notched and fanfold media.
450 m ribbons – long ribbons on a 1-inch core mean fewer changes; ribbons coated inside or outside both work.
Connected as standard – USB 2.0, RS-232, 10/100 Ethernet and USB host; optional slot-in Wi-Fi 802.11ac + Bluetooth 5.0 module or internal Bluetooth.
TSC Sense Care and remote management – self-diagnostic printhead care, near real-time status and warnings, plus SOTI Connect and TSC Console for remote fleet management.
Auto-switching emulation – TSPL-EZD with EPL, ZPL, ZPL II and DPL simplifies fleet migration; TSC Standalone Creator and TSCPRTGo add LCD templates and mobile printing.
Sustainable design – 100% recyclable packaging and printer casing, with over 90% recyclable printer components.
Upgrade options – passive peel-off kit, guillotine cutter, universal cutter tray, Wi-Fi + Bluetooth module and KP-200 Plus keyboard display.

Ideal Applications

Manufacturing – work-in-process, product marking, compliance and industrial-duty labels
Transport and logistics – packing, order fulfilment, shipping and receiving, pallet labels
Warehousing – inventory, location and asset labels
Healthcare and pharma – specimen, pharmaceutical and asset tracking labels
Retail and food – product, price, weighing scale and food packaging labels

All ML241P Versions

The highlighted row is the version you are currently viewing.

Part Number	Model	Resolution	Wireless
ML241P-A001-0402	TSC ML241P	203 dpi	Bluetooth 5.0	View product
ML241P-A001-0202 (this version)	TSC ML241P	203 dpi	Wi-Fi ready	Viewing
ML341P-A001-0202	TSC ML341P	300 dpi	Wi-Fi ready	View product

Technical Specifications

Part Number	ML241P-A001-0202
Model	TSC ML241P (ML241P Series)
Printer Type	4-inch compact industrial label printer – ML241P Series
Construction	Die-cast print mechanism; metal cover with large clear media window; low 245 mm height (rack-mountable)
Print Method	Thermal transfer and direct thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 204 mm/s (8 ips)
Max Print Width	108 mm (4.25")
Max Print Length	25,400 mm (1,000")
Min. Label Length	5 mm
Media Width	20–118 mm (0.8"–4.7")
Media Thickness	0.06–0.19 mm (2.36–7.48 mil)
Roll Diameter	203.2 mm (8") OD
Core Size	25.4 mm (1") to 76.2 mm (3") – data sheet: 8" OD rolls on 1" or 3" core
Media Types	Continuous, die-cut, black mark, fanfold, notched (outside wound)
Sensors	Gap transmissive (position adjustable), black mark reflective (position adjustable), ribbon end, head open
Ribbon	Max. 450 m, 1" (25.4 mm) core, ink coated outside or inside; width 40–110 mm
Media Options	Tear-off (standard); options: passive peel-off kit (factory), guillotine cutter (dealer), universal cutter tray
Interfaces	USB 2.0, RS-232, internal Ethernet 10/100 Mbps, USB host (for scanner or PC keyboard)
Wireless	None (Wi-Fi ready); options: slot-in Wi-Fi 802.11a/b/g/n/ac + Bluetooth 5.0 combo module or internal Bluetooth 5.0 module (dealer)
Processor	32-bit RISC CPU
Memory	128 MB Flash, 128 MB SDRAM
Real-Time Clock	Standard
Printer Languages	TSPL-EZD (EPL, ZPL, ZPL II, DPL) with auto-switching emulation
Fonts / Character Sets	8 alphanumeric bitmap fonts; Monotype Imaging true type font engine with CG Triumvirate Bold Condensed scalable font; 0/90/180/270° rotation
Barcodes	1D: Code 39, Code 93, Code 128 (UCC, subsets A/B/C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN/UPC 2/5-digit add-on, MSI, Plessey, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post; 2D: PDF417, Micro PDF417, MaxiCode, DataMatrix, QR Code, Aztec, TLC 39, RSS
Display	2.3" colour LCD; 6 buttons (Menu, Pause/Feed, Up, Down, Left, Right); 1 LED (green/red); power switch
Options	Passive peel-off kit, guillotine cutter, universal cutter tray, KP-200 Plus keyboard display, Wi-Fi + Bluetooth module or internal Bluetooth
Drivers & Software	Windows drivers, TSC Console, SOTI Connect, Internal Embedded Webpage, TSC Standalone Creator, TSCPRTGo; TSC Sense Care
Power Supply	Internal universal switching power supply: 100–240 V AC, 1.5 A, 50–60 Hz; output 24 V DC, 2.5 A, 60 W
Dimensions (W × D × H)	248 × 416 × 245 mm
Weight	7.7 kg
Operating Temperature	0–40 °C, 25–85% RH non-condensing
Storage Temperature	−40–60 °C, 10–90% RH non-condensing
Certifications	CB, FCC Class A, CE Class A, UKCA, RCM Class A, cTUVus, TÜV, IC Class A, NOM, VCCI, CCC, BIS, KC, BSMI, EAC, ENERGY STAR; RoHS, WEEE
Warranty	Printer: 2 years; printhead 25 km or 12 months, platen 50 km or 12 months (whichever comes first)
In the Box	TSC ML241P printer (203 dpi, built-in power supply), power cords EU + UK, USB cable, quick start guide – labels, ribbon and Ethernet cable NOT included

Which ML241P should you choose? 203 dpi is the fastest choice for barcodes and shipping labels; 300 dpi gives crisper small text, logos and fine 2D codes. Need mobile printing? Choose the Bluetooth version (-0402); the standard version is Wi-Fi ready. Compare other models in our Industrial Label Printers collection or contact our team for volume pricing.
