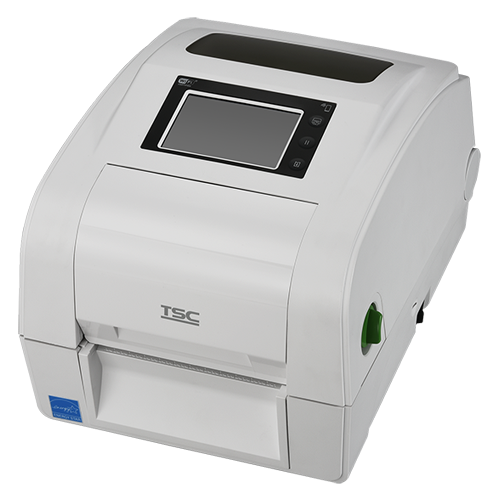

The TSC TH240TRCHC (TH240HC-A002-0002) is a 4-inch healthcare desktop label printer for thermal-transfer and direct-thermal printing at 203 dpi and up to 203 mm/s (8 ips), with a max. print width of 108 mm. Its white, antibacterial and disinfectant-ready housing with sealed buttons and an IEC 60601-1 medical-grade power supply make it a natural fit for hospitals, laboratories and pharmacies. It takes 127 mm label rolls and clean drop-in TSC ribbon cartridges (100 m, 110 mm) – no ribbon threading. A 3.5" colour touch display guides the user, and the printer connects via USB 2.0, RS-232, 10/100 Ethernet and a USB host port. Supplied with power supply, EU power cord and USB cable – ready to print.
📦 What's in the box – TH240HC-A002-0002
- ✅ TSC TH240TRCHC label printer – 203 dpi, 4" (108 mm), USB 2.0 + RS-232 + Ethernet + USB host
- ✅ Power supply – IEC 60601-1 medical-grade power supply, 100–240 V AC → 24 V DC, 90 W
- ✅ Power cord – EU plug (Schuko)
- ✅ USB cable – USB 2.0 A-to-B – connect and print straight away
- ✅ Drivers & software – Windows driver, TSC Console and labeling software – free download from TSC
- ✅ Setup guide
- ❌ TSC ribbon cartridge – NOT included – the TRC model uses TSC ribbon cartridges only (100 m, 110 mm) – order separately
- ❌ Labels – NOT included – order labels to suit your application (see compatible labels below)
- ❌ Ethernet (LAN) cable – NOT included – use any standard RJ45 patch cable
✅ Ready to print: power supply, power cord and USB cable are in the box – you only need labels (and a ribbon for thermal-transfer printing).
💡 Useful extras: the TSC OP-COM-0002 external roll mount for large rolls on 3" cores; the TSC CUT-TH240-0001 guillotine cutter (full/partial cut) or the TSC PEL-TH240-0001 peel-off module; the TSC CUT-TH240-0002 care label cutter for textile care labels.
Key Features
- Thermal transfer and direct thermal at 203 dpi – up to 203 mm/s (8 ips), max. print width 108 mm
- Healthcare design: white antibacterial, disinfectant-ready enclosure with an easy-to-clean surface and sealed buttons
- IEC 60601-1 certified medical-grade power supply for safe use in clinical environments
- TSC ribbon cartridge (100 m, 110 mm) loads in seconds without touching the ribbon – ideal for wards and nursing stations
- 3.5" colour touch display (480 × 320) with feed, pause and reprint buttons
- 127 mm (5") label rolls on 25.4–38.1 mm cores, media 15–120 mm wide (down to 10 mm with the optional adaptor); fanfold, black-mark and notched media
- TSPL-EZD firmware with automatic EPL, ZPL/ZPL II and DPL language switching – existing label templates print unchanged
- USB 2.0, RS-232, 10/100 Ethernet and USB host as standard; Wi-Fi + Bluetooth 5.0 or Bluetooth 5.0 modules can be added later
- 128 MB Flash, 128 MB SDRAM, microSD slot (up to 512 GB) and real-time clock
- Remote management via embedded web page, TSC Console and SOTI Connect; HTTPS, SNMPv3 and 802.1X security
- Upgradeable later with peel-off module or guillotine cutter; 3-year TSC warranty in EMEA
Ideal Applications
- Laboratories – specimen and sample tube labels
- Pharmacies – medication and prescription labels
- Hospitals – patient tracking, admission and chart labels
- Clinics, care homes and veterinary practices – sample, medication and file labels
- Blood banks and sterile services – traceability labels
All TH Series for Healthcare Versions
The highlighted row is the version you are currently viewing.
| Part Number | Model | Print Width | Resolution | Ribbon | Wireless | |
|---|---|---|---|---|---|---|
| TH220HC-A001-0002 | TH220THC | 2" (54 mm) | 203 dpi | Standard roll (90 m) | — | View product |
| TH320HC-A001-0002 | TH320THC | 2" (56.9 mm) | 300 dpi | Standard roll (90 m) | — | View product |
| TH240HC-A001-0002 | TH240THC | 4" (108 mm) | 203 dpi | Standard roll (300 m) | — | View product |
| TH340HC-A001-0002 | TH340THC | 4" (105.7 mm) | 300 dpi | Standard roll (300 m) | — | View product |
| TH240HC-A002-0002 (this version) | TH240TRCHC | 4" (108 mm) | 203 dpi | Ribbon cartridge (100 m) | — | Viewing |
| TH240HC-A002-0102 | TH240TRCHC | 4" (108 mm) | 203 dpi | Ribbon cartridge (100 m) | Wi-Fi + Bluetooth | View product |
| TH240HC-A002-0202 | TH240TRCHC | 4" (108 mm) | 203 dpi | Ribbon cartridge (100 m) | Bluetooth (MFi) | View product |
Technical Specifications
| Part Number | TH240HC-A002-0002 |
|---|---|
| Model | TSC TH240TRCHC (TH Series for Healthcare, 4-inch) |
| Printer Type | 4-inch desktop thermal transfer label printer for healthcare |
| Print Method | Thermal transfer (TSC ribbon cartridge) and direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 203 mm/s (8 ips) |
| Max Print Width | 108 mm (4.25") |
| Max Print Length | 25,400 mm (1,000") |
| Media Width | 15–120 mm (0.59"–4.72"); 10 mm with the optional narrow media adaptor |
| Media Thickness | 0.06–0.19 mm (2.36–7.48 mil) |
| Roll Diameter | 127 mm (5") OD |
| Core Size | 25.4–38.1 mm (1"–1.5") |
| Media Types | Continuous, die-cut, black mark, fanfold, notched (outside wound); label length 5 mm – 25,400 mm |
| Sensors | Transmissive gap sensor, reflective black-mark sensor (position adjustable), ribbon-end sensor, head-open sensor |
| Ribbon | TSC ribbon cartridge only: 100 m, 110 mm wide (cartridge with identification chip) |
| Interfaces | USB 2.0, RS-232 serial, internal Ethernet 10/100 Mbps, USB host; microSD card slot |
| Wireless | None as standard – optional Wi-Fi 802.11a/b/g/n/ac + Bluetooth 5.0 combo module or Bluetooth 5.0 module |
| Processor | 32-bit RISC CPU |
| Memory | 128 MB Flash, 128 MB SDRAM; microSD expansion up to 512 GB (FAT32/exFAT) |
| Real-Time Clock | Standard |
| Printer Languages | TSPL-EZD with automatic EPL, ZPL, ZPL II and DPL language switching |
| Fonts / Character Sets | 8 alphanumeric bitmap fonts; Monotype true-type engine with CG Triumvirate Bold Condensed; ARIALUNI.TTF Unicode font (UTF-8); 0/90/180/270° rotation |
| Barcodes | 1D: Code 39, Code 93, Code 128 (UCC, subsets A/B/C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN/UPC add-on, MSI, Plessey, Postnet, China Post, ITF-14, EAN-14, Code 11, Telepen, Planet, Code 49, Deutsche Post Identcode/Leitcode, LOGMARS; 2D: TLC39, Codablock F, PDF417, MicroPDF417, MaxiCode, DataMatrix, QR Code, Aztec, GS1 DataBar |
| Display | 3.5" colour touch display (480 × 320 px); power, feed, pause and reprint buttons |
| Media Options | Tear-off (standard) |
| Options | Peel-off module, guillotine cutter, care label cutter, Wi-Fi + Bluetooth 5.0 combo module, Bluetooth 5.0 module, external label roll mount, KP-200 Plus keyboard, 10 mm narrow media adaptor |
| Management & Security | Internal embedded web page, virtual control panel, TSC Console, SOTI Connect (licence); HTTPS, SNMPv3, 802.1X, TCP/IP port 9100 filter; TPH Care printhead diagnostics |
| Enclosure | Double-walled clamshell; disinfectant-ready, antibacterial plastic with easy-to-clean surface and sealed buttons |
| Power Supply | External IEC 60601-1 certified power supply: 100–240 V AC, 2.0 A, 50–60 Hz input; 24 V DC, 3.75 A, 90 W output |
| Dimensions (W × D × H) | 223 × 286 × 186 mm (W × D × H) |
| Weight | 2.8 kg |
| Color | White |
| Operating Temperature | 0–40 °C, 25–85% RH non-condensing |
| Storage Temperature | −40–60 °C, 10–90% RH non-condensing |
| Certifications | CB, FCC Class B, IC, cTÜVus, CE Class B, UKCA, EAC, CCC, BIS, RCM, KC, ENERGY STAR 3.0; RoHS, REACH, WEEE |
| Warranty | Printer: 3 years (TSC EMEA, purchases from 1 June 2024); printhead 25 km or 12 months, platen 50 km or 12 months (whichever comes first) |
| In the Box | TSC TH240TRCHC printer (203 dpi, 3.5" colour touch LCD, USB 2.0 + RS-232 + Ethernet + USB host), IEC 60601-1 medical-grade external power supply (24 V DC, 90 W), power cord (EU Schuko plug), USB cable, quick start guide – TSC ribbon cartridge and labels NOT included |
Need a different width, resolution, ribbon type or wireless option? All TH Series healthcare versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
