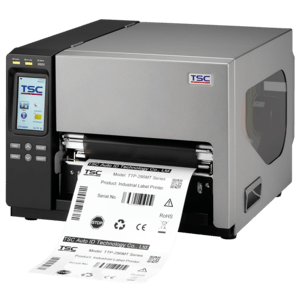

TSC TTP-286MT Industrial Label Printer (99-135A002-0002)

The TSC TTP-286MT belongs to the TTP-286MT Series – TSC's wide-format industrial printer for labels up to 241 mm (9.5 inches) wide with a print width of up to 216 mm. It is made for compliance labelling, pallet and drum labels, large warning labels, custom signage and multiple-up labels (two or three across). A die-cast chassis with sheet-metal structure, a 4.3-inch colour touch LCD and a 600 m ribbon supply keep it productive; it prints at 203 dpi and up to 152 mm/s and connects via USB, RS-232, parallel, Ethernet and USB host as standard. This version, 99-135A002-0002, comes with the standard tear-off bar – a guillotine or heavy-duty cutter is available as an option.

Key Features

• Wide-format precision – die-cast chassis and sheet-metal structure; labels up to 241.3 mm wide and up to 216 mm print width – ideal for large labels or two or three labels across.
• 4.3-inch colour touchscreen – intuitive multi-language menus with touch and six-button operation, plus LED status indicators.
• Thermal transfer and direct thermal – up to 152 mm/s at 203 dpi with a maximum print width of 216 mm.
• Large media capacity – label rolls up to 208 mm in diameter on 76 mm cores, media 101.6–241.3 mm wide; continuous, die-cut, black-mark, notched and fanfold media.
• 600 m ribbons – long ribbons (110–254 mm wide, 1-inch core, ink coated outside) mean fewer changes on wide labels.
• All interfaces on board – USB 2.0, RS-232, Centronics parallel, 10/100 Ethernet and USB host as standard; GPIO and an external Bluetooth module are available as options.
• Memory for stand-alone printing – 512 MB flash, 256 MB SDRAM and an SD card reader for up to 32 GB; basic programming tools and keyboard support for PC-free printing.
• Plug-and-play firmware – the TSPL-EZ printer language with EPL and ZPL emulation for easy integration into existing systems.
• Upgrade options – guillotine or heavy-duty cutter, GPIO interface, Bluetooth module (serial) and KP-200 Plus or KU-007 Plus keyboards for stand-alone printing.

Ideal Applications

• Manufacturing – work-in-process, product marking, compliance and industrial-duty labels
• Transport and logistics – packing, order fulfilment, shipping and receiving, pallet labels
• Warehousing – inventory, location and asset labels
• Healthcare and pharma – specimen, pharmaceutical and asset tracking labels
• Wide labels – A5 shipping labels, pallet and drum labels, GHS and warning labels, custom signage

All TTP-286MT Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

Which TTP-286MT should you choose? 203 dpi is the fastest choice for barcodes and shipping labels; 300 dpi gives crisper small text, logos and fine 2D codes. Compare other models in our Industrial Label Printers collection or contact our team for volume pricing.
