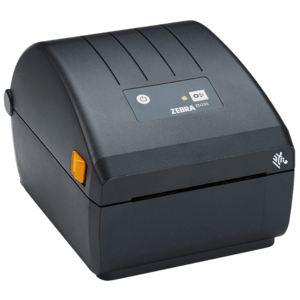

The Zebra ZD230t (ZD23042-32EG00EZ) is a 4-inch thermal transfer desktop label printer for durable product, asset, warehouse and manufacturing labels. It prints at 203 dpi across a print width of up to 104 mm at up to 152 mm/s, takes label rolls up to 127 mm in diameter and connects via USB. Its dual-capacity ribbon holder takes both compact 74 m and economical 300 m ribbons. This version has a factory-installed cutter that cuts tags, receipts and labels to length. As Zebra's 4-inch value model it combines ZPL and EPL compatibility, a dual-wall frame and optional wireless connectivity at an affordable price – a modern replacement for the GC420 and GK420.

📦 What's in the box – ZD23042-32EG00EZ

✅ Zebra ZD230t printer – Black, USB, with factory-installed cutter
✅ Power supply – external power supply, 100–240 V AC
✅ Power cords (EU + UK) – EU (Schuko) and UK (type G) – both in the box
✅ USB cable – USB A-to-B, ready to connect to your PC
✅ Empty ribbon take-up cores – for 74 m (12.7 mm) and 300 m (25.4 mm) ribbons
✅ Ribbon core adapters – for using non-Zebra 300 m ribbons
✅ Printer documentation – drivers, utilities and manuals are a free download from Zebra
❌ Labels – NOT included – choose compatible Zebra labels below
❌ Ribbon – NOT included – 74 m (12.7 mm core) or 300 m (25.4 mm core), 33–110 mm wide, ink outside

✅ Ready to print out of the box: power supply, power cords and USB cable are included – just add labels and a ribbon.

💡 Useful extras: a spare Zebra P1080383-231 ribbon core adapter set for 25.4 mm ribbon cores; Zebra 105950-035 cleaning pens for the printhead; Zebra OneCare service (Z1AE-ZD230-300, Z1AS-ZD2X-3C03, Z1AS-ZD2X-5C03) for extended cover including the printhead.

Interactive 3D Model

Drag to rotate, scroll or pinch to zoom. Official Zebra 3D viewer – open in full screen ↗

Key Features

Up to 152 mm/s (6 ips) at 203 dpi – fast enough for busy shipping and packing stations
Thermal transfer with a dual-capacity ribbon holder – 74 m ribbons (12.7 mm core) or 300 m ribbons (25.4 mm core) for fewer ribbon changes; also prints on direct thermal media
Media from 25.4 to 112 mm wide, rolls up to 127 mm in diameter on 12.7 or 25.4 mm cores (38.1 mm with an optional adapter), fanfold supported
Movable black-mark sensor and fixed gap sensor – die-cut and continuous labels, tags, receipt paper and wristbands
USB 2.0 – plug-and-print connection to a PC, no network setup needed
Factory-installed cutter – cuts tags, receipts and continuous media to the exact length
ZPL II and EPL 2 compatible – runs existing Zebra label formats (e.g. from GK420, GC420 or LP 2844 printers); Print DNA emulations for other printer languages
Simple operation: one status LED, one feed/pause button and Zebra's OpenACCESS clamshell for quick media loading
Dual-wall frame for a long service life, 128 MB flash / 128 MB SDRAM for fonts and graphics, ENERGY STAR qualified
Print DNA Basic and Link-OS Basic: Zebra Setup Utilities, free ZebraDesigner Essentials label software and Windows drivers

Ideal Applications

Product, asset and inventory labels that must last
Labels on synthetic media for chemicals, outdoor use and cold storage
Work-in-process and light-manufacturing labels
Compliance and GHS/CLP labels
Shipping and cross-docking labels

All ZD230 Versions

The highlighted row is the version you are currently viewing.

Part Number	Print Method	Interfaces	Wireless	Media Options	Color
ZD23042-D0EC00EZ	Direct thermal	USB + Ethernet	–	Tear-off	Black	View product
ZD23042-D0ED02EZ	Direct thermal	USB	Wi-Fi 5 + Bluetooth 4.1	Tear-off	Black	View product
ZD23042-D0EG00EZ	Direct thermal	USB	–	Tear-off	Black	View product
ZD23042-D1EC00EZ	Direct thermal	USB + Ethernet	–	Peeler	Black	View product
ZD23042-D1EG00EZ	Direct thermal	USB	–	Peeler	Black	View product
ZD23042-D2EG00EZ	Direct thermal	USB	–	Cutter	Black	View product
ZD23W42-D0EC00EZ	Direct thermal	USB + Ethernet	–	Tear-off	White	View product
ZD23042-30EC00EZ	Thermal transfer	USB + Ethernet	–	Tear-off	Black	View product
ZD23042-30ED02EZ	Thermal transfer	USB	Wi-Fi 5 + Bluetooth 4.1	Tear-off	Black	View product
ZD23042-30EG00EZ	Thermal transfer	USB	–	Tear-off	Black	View product
ZD23042-31EC00EZ	Thermal transfer	USB + Ethernet	–	Peeler	Black	View product
ZD23042-31EG00EZ	Thermal transfer	USB	–	Peeler	Black	View product
ZD23042-32EC00EZ	Thermal transfer	USB + Ethernet	–	Cutter	Black	View product
ZD23042-32EG00EZ (this version)	Thermal transfer	USB	–	Cutter	Black	Viewing
ZD23W42-30EC00EZ	Thermal transfer	USB + Ethernet	–	Tear-off	White	View product

Technical Specifications

Part Number	ZD23042-32EG00EZ
Model	Zebra ZD230t (ZD200 Series)
Printer Type	4-inch value desktop label printer
Print Method	Thermal transfer (also prints on direct thermal media)
Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 152 mm/s (6 in/s)
Max Print Width	104 mm (4.09 in)
Media Width	25.4–112 mm (1–4.4 in)
Label Length	Max. 991 mm (39 in)
Roll Diameter	Max. 127 mm (5 in) outer diameter
Core Size	12.7 mm (0.5 in) and 25.4 mm (1 in) standard; 38.1 mm (1.5 in) with optional adapter
Media Thickness	0.08–0.19 mm (max. in tear-off mode)
Media Type	Roll-fed or fanfold; die-cut or continuous labels with or without black mark, tag stock, continuous receipt paper, wristbands
Sensors	Movable black-mark sensor (centre to left side); fixed off-centre gap sensor
Ribbon	74 m (244 ft) on 12.7 mm (0.5 in) core, 1:1 ribbon-to-media ratio, or 300 m (984 ft) on 25.4 mm (1 in) core, 1:4 ratio; 33.8–109.2 mm wide; ink outside; adapters for non-Zebra 300 m ribbons included
Interfaces	USB 2.0
Wireless	None
Memory	128 MB Flash, 128 MB SDRAM (50 MB non-volatile / 8 MB SDRAM user available)
Printer Languages	ZPL II, EPL 2, XML; Print DNA emulations for other printer languages; Link-OS Basic
Fonts / Character Sets	16 resident expandable ZPL II bitmap fonts, 2 scalable ZPL fonts, 5 EPL2 fonts, native OpenType support, Unicode
Barcodes	1D: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13 (+2/+5), Plessey, Postnet, Standard / Industrial / Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code; 2D: Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF, Aztec
Display	Single status LED, single feed/pause button (no LCD); no real-time clock
Media Options	Factory-installed cutter
Drivers & Software	Print DNA Basic: Zebra Setup Utilities, ZebraDesigner Essentials (free), Windows drivers, printer emulations
Power Supply	Auto-detecting 100–240 V AC, 50–60 Hz (PFC) external power supply; ENERGY STAR qualified
Dimensions (W × D × H)	197 × 267 × 191 mm (standard model)
Weight	1.7 kg
Color	Black
Operating Temperature	4.4 °C to 41 °C
Storage Temperature	−40 °C to 60 °C
Humidity	10–90% non-condensing (operating)
Certifications	IEC 60950-1, EN 55022 Class B, EN 55024, EN 61000-3-2/-3-3, FCC Class B, EN 300 328, EN 301 893, CE
Warranty	24 months (Zebra ZD200 Series standard warranty)
In the Box	Zebra ZD230t printer (black, with factory-installed cutter), external power supply (100–240 V AC), EU and UK power cords, USB cable, empty 74 m (12.7 mm) and 300 m (25.4 mm) ribbon take-up cores, ribbon core adapters for non-Zebra 300 m ribbons, printer documentation – labels and ribbon NOT included

Which ZD230 is right for you? The ZD230d (direct thermal) needs no ribbon – ideal for shipping labels and receipts; the ZD230t (thermal transfer) prints durable labels and takes 74 m or 300 m ribbons. Choose USB, USB + Ethernet or USB + Wi-Fi/Bluetooth, and decide up front whether you need a peeler or a cutter – both are factory-installed. Matching Zebra labels, ribbons, spare parts and service plans are listed on this page. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
