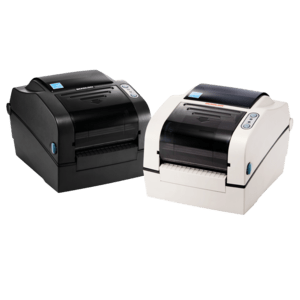

BIXOLON SLP-TX420 4-inch thermal transfer desktop label printer, dark grey (SLP-TX420BG) – angled view

BIXOLON SLP-TX420 4-inch thermal transfer desktop label printer, dark grey (SLP-TX420BG) – front view with label

BIXOLON SLP-TX420 4-inch thermal transfer desktop label printer, dark grey (SLP-TX420BG) – side view

Discover a Compact, Durable and Premium, BIXOLON SLP-TX420

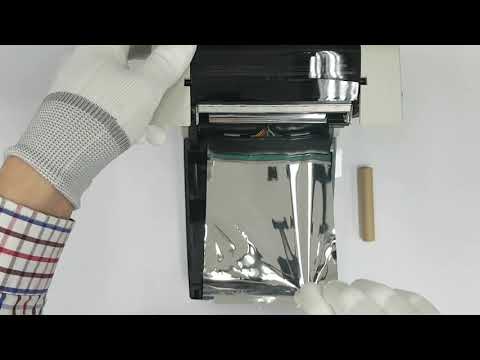

SLP-TX420_How to Install the Ribbon and Paper

BIXOLON SLP-TX420 Desktop Label Printer (SLP-TX420BG)

Name: BIXOLON SLP-TX420 Desktop Label Printer (SLP-TX420BG)
Brand: BIXOLON
SKU: bixtx420bg
Availability: OutOfStock

307,99 € +VAT

Product variants

Resolution (dpi)

203300

Wireless

BluetoothNone

Wired Interfaces

USBUSB, RS232, Ethernet USB, RS232, Parallel

Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

Available: Out Of Stock
Vendor: BIXOLON
Type: Desktop Printers
Barcode: SLP-TX420BG
Collections: BIXOLON SLP-TX420 , Desktop Label Printers , Label Printers

📄 Download Product Brochure (PDF)

BIXOLON

BIXOLON SLP-TX420 Desktop Label Printer (SLP-TX420BG)

307,99 € +VAT

Description

Description

The BIXOLON SLP-TX420 (SLP-TX420BG) is a compact 4-inch thermal-transfer desktop label printer that prints at 203 dpi and up to 178 mm/s (7 ips). Designed around space-saving 74 m ribbons on a 0.5" core, it takes label rolls up to 130 mm on 1" or 1.5" cores, speaks ZPL II and EPL via BPL-Z™/BPL-E™ emulation and connects via USB, USB host and built-in Bluetooth (MFi iAP2 certified). Power adapter and power cord are included – pair via Bluetooth and print; a USB cable is optional.

📦 What's in the box – SLP-TX420BG

✅ BIXOLON SLP-TX420 label printer – 203 dpi, USB, USB host, Bluetooth
✅ Power supply – external AC/DC power adapter, 100–240 V AC
✅ Power cord – EU plug (Schuko)
✅ Ribbon core – empty 0.5" paper core for ribbon take-up
✅ User's manual – setup and operating instructions
✅ Drivers & label software – Windows/Mac/Linux drivers, Label Artist™-II and BarTender® UltraLite – free download from BIXOLON
❌ USB cable – NOT included – order the BIXOLON USB-KAB-G (USB A-to-B, 1.8 m) or use any standard USB A-to-B printer cable
❌ Thermal-transfer ribbon – NOT included – needed for thermal-transfer printing only – direct-thermal labels print without a ribbon
❌ Labels – NOT included – order labels to suit your application (see compatible labels below)

✅ Ready for Bluetooth printing: power adapter and power cord are in the box – pair your phone, tablet or PC and print; you only need labels and a ribbon. For a wired USB connection, add the BIXOLON USB-KAB-G (USB cable not included).

💡 Useful extras: the field-installable BIXOLON CUTTER-TX400-DG auto cutter or BIXOLON PEELER-TX420-DG peeler; 74 m ribbons on a 0.5" core with the ink on the OUTSIDE, e.g. the Zebra 2300 (02300GS11007) (110 mm × 74 m); the BIXOLON LES-400G external roll holder for large rolls; BIXOLON JE39-00064H or BIXOLON SWISSPWRCRD power cords for UK or Swiss sockets; BIXOLON PCP-R200II/STD printhead cleaning pens.

Key Features

Thermal transfer and direct thermal at 203 dpi – up to 178 mm/s (7 ips), max. print width 108 mm
Space-saving ribbon system for 74 m ribbons on a 0.5" core, up to 110 mm wide, ink outside (wax, wax/resin, resin)
Media 20–110 mm wide, rolls up to 130 mm on 25.4–38.1 mm cores, fanfold; gap, black-mark, notch and continuous media – Smart Media Detection™ calibrates automatically
Built-in Bluetooth (MFi iAP2 certified) with Smart Bluetooth Auto Switch for printing from iOS, Android and Windows devices – plus USB and USB host
Intelligent Leap-over™ detects an empty label position and skips to the next label; labels up to 2,000 mm long
64 MB SDRAM and 128 MB Flash with real-time clock; SLCS™, BPL-Z™ (ZPL II) and BPL-E™ (EPL) emulation as a drop-in replacement
Field-installable options: auto cutter, peeler and external paper supply
Label Artist™-II and BarTender® UltraLite, Windows (Europlus/Seagull), Linux/Mac CUPS and OPOS/JPOS drivers, SDKs for Android, iOS, Windows, Linux, Chrome and Xamarin, XPM™/XCM™ remote management
ENERGY STAR® certified, compact 200 × 252 × 173 mm footprint

Ideal Applications

Manufacturing – durable product, compliance and rating-plate labels
Chemicals – GHS/CLP and hazardous goods labels on synthetic media
Warehousing and logistics – pallet, shelf and asset labels
Retail – price tags and long-life shelf labels
Healthcare and laboratories – sample and specimen labels

All SLP-TX420 Series Versions

The highlighted row is the version you are currently viewing.

Part Number	Model	Resolution	Print Speed	Interfaces	Wireless
SLP-TX420G/BEG	SLP-TX420	203 dpi	178 mm/s	USB, RS-232, Parallel	—	View product
SLP-TX420EG/BEG	SLP-TX420	203 dpi	178 mm/s	USB, USB host, RS-232, Ethernet	—	View product
SLP-TX420BG (this version)	SLP-TX420	203 dpi	178 mm/s	USB, USB host	Bluetooth	Viewing
SLP-TX423G	SLP-TX423	300 dpi	127 mm/s	USB, RS-232, Parallel	—	View product
SLP-TX423EG	SLP-TX423	300 dpi	127 mm/s	USB, USB host, RS-232, Ethernet	—	View product
SLP-TX423BG	SLP-TX423	300 dpi	127 mm/s	USB, USB host	Bluetooth	View product

Technical Specifications

Part Number	SLP-TX420BG
Model	BIXOLON SLP-TX420 (SLP-TX420 Series)
Printer Type	4-inch desktop thermal transfer label printer
Print Method	Thermal transfer and direct thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 178 mm/s (7 ips)
Max Print Width	108 mm (4.25")
Max Print Length	2,000 mm (78.7")
Media Width	20–110 mm (0.79"–4.33"), incl. liner
Media Thickness	0.06–0.20 mm
Roll Diameter	Up to 130 mm (5.1") OD
Core Size	25.4–38.1 mm (1"–1.5")
Media Types	Gap (die-cut), black mark, notch, continuous, fanfold
Sensors	Transmissive gap sensor, reflective black-mark sensor (adjustable), ribbon-end sensor, head-open sensor; Smart Media Detection™
Ribbon	Wax, wax/resin, resin; ink OUTSIDE; up to 110 mm wide; up to 74 m on 0.5" (12.7 mm) core
Interfaces	USB (Type B), USB host
Wireless	Bluetooth (built-in, MFi iAP2 certified, Smart Bluetooth Auto Switch); optional WLAN USB dongle via USB host
Memory	64 MB SDRAM, 128 MB Flash
Real-Time Clock	Supported
Printer Languages	SLCS™, BPL-Z™ (ZPL II compatible), BPL-E™ (EPL compatible)
Fonts / Character Sets	Bitmap fonts (10 SLCS, 16 BPL-Z, 5 BPL-E), scalable fonts (1 SLCS, 1 BPL-Z), 23 code pages, Unicode (UTF-8, UTF-16LE/BE)
Barcodes	1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8/13, Industrial/Interleaved/Standard 2 of 5, LOGMARS, MSI, Plessey, Postnet, GS1 DataBar, UPC-A/E, UPC/EAN extensions, IMB; 2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39
Display	No LCD – status LEDs and function keys
Media Options	Tear-off (standard); auto cutter and peeler (optional)
Options	Auto cutter, peeler, external paper supply, WLAN USB dongle
Drivers & Software	Windows driver (Europlus / Seagull), Linux/Mac CUPS, virtual COM USB/Ethernet, utility program, OPOS/JPOS driver, BarTender® UltraLite for BIXOLON, Label Artist™-II; Android/iOS/Windows/Linux/Chrome/Xamarin SDKs; Label Artist™ Mobile, mPrint; XPM™/XCM™ device management
Power Supply	External AC/DC power adapter, 100–240 V AC, 50/60 Hz; ENERGY STAR® certified
Dimensions (W × D × H)	200 × 252 × 173 mm
Weight	2.35 kg
Color	Dark grey
Operating Temperature	5–40 °C
Storage Temperature	−20–60 °C
Humidity	Operating 10–80% RH, storage 10–90% RH (non-condensing)
Warranty	36 months
In the Box	BIXOLON SLP-TX420 printer (203 dpi, USB, USB host, Bluetooth), external AC/DC power adapter (100–240 V AC), power cord (EU plug), empty 0.5" ribbon core, user's manual; drivers and Label Artist-II / BarTender UltraLite software as free download – USB cable (optional, Bluetooth needs no cable), labels and ribbon NOT included

Printing high volumes? The BIXOLON SLP-TX400 (SLP-TX400EG) from the SLP-TX400 Series takes 300 m ribbons for fewer ribbon changes. All SLP-TX420 versions are listed above. Compare other models in our Desktop Label Printers collection or contact our team for volume pricing.
