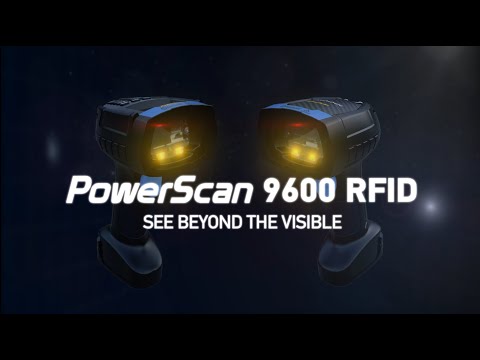

Datalogic PowerScan 9600 RFID Barcode Scanner (PBT9600-SRRFK10EU)

The Datalogic PowerScan PBT9600 RFID is a rugged cordless hybrid reader from Datalogic's PowerScan 9600 RFID series: it reads and writes UHF RFID tags (EPC Class 1 Gen 2 / ISO 18000-6C, up to 1 m) and scans 1D, 2D, stacked and postal barcodes with a 2D imager – one device for whichever identification technology your goods carry. Its Bluetooth® 5.0 radio (Class 1, up to 100 m in open air) links it to a PowerScan 9600 Bluetooth base station or directly to a Bluetooth-enabled PC, tablet or mobile computer, and it charges wirelessly (inductively) in the base, so there are no charging contacts to wear out. The removable 3350 mAh battery lasts for up to 80,000 barcode reads or up to 40,000 RFID reads per charge, the scanner withstands 50 drops from 2.5 m, is sealed to IP65 and IP67 and comes with a 3-year Datalogic warranty. This version, PBT9600-SRRFK10EU, has Standard Range (SR) optics – the all-round choice for everyday 1D and 2D barcodes up to about 1.75 m.

It is the EU version – its RFID module operates in the European UHF band (865–868 MHz). It is the model without a display – a straightforward trigger-only scanner. It is supplied as a complete USB kit with the BC9630-BT base station/charger, a 2 m USB cable and a power supply (EU power cord) – ready to connect and scan.

Key Features

• UHF RFID and barcodes in one device – reads and writes EPC Class 1 Gen 2 (ISO 18000-6C) UHF tags at up to 1 m in the European 865–868 MHz band, with output power configurable up to 20 dBm, and scans 1D, 2D, stacked and postal barcodes with the same scanner.
• Bluetooth® 5.0 wireless technology – Class 1 radio with a range of up to 100 m in open air to the base station; pairs with a BC96x0-BT base or directly with any Bluetooth PC, tablet or mobile computer using the HID or SPP profile, with data encryption and scanner authentication.
• Standard Range (SR) optics – a 1280 × 800 sensor with a 38° field of view reads everyday 1D and 2D barcodes from close up to about 1.75 m (40 mil Code 128) and codes down to 3 mil.
• Simple trigger-only operation – the version without display or keypad for pure scanning tasks; a model with an OLED display and 16-key keypad is also available.
• Wireless charging and long battery life – inductive charging without contacts or pins that could get dirty, bent or broken; the removable 3350 mAh Li-ion battery lasts for up to 80,000 barcode reads or up to 40,000 RFID reads per charge and charges to 95% in about 2.5 hours.
• Built for tough environments – withstands 50 drops from 2.5 m onto concrete (2.0 m at −20 °C), and the trigger is rated for 10 million pulls.
• IP65 and IP67 sealing – dust-tight and protected against water jets and temporary immersion, so the scanner can be cleaned and used in wet, dusty and outdoor areas.
• Clear good-read feedback – Datalogic 3GL™ (Three Green Lights), the Green Spot projected onto the code, a loud adjustable beeper and vibration confirm every read, even in noisy environments.
• Motionix™ motion sensing – the scanner senses when it is picked up and is instantly ready to read.
• Modular base station – the BC9600-series base/charger takes plug-in connection modules for USB and RS-232 (CM9630/CM9631) or Ethernet, EtherNet/IP and PROFINET (CM9680/CM9681); free Datalogic Aladdin configuration tool, OPOS/JavaPOS utilities and EASEOFCARE service plans.

Ideal Applications

• General industrial scanning – everyday 1D and 2D labels at short to medium distances
• Retail – RFID inventory management and stock counts, checkout and self-checkout
• Transport and logistics – receiving, picking, inbound/outbound checks and order fulfilment with RFID tags and barcodes
• Manufacturing – work-in-process tracking, traceability and quality control of tagged parts, containers and tools
• Healthcare – inventory management, traceability and validation of tagged supplies and equipment
• Mixed environments – one reader for barcode-labelled and RFID-tagged items, ideal for a step-by-step move to RFID
• Loading docks, cold stores and outdoor areas – IP65/IP67 protection against dust and water

All PowerScan 9600 RFID Versions

The highlighted row is the version you are currently viewing.

Technical Specifications

How to read the part numbers: SR stands for Standard Range and DC for Document Capture (colour sensor) optics; DK models have a display with a 16-key keypad; RF marks the UHF RFID module and EU the European RFID band 865–868 MHz (US versions use 902–928 MHz). Versions with K10 are USB kits with the BC9630-BT base station, CAB-552 USB cable, power supply and EU power cord – note that Datalogic writes the part number of the display/keypad kit as PBT9600-DKDCRK10EU, without the F. Versions without K10 are the scanner with battery only. Compare other models in our Cordless / Wireless Barcode Scanners collection, browse our RFID Handheld Terminals or contact our team for volume pricing.
