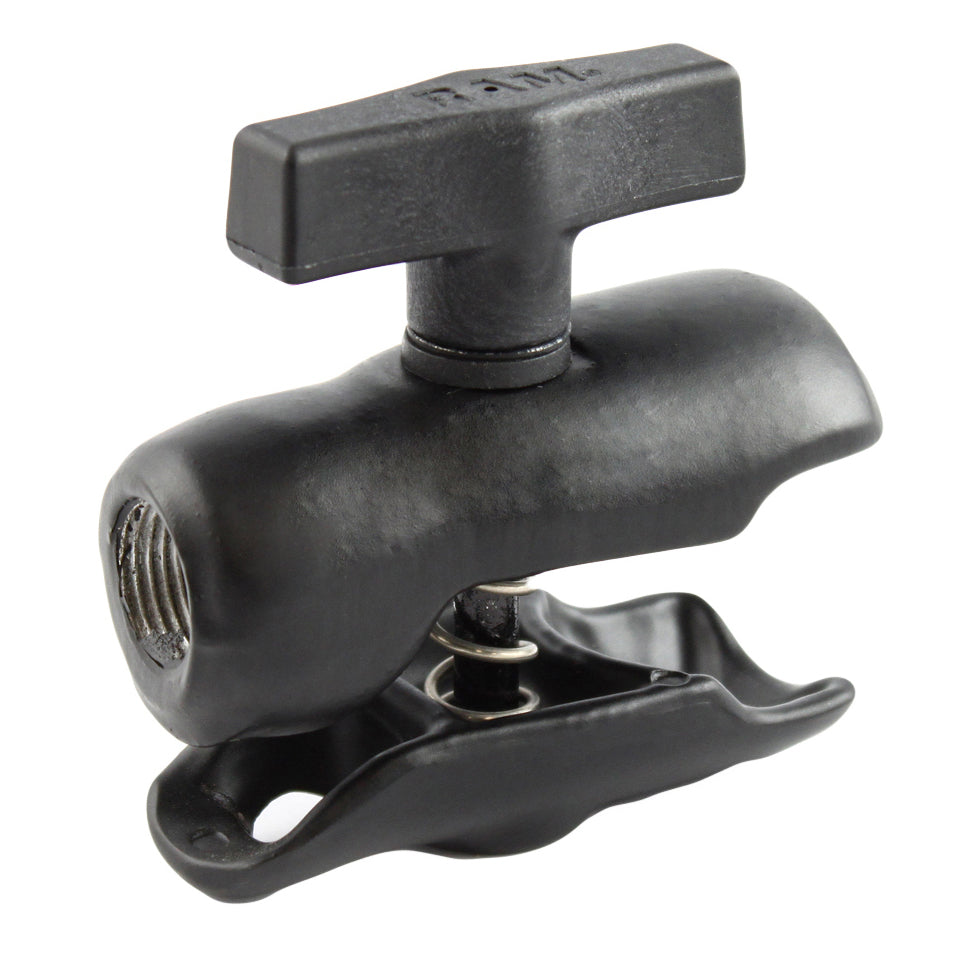

RAM Mounts Single Socket Arm with 1/2" NPT Female Thread, C-Size (RAM-200-1U)

RAM Mounts Single Socket Arm with 1/2" NPT Female Thread, C-Size (RAM-200-1U) combines a single socket for RAM C-size (1.5") balls with a 1/2" NPT female thread. It screws onto any 1/2" NPT male thread, including the RAM-PA82xx series of rigid aluminium tubes, so a pole or pedestal can end in a RAM socket that grips any C-size ball base, adapter or device holder. The socket is tightened with the supplied knob; the part is made of marine-grade aluminium and holds up to 1.8 kg (4 lb) in standard use.

Key Features

• 1/2" NPT female thread – fits any 1/2" NPT male thread, incl. RAM-PA82xx rigid tubes
• C-size (1.5") socket – grips any RAM C-size ball base, adapter or device holder
• Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
• Material – marine-grade aluminium

Compatibility

• All RAM C-size (1.5") ball bases, ball adapters and device holders
• Pipes and fittings with a 1/2" NPT male thread
• RAM-PA82xx rigid aluminium tubes

Technical Specifications
