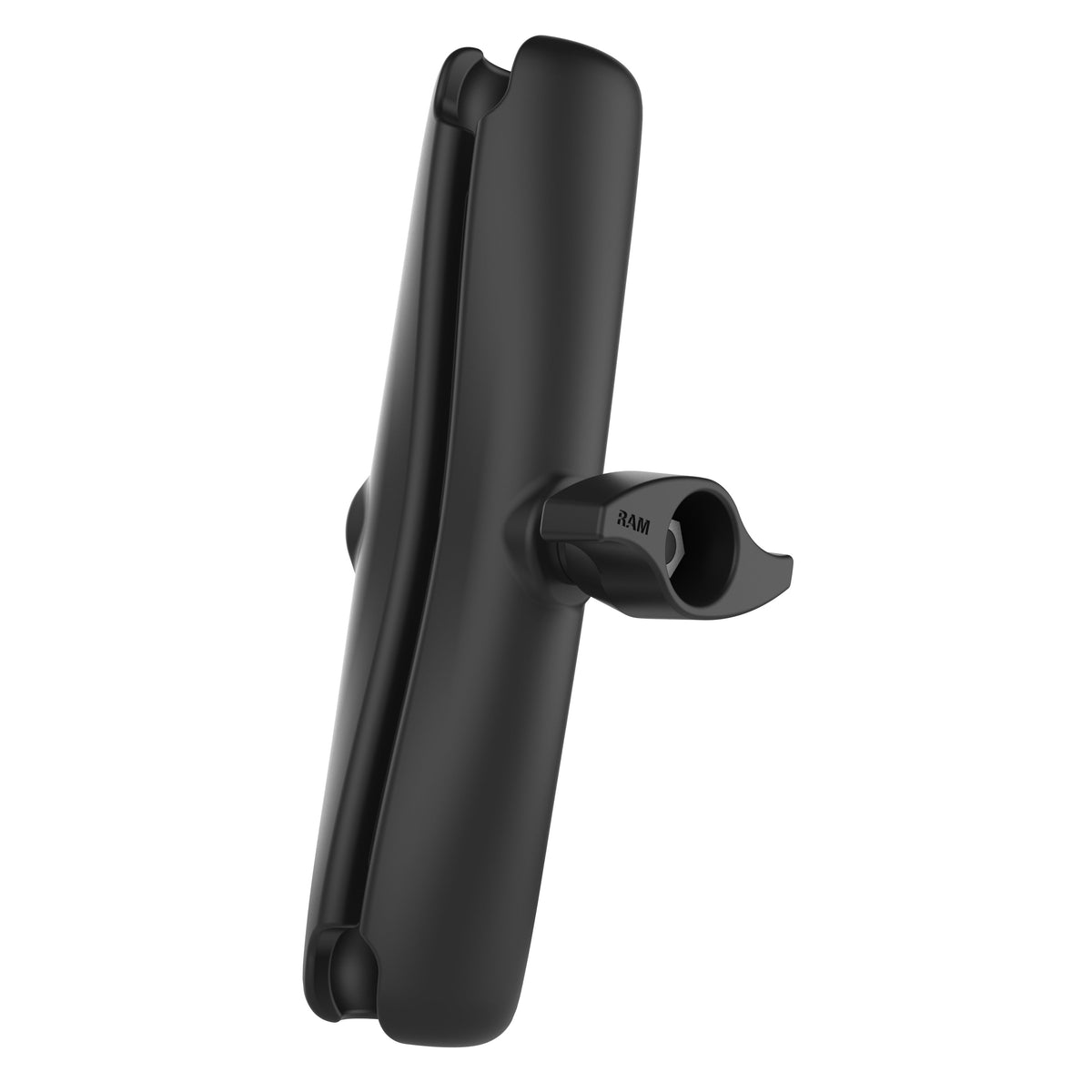

RAM Mounts C-size long double socket arm with metal knob (232 mm) RAM-201MU-D – product photo
RAM Mounts C-size long double socket arm with metal knob (232 mm) RAM-201MU-D – product photo
RAM Mounts C-size long double socket arm with metal knob (232 mm) RAM-201MU-D – product photo
RAM Mounts C-size long double socket arm with metal knob (232 mm) RAM-201MU-D – product photo

RAM Mounts Double Socket Arm with Metal Knob, C-Size, Long, 232 mm (RAM-201MU-D)

77,75 € +VAT
Mount type
Composite double socket armDouble socket armDouble socket arm, metal knob
Locking
Key-lockingNon-locking
Arm length
140 mm145 mm232 mm90 mm
Notify me when in stock

Free Shipping over 250 €. Usually delivered within 3–5 working days.

0% VAT for EU/EEA companies (excl. Estonia). Enter a valid VAT number to automatically generate a 0% VAT invoice.

  • Available: Out Of Stock
  • Vendor: RAM MOUNT
  • Type: Mounting solutions
  • Barcode: RAM-201MU-D
RAM Mounts C-size long double socket arm with metal knob (232 mm) RAM-201MU-D – product photo
RAM MOUNT
RAM Mounts Double Socket Arm with Metal Knob, C-Size, Long, 232 mm (RAM-201MU-D)
77,75 € +VAT

RAM Mounts Double Socket Arm with Metal Knob, C-Size, Long, 232 mm (RAM-201MU-D) is the connecting link of the RAM ball-and-socket system: it joins two RAM C-size (1.5") ball components – typically a ball base fixed in a vehicle, on a forklift or at a workstation and a device holder or cradle with a matching ball. With 231.8 mm (9.125") overall and 203.2 mm (8") between the sockets, the long arm gives the mount extra reach. A spring inside the arm keeps the sockets open for easy fitting, and turning the knob clamps both ball joints firmly at the angle you need. This version is fitted with a metal knob.

📦 What's in the box – RAM-201MU-D

  • Double socket arm – C-size (1.5"), long, 231.8 mm (9.125") overall
  • Metal knob – for tightening the arm

💡 You might also consider a C-size round ball base (AMPS) or a diamond ball base for the mounting surface and a key-lock knob to protect the arm against theft.

View accessories →

Key Features

  • Length – 231.8 mm (9.125") overall, 203.2 mm (8") socket to socket
  • C-size (1.5") sockets – fit any RAM C-size ball base, adapter or device holder, with near-infinite adjustment
  • Load rating – up to 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
  • Material – powder-coated marine-grade aluminium
  • Metal knob – for tightening both ball joints
  • Lifetime warranty – backed by RAM Mounts

Compatibility

  • All RAM C-size (1.5") ball bases, ball adapters and device holders

Technical Specifications

Part Number RAM-201MU-D
Product Type Double socket arm, long
Connection 2 × C-size (1.5") sockets
Load Capacity 1.8 kg (4 lb) standard use; 1.4 kg (3 lb) heavy-duty use
Material Powder-coated marine-grade aluminium
Dimensions Overall length 231.8 mm (9.125"); socket to socket 203.2 mm (8")
Weight 0.82 kg (1.8 lb)
Warranty Lifetime warranty (RAM Mounts)
In the Box Double socket arm, metal knob for tightening the arm

More RAM ball bases, socket arms and mounting kits are waiting in our Mobile Terminal Accessories collection. Planning a vehicle or forklift installation, or ordering for a whole fleet? Contact us for project support and volume pricing.

Available Versions

Part NumberMount typeLockingArm lengthPrice
RAM Mounts Double Socket Arm with Key-Lock Knob, C-Size, Medium, 145 mm (RAM-201LU) RAM-201LUDouble socket armKey-locking145 mm65,03 €+VATOut of Stock View
RAM Mounts Double Socket Arm with Metal Knob, C-Size, Long, 232 mm (RAM-201MU-D) RAM-201MU-DViewingDouble socket arm, metal knobNon-locking232 mm77,75 €+VATOut of Stock
RAM Mounts Double Socket Arm, C-Size, Medium, 145 mm (RAM-201U) RAM-201UDouble socket armNon-locking145 mm29,32 €+VATIn Stock
RAM Mounts Double Socket Arm, C-Size, Short, 90 mm (RAM-201U-B) RAM-201U-BDouble socket armNon-locking90 mm26,91 €+VATIn Stock
RAM Mounts Double Socket Arm, C-Size, Long, 232 mm (RAM-201U-D) RAM-201U-DDouble socket armNon-locking232 mm54,73 €+VATIn Stock
RAM Mounts Composite Double Socket Arm, C-Size, Medium, 140 mm (RAP-201U) RAP-201UComposite double socket armNon-locking140 mm25,38 €+VATOut of Stock View
